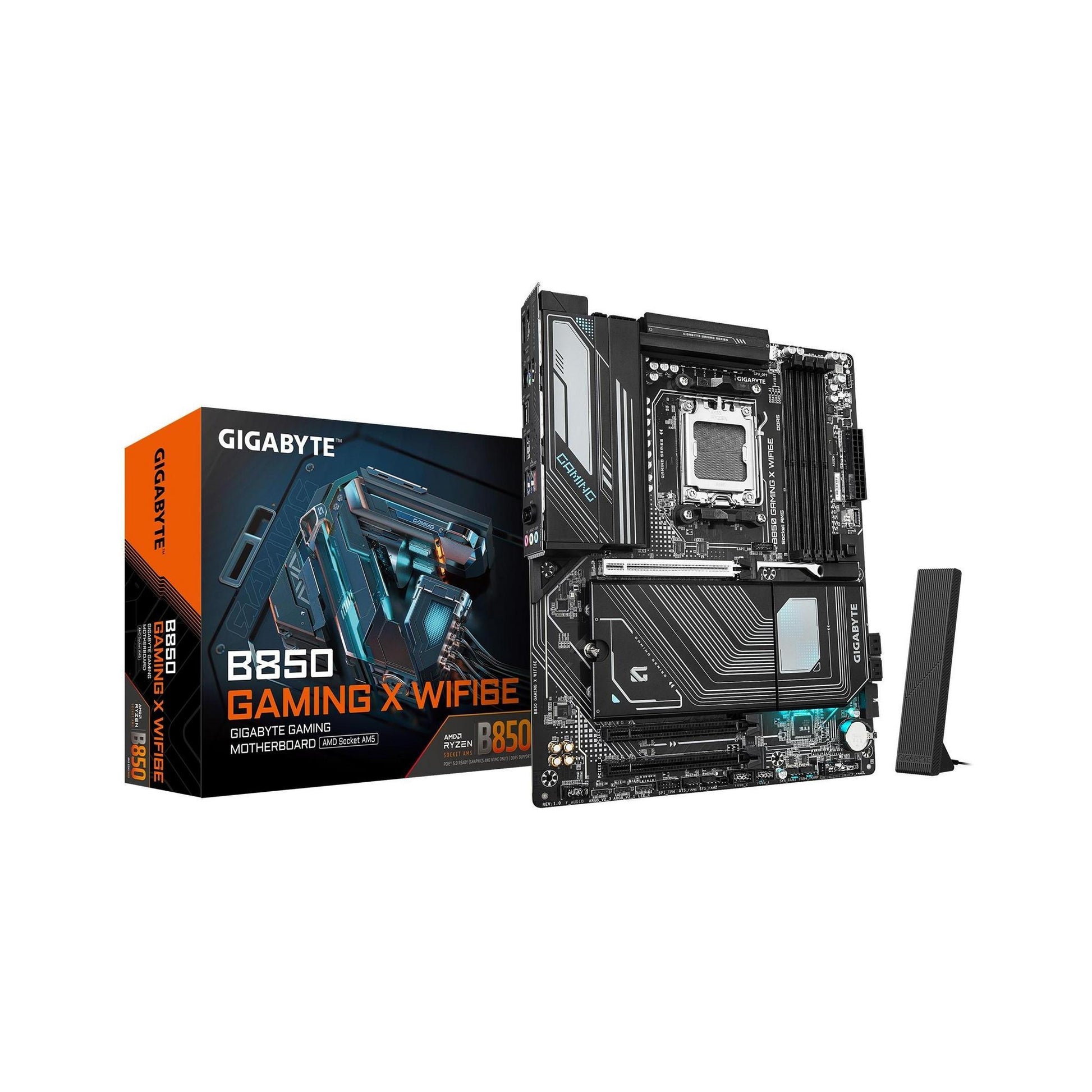

Gigabyte B850 GAMING X WiFi6E AMD AM5 4x DDR5 3x M.2 ATX Motherboard

The Gigabyte B850 GAMING X WiFi6E is an advanced motherboard designed for AMD AM5 sockets, offering robust performance and versatility with its support for DDR5 memory up to 256 GB and multiple storage options.

Display

• 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR)
• 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz (DisplayPort 1.4)

Performance

• Supports AMD Ryzen™ 9000, 7000, and 8000 series processors
• Up to 256 GB of DDR5 memory (4 x DDR5 DIMM sockets)
• Dual channel memory architecture with support for non-ECC Un-buffered DIMMs
• Supports AMD EXPO™ and XMP memory modules

Connectivity

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Realtek® Wi-Fi 6E RTL8852CE module

Expansion Slots

• 1 x PCI Express x16 slot supporting PCIe 5.0/x4/x2 (depending on CPU model)
• 2 x PCI Express x1 slots supporting PCIe 3.0 and running at x1

Storage

• 3 x M.2 connectors for NVMe SSDs, supporting PCIe 5.0/4.0/x4/x2 (depending on CPU model)
• 4 x SATA 6Gb/s connectors with RAID support (RAID 5 available only on Ryzen™ 9000 series processors)

USB Ports

• CPU: USB Type-C® Gen 2, USB 3.2 Gen 2 Type-A, and USB 3.2 Gen 1 ports
• Chipset: USB Type-C® Gen 2x2, 4 x USB 3.2 Gen 1 (2 on back panel), 4 x USB 2.0/1.1 (internal headers)
