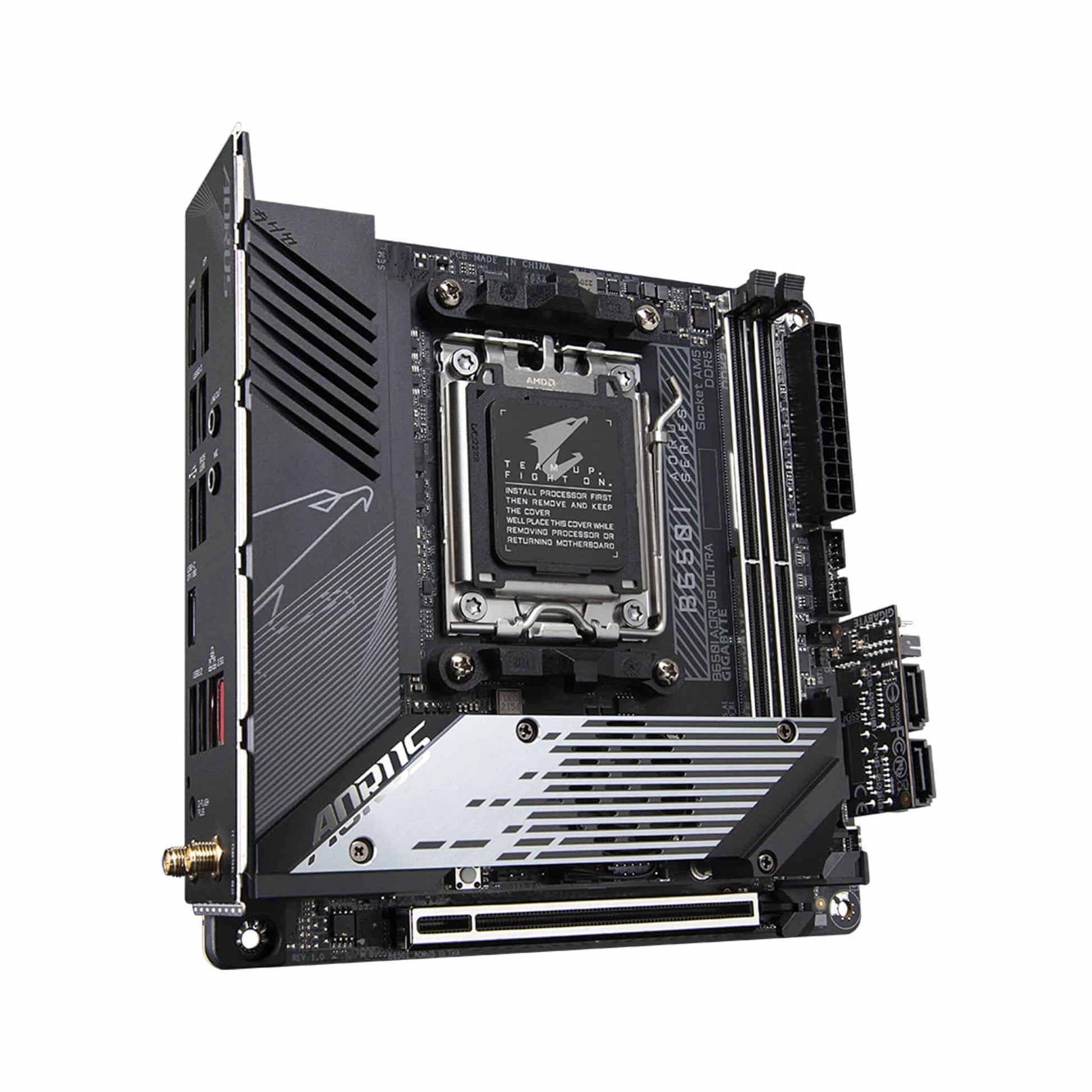

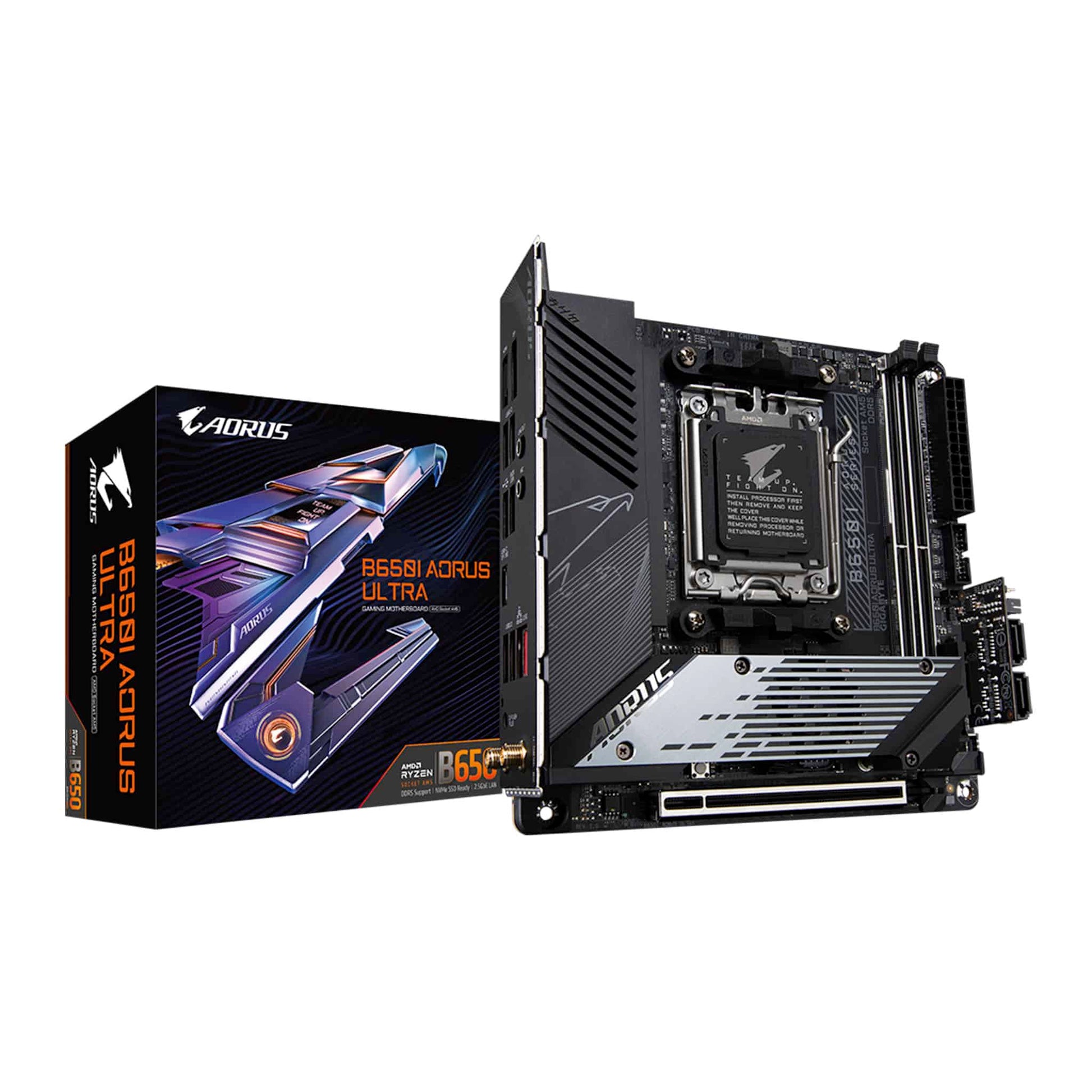

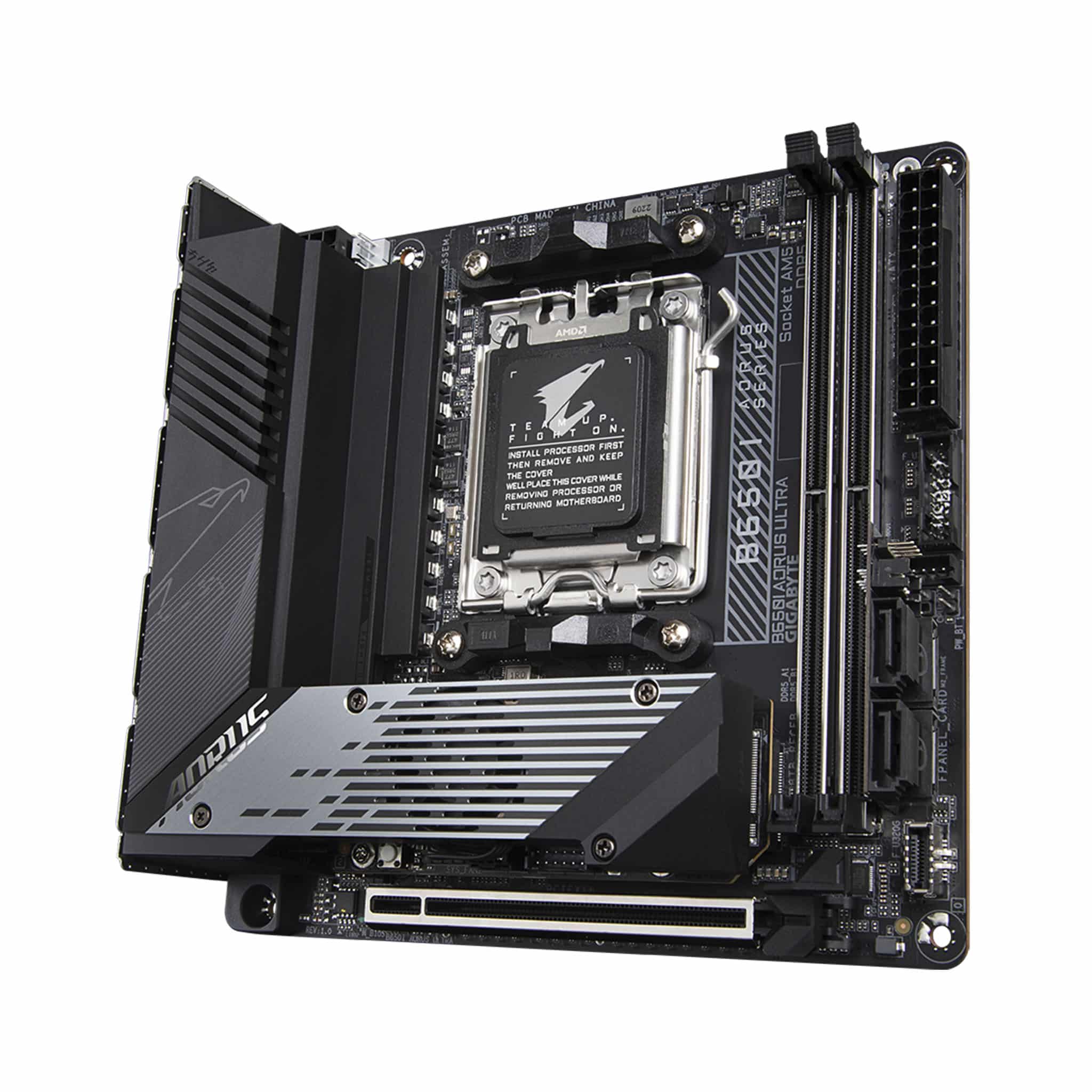

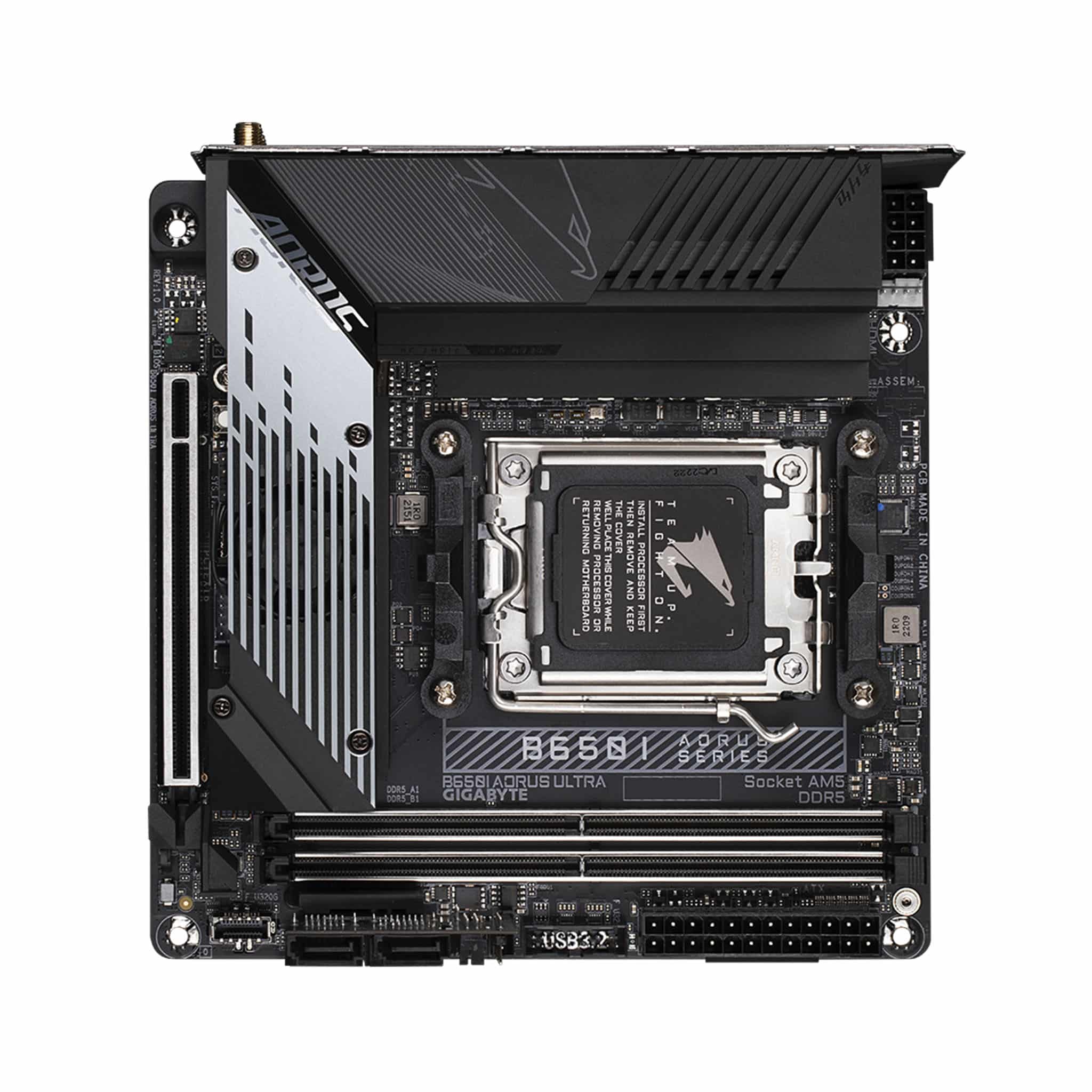

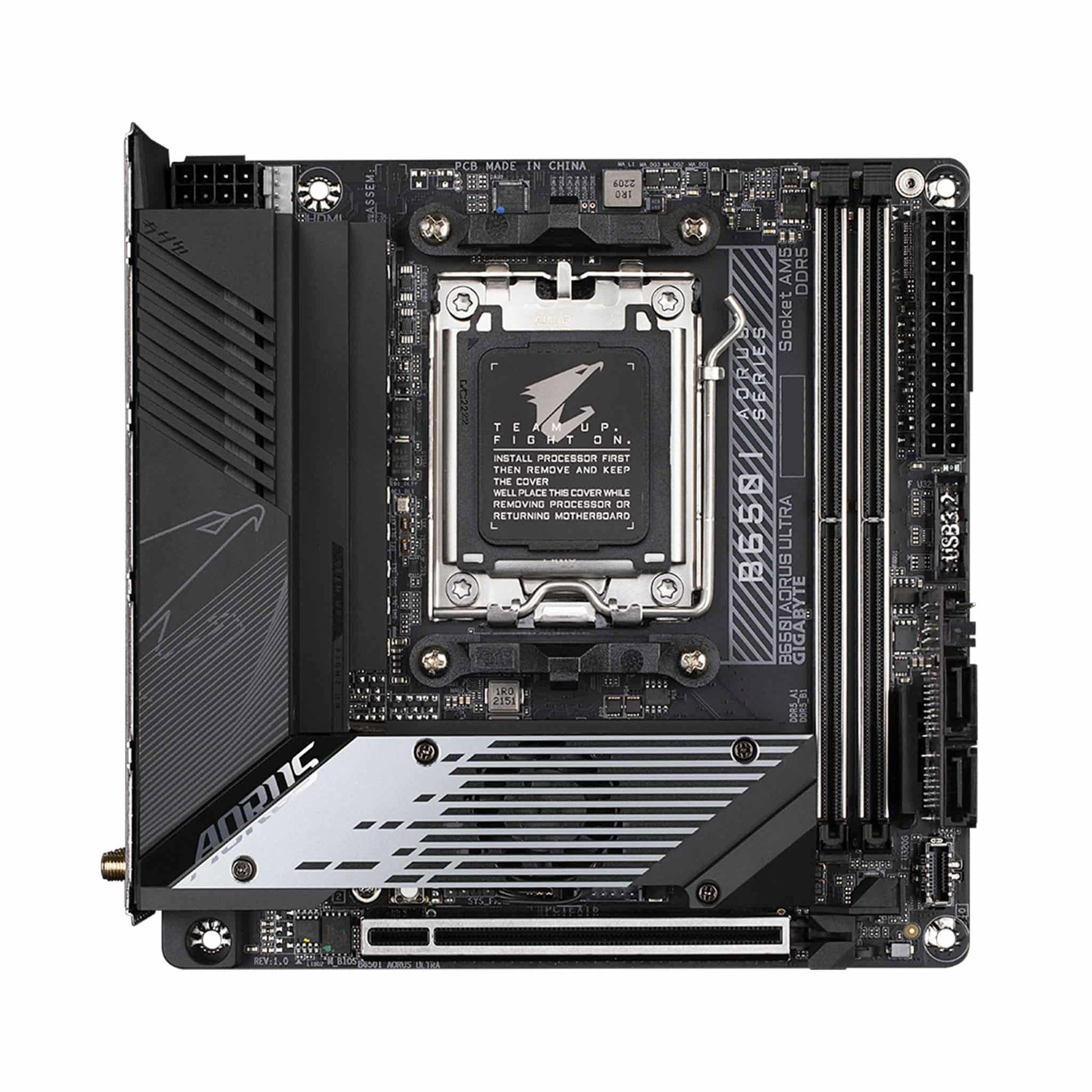

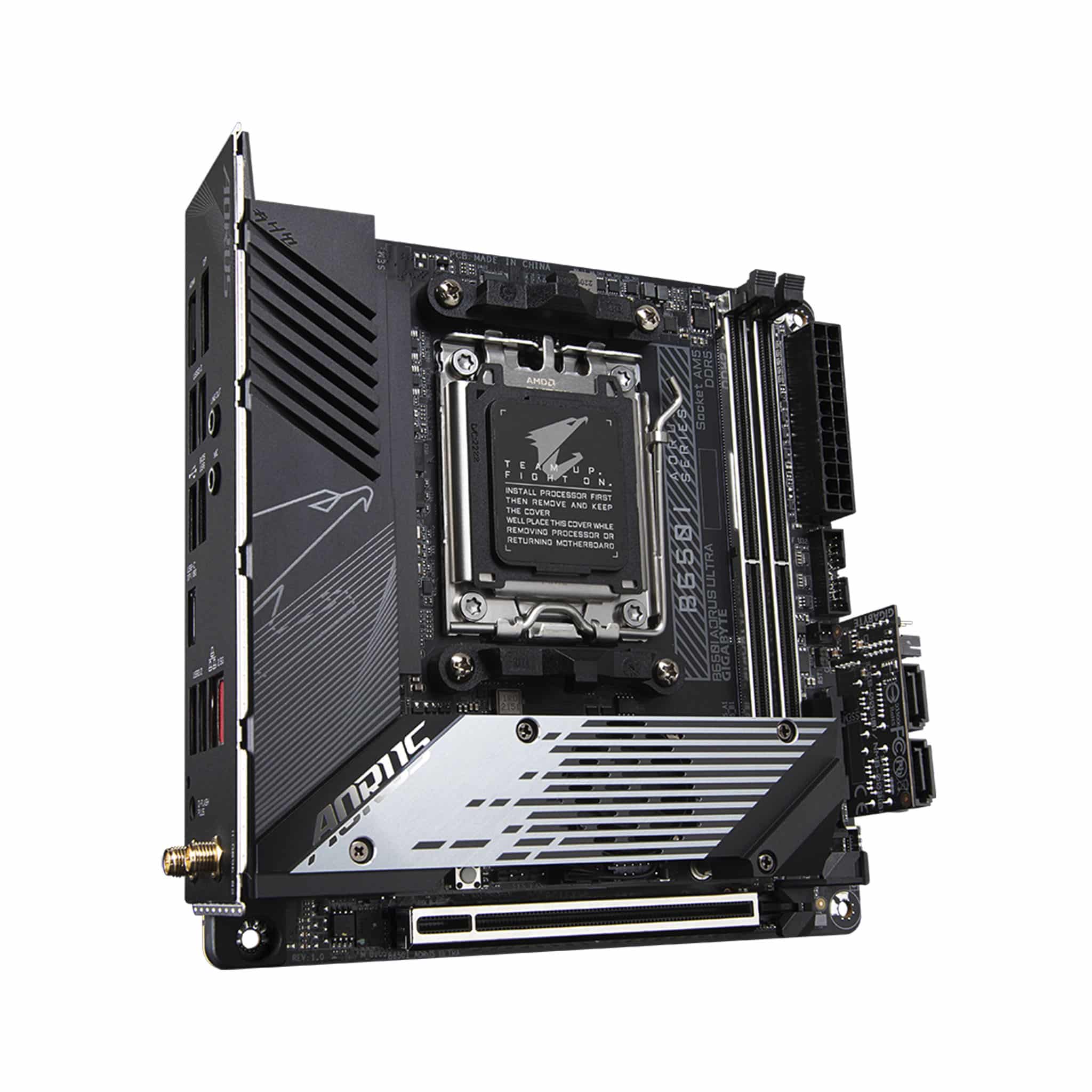

Gigabyte B650I AORUS ULTRA DDR5 AM5 microATX Motherboard

A NEW ERA IS COMING DAYBREAK HOUR B650I AORUS ULTR

Unparalleled Performance

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Direct Digital VRM Design

To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.

PCIe 5.0 x4 M.2 Connector

The PCIe 5.0 x4 M.2 Slot supports the latest M.2 2280 form factor.

DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond*

AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.

Outstanding Thermal Design

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Thermal Design

• Fully Covered Thermal Design
• M.2 Thermal Guard III with Active Cooling
• 12-Layer & 2X Copper PCB Coating
• Hybrid PCH & M.2 Heatsink
• NanoCarbon Baseplate

NanoCarbon Baseplate

1. Base plate made of aluminum instead of traditional iron ensures 3X thermal conductivity.
2. A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to enhance thermal radiation capability.
3. Transfer heat from the back side PCB to the base plate so the NanoCarbon base plate can dissipate heat passively.
4. Effectively lowers backside PWM component temperature by 10%.

NanoCarbon Coating

This specialized nanostructure of carbon molecules has extraordinary thermal conductivity.

Thermal Guard III

M.2 Thermal Guard III with Active Cooling

M.2 Thermal Guard III with Active Cooling constructed with 6X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of M.2 SSDs may cause, especially under heavy workload. The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

• High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users' specified temperature point

Connectivity

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Smart Antenna

2X signal strength compared to traditional antenna design.
AORUS Antenna with smart antenna function for the best WIFI signal transmitting.

New 6GHz Signal Design

All new antenna supported 802.11ax Wi-Fi 6E 2.4GHz, 5GHz and 6GHz.

Multiple Angle & Magnetic Base

Multiple angle tilt and magnetic base for the best signal strength direction and location.

Wi-Fi 6E bring you the Ultimate VR experience!

Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.

Wi-Fi 6E compared to Wi-Fi 5 provide:

• 40% faster speed for smoother gaming/streaming experience
• 50% higher resolution for video game related content
• Better battery life for VR devices

Wi-Fi 6E Advantage

Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.

Intel 2.5GbE LAN - First adopter on 2.5GbE LAN onboard

2X Faster than ever

• Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
• Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Front USB-C® 20Gb/s - Connecting the Future - Front USB 3.2 Gen 2x2 Type-C®

Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.

USB-C® 10Gb/s with DP Alt Mode- Rear USB 3.2 Gen 2 Type-C® with DisplayPort™ Alternate Mode

DisplayPort™ over USB Type-C® enables the delivery of full DisplayPort A/V performance (driving monitor resolutions of 4K and beyond), SuperSpeed USB (USB 3.2 Gen 2) 10Gbps data transition and power delivery with the convenience of reversible plug orientation and cable direction.

Hi-Fi Audio

True High-Fidelity Music (Realtek ALC4080)

Paired with Realtek's latest ALC4080 Codec, playback for surround sound audio and DSD enabled music are easier than ever.

DTS :X® Ultra

Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs.

DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.

Learn more about the immersive gaming sound experience powered by DTS Sound Unbound at https://dts.com/sound-unbound
*DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade your Windows 10 OS to Win10 Build 18898 or later versions.

Personalization

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

UEFI BIOS

Friendly User Interface

The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

GIGABYTE Control Center

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

• Unified software platform for all Gigabyte supported products
• Intuitive user interface for an eased experience
• Modularized control components only for installed hardware
• Auto update function to keep system up to date and support future products

Multi-Key

A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.

• RGB Switch
  Turn off all lighting effect on motherboard.
• Direct-To-BIOS
  Boot into BIOS menu directly without pressing any keyboard button.
• Safe Mode
  Boot into BIOS safe mode to change specific option without losing other BIOS settings.

Ultra Durable

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

DIY Friendly

EZ-Latch

With GIGABYTE EZ-Latch, you can DIY your PC in no time, quick and easy.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
