ASUS
ASUS ROG STRIX B850-G GAMING WIFI AM5 DDR5 256GB 4x M.2 PCIe 5.0 WiFi 7
Available in stock (30)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | Socket AM5 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | Micro-ATX |
|---|---|
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | M.2, PCIe |
|---|
Ports & Connectivity
| USB Standard | USB 3.2 gen 1x1, Other |
|---|---|
| USB Connector Type | USB Type-A, USB Type-C |
Dimensions
| Length | 10 mm |
|---|---|
| Width | 10 mm |
| Height | 10 mm |
Other
| Series | ROG STRIX B850-G GAMING WIFI |
|---|---|
| Colour | White |
Product Details
Product Details

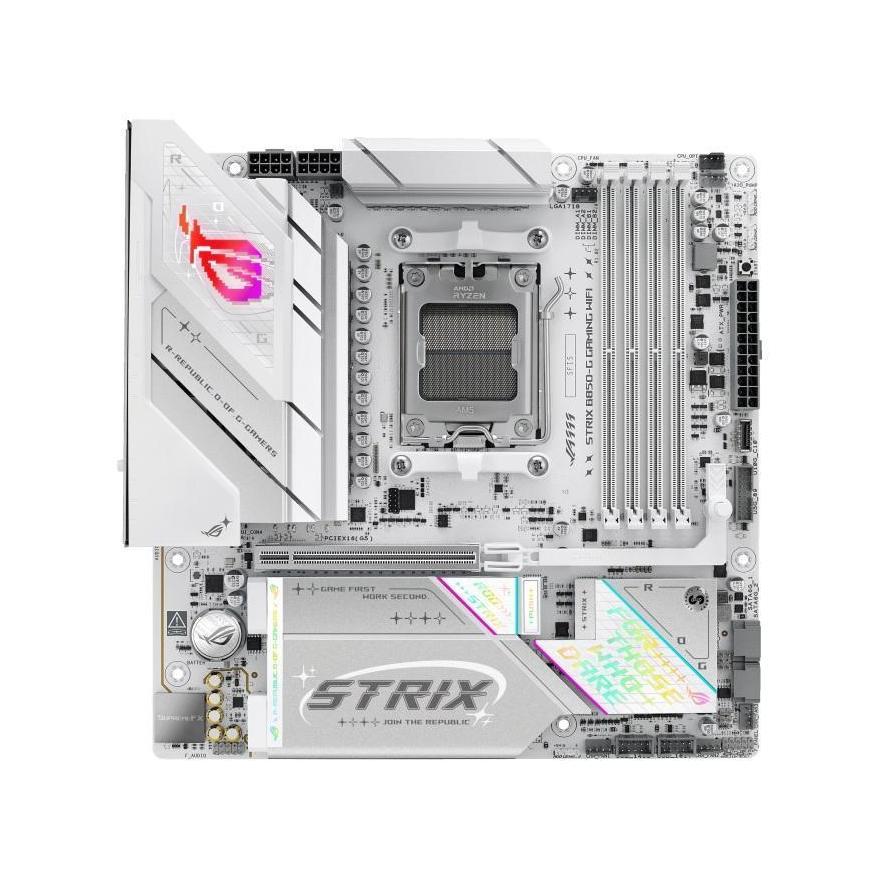

The ASUS ROG Strix B850-G Gaming WiFi is designed for next-generation performance with support for AMD Ryzen™ 9000 Series processors and DDR5 memory. This motherboard features a sleek white PCB and includes cutting-edge connectivity options such as PCIe® 5.0, USB 20Gbps Type-C®, and Wi-Fi 7.
Display
- 1 x DisplayPort
- 1 x HDMI™ port
Performance
- CPU: AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
- Memory: 4 x DIMM slots, max. 256GB DDR5 (supports up to 8000+MT/s with Ryzen™ 9000, 8000, and 7000 Series CPUs)
- Expansion Slots: 1 x PCIe 5.0 x16 slot
- Storage: Total of 4 x M.2 slots (varies by CPU type) and 2 x SATA 6Gb/s ports
- Ethernet: 1 x Intel® 2.5Gb Ethernet
- Wireless: Wi-Fi 7 (2x2, supports 2.4/5/6GHz frequency band)
- Bluetooth: v5.4
Connectivity
- Rear USB: 1 x USB 20Gbps port (USB Type-C®), 3 x USB 10Gbps ports, 4 x USB 5Gbps ports, 2 x USB 2.0 ports
- Front USB: 1 x USB 10Gbps connector (USB Type-C®), 1 x USB 5Gbps header, 2 x USB 2.0 headers
BIOS and OS Support
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, PXE
- Operating System: Windows 11
Form Factor
micro-ATX (9.6 inch x 9.6 inch or 24.4 cm x 24.4 cm)
