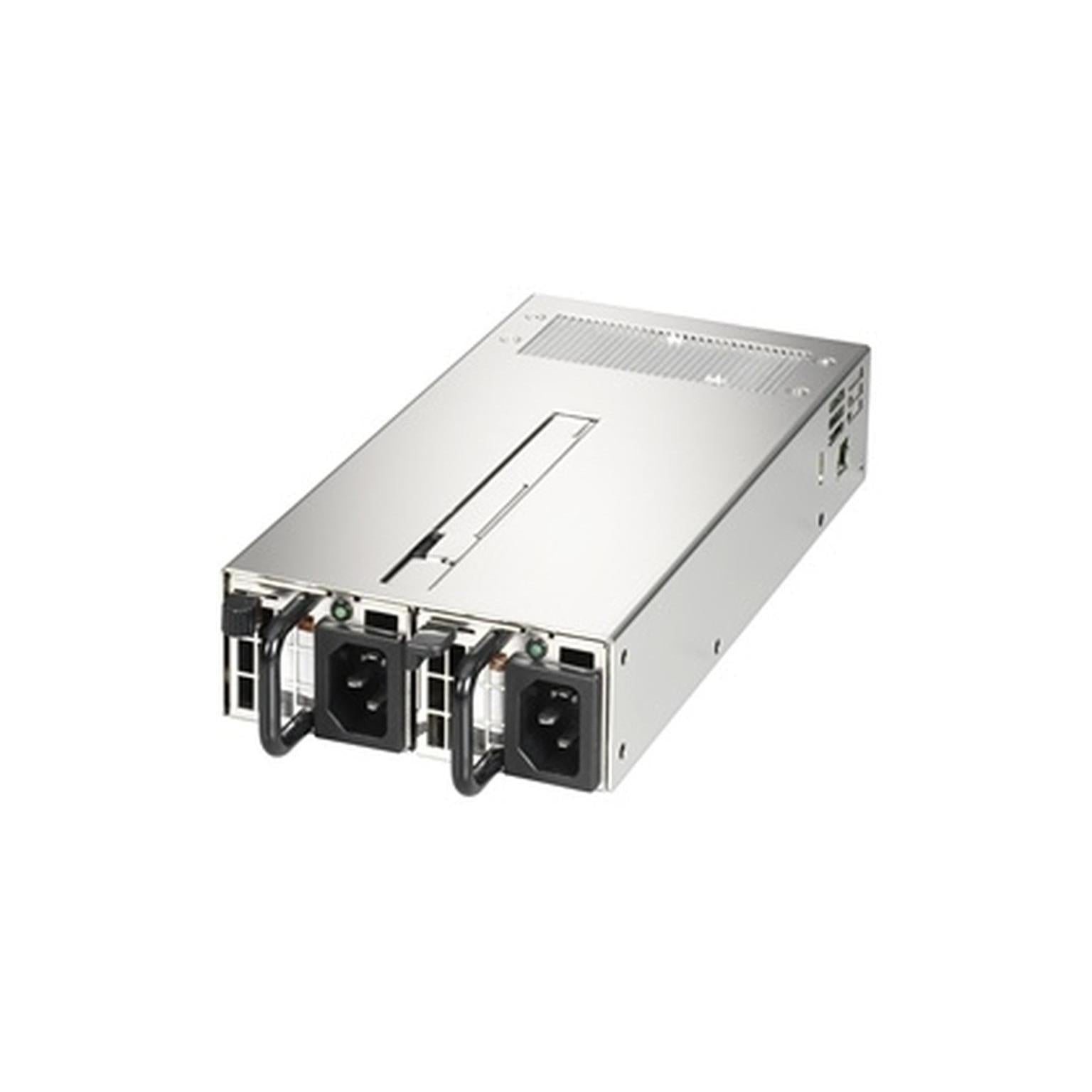

Zippy 1U Redundant 120W PSU 215x106x41.5mm For Server

The Zippy 1U Redundant 120W PSU is designed for server applications and measures 215 x 106 x 41.5 mm (8.46 x 4.17 x 1.63 inches).

Temperature Range

• Operating: 0°C to 50°C
• Storage: -20°C to 80°C

Hold-Up Time

The PSU maintains DC output at 17ms when power is shut down.

Efficiency

• Maximum system efficiency of 86% measured at nominal input voltage (230V) and full loading (+12V: 10A).

Leakage Current

Max. leakage current is 3.5mA at nominal voltage (250VAC).

Remote Control

• Includes remote on/off control.

Power Good Signal

• On delay: 100ms to 550ms
• Off delay: 1ms

Protection Features

• Over power protection: 110% to 150%
• Over voltage protection for +5V, +3.3V, and +12V outputs.
• Short circuit protection for +5V, +3.3V, +12V, -12V, and +5VSB

Safety Standards

• Complies with UL/ULC, TÜV, CCC safety standards.

Warning Method

• Audible alarm (resettable buzzer sound), fault LED, TTL signal.

Input Specifications

• Voltage: 90 to 264VAC full range
• Frequency: 47 to 63Hz
• Current: 2A (RMS) for 115VAC, 1A (RMS) for 230VAC
• Inrush current: 35A max. per module for 115VAC, 70A max. per module for 230VAC

Output Specifications

• +5V: Output current min/max: 0/10A, regulation load ±5%, line ±1%, ripple noise max (P-P): 50mV
• +12V: Output current min/max: 2/10A, regulation load ±5%, line ±1%, ripple noise max (P-P): 120mV
• +3.3V: Output current min/max: 0/10A, regulation load ±5%, line ±1%, ripple noise max (P-P): 50mV
• -12V: Output current min/max: 0/0.3A, regulation load ±10%, line ±1%, ripple noise max (P-P): 120mV
• +5VSB: Output current min/max: 0.1/3A, regulation load ±5%, line ±1%, ripple noise max (P-P): 50mV

Note: This power supply is intended for chassis assembly only and must comply with EMC and safety regulations upon final assembly.
