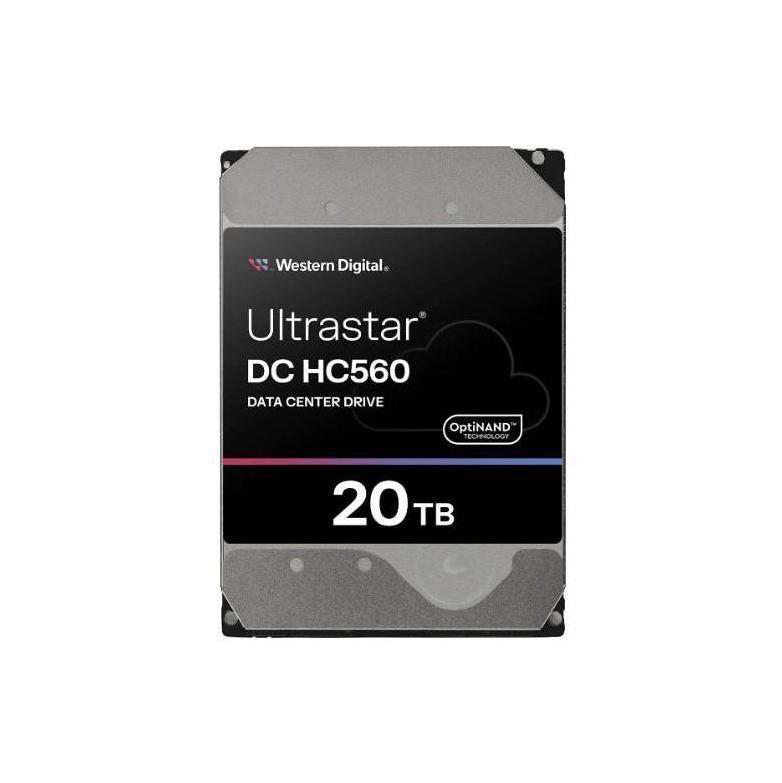

Western Digital WD Ultrastar DC HC560 20TB 3.5" SATA 7200 RPM Cache 512MB 5-y...

The Western Digital WD Ultrastar DC HC560 is a high-capacity enterprise hard drive with a 20TB storage capacity in a standard 3.5-inch form factor. It features advanced technologies such as ePMR CMR, OptiNAND, EAMR (Energy-Assisted Magnetic Recording), TSA (Thermal Sensing Architecture), and the reliable HelioSeal design for outstanding power efficiency.

Display

• No display component

Performance

• Transfer rate up to 291MB/s
• Disk speed: 7200 RPM
• Certified for Windows, Windows Server, and Linux operating systems

Storage

• Capacity: 20TB
• Cache size: 512MB
• Self-Encrypting Drive (SED) options available

Connectivity

• SATA interface

Durability and Reliability

• Mechanical reliability with a projected 2.5 million hours Mean Time Between Failures (MTBF)
• Operating temperature range: 5°C to 60°C
• Non-operating temperature range: -40°C to 70°C
• Weight: 690 grams
• Dimensions: 147mm x 101.6mm x 26.1mm (L x W x H)

Certifications and Warranty

• 5-year limited warranty
• Certified by BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, and UL

Applications include cloud and hyperscale storage, massive scale-out (MSO) high-density data centers, distributed file systems, bulk storage using object storage solutions like Ceph™ and OpenStack® Swift, and primary and secondary storage for Apache Hadoop® big data analytics.
