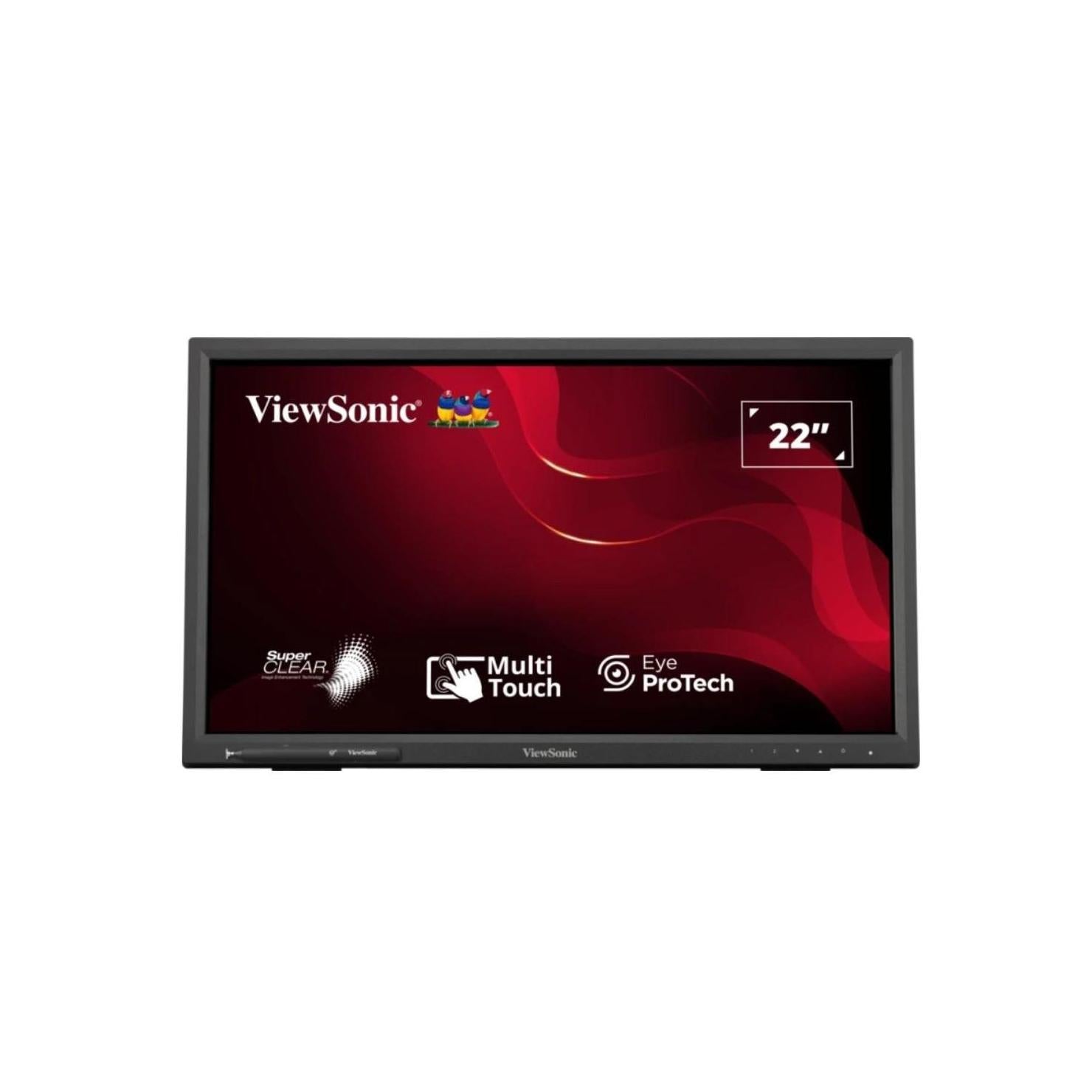

ViewSonic TD2223-2 22" 10-Point IR Touch Monitor

The ViewSonic TD2223-2 is a versatile and user-friendly 22-inch In-Cell touch monitor designed for efficient multitasking and comfortable working angles. It features an intuitive 10-point IR touchscreen that supports finger, stylus, and glove touch interactions.

Display

• Type: TN Technology
• Size: 22 inches (viewable area: 21.5 inches)
• Resolution: Full HD (1920 x 1080 pixels)
• Brightness: 250 cd/m²
• Contrast Ratio: Static 1,000:1, Dynamic 20M:1
• Aspect Ratio: 16:9
• Response Time: 5ms (GTG)
• Viewing Angles: 170° horizontal, 160° vertical
• Light Source: LED backlight
• Curvature: Flat
• Refresh Rate: 75Hz
• Blue Light Filter & Flicker-Free: Yes

Ergonomics

• Magnetic Pen Holder: Included for easy pen storage
• Adjustable Back Tilt: Up to 40 degrees for comfortable viewing angles
• Scratch-Resistant Screen: 7H hardness rating

Connectivity

• VGA Input: 1 port
• HDMI Input: 1 (version 1.4)
• DVI-D Input: 1
• USB Type-C: No direct mention, but supports USB 2.0 ports for input/output
• Audio In/Out: 3.5mm jacks (each)
• Power Supply: Internal power supply with a 3-pin socket (IEC C14 / CEE22)

Package Contents

• Td2223-2 monitor x1
• 3-pin plug (IEC C13 / CEE22) x1
• HDMI cable (v1.4; male-male) x1
• USB A/B cable (v2.0; male-male) x1
• Audio cable (male-male) x1
• Quick start guide x1
