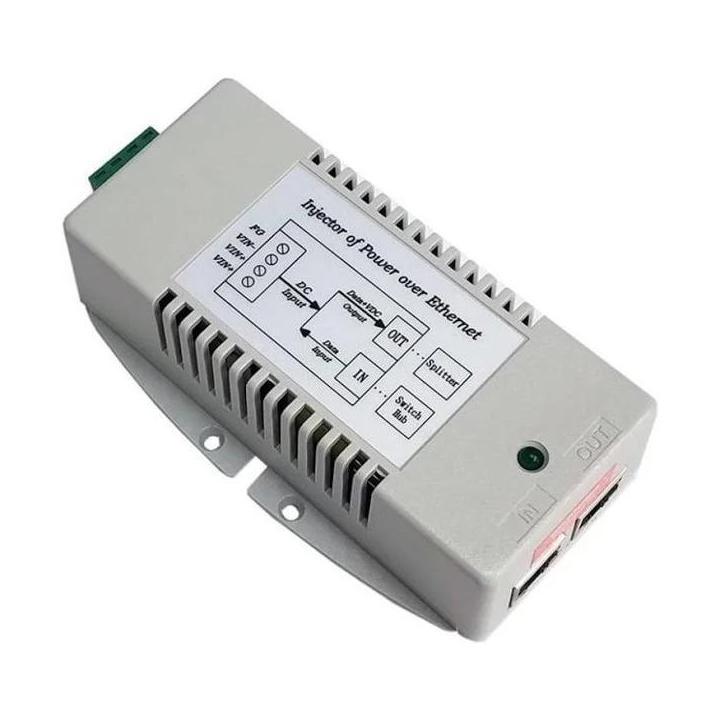

Tycon TP-DCDC-1248GDX2 10-15VDC IN 2 Ports 802.3af/at 56VDC 21W OUT DC to DC

The Tycon TP-DCDC-1248GDX2 is a high-power PoE injector designed for dual 802.3af/at compatible outputs, enabling simultaneous power supply to two devices from a single unit without the need for a PoE switch. This model operates on a 12VDC input and supports up to 42W of total combined output.

Key Features

• Input Voltage: 10-15VDC
• Dual Outputs: Two 802.3af/at compatible outputs, each up to 21W
• Data Compatibility: 10/100/1000 data rates with shielded connectors
• Safety and Protection: Short circuit, overload, reverse voltage protection, surge protection up to 15kV
• Dual DC Inputs: Connect two power sources for primary and backup use
• Isolation: Input and output voltage isolation to prevent grounding or negative voltage issues
• Mounting Options: DIN rail mountable, suitable for industrial environments

This PoE injector is ideal for applications such as remote power systems running on batteries, powering cameras and wireless devices, and PoE lighting solutions.
