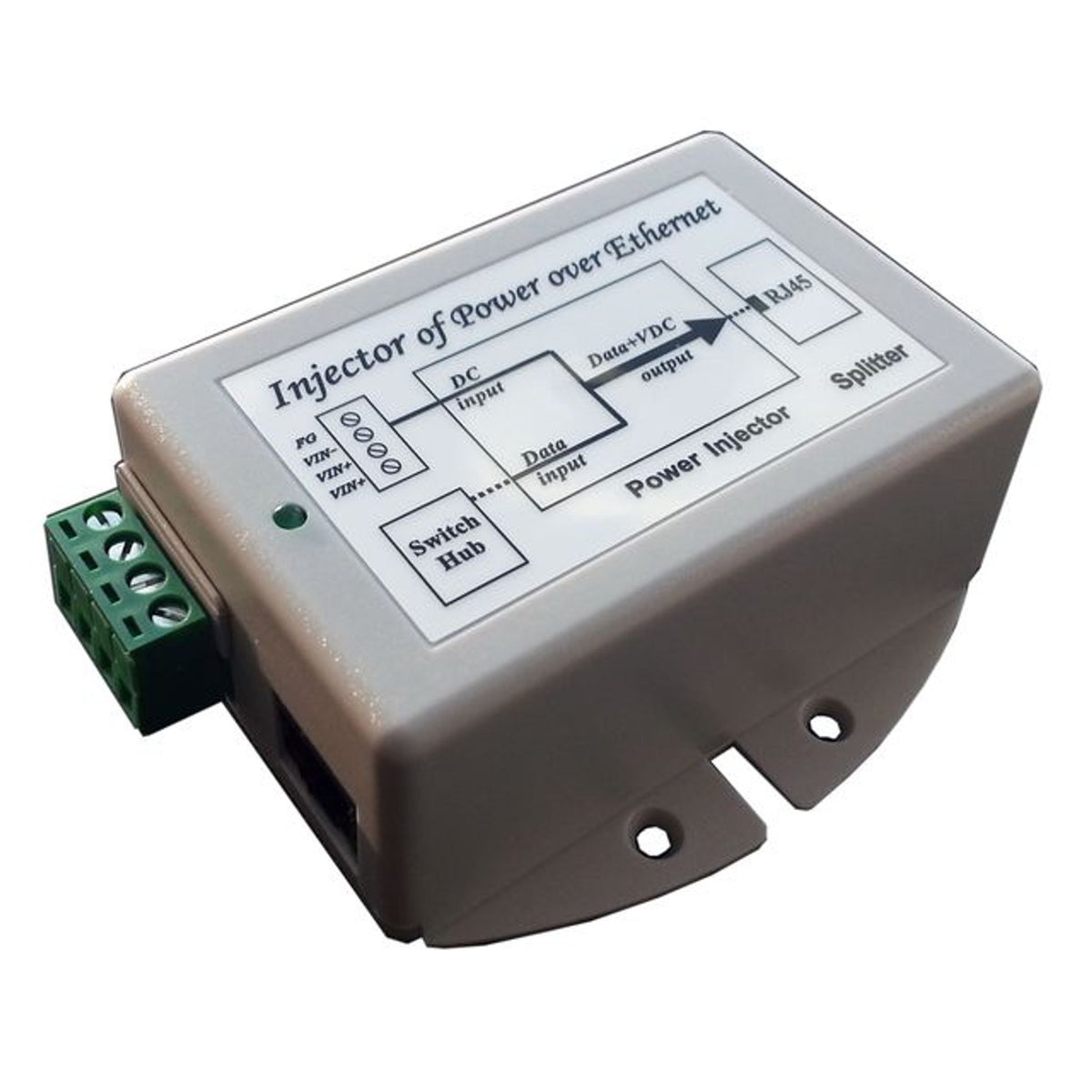

Tycon TP-DCDC-1224 9-36VDC IN 24VDC OUT 19W DC to DC POE Converter
Hurry up, only 6 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 86 mm |
|---|---|
| Width | 122 mm |
| Height | 42 mm |
Product Details
Product Details
The Tycon TP-DCDC-1224 is a low-cost and high-reliability solution for converting 9VDC to 36VDC input into regulated 24VDC Power over Ethernet (PoE) output, ideal for applications requiring power from a 12 or 24V battery system. This device features an integrated POE injector that applies the 24VDC to CAT5/6 Ethernet cables and supports dual inputs for connecting two power sources.
Performance
- Input Voltage: 9-36VDC
- Output Voltage: Regulated 24VDC
- Power Output: Up to 19W
- Data Rate: 10/100MB POE Inserter
Protection and Reliability
- Short Circuit Protection
- Over Current Protection
- Reverse/Over Voltage Protection
- Surge Protection
Connectivity and Compatibility
- Data-in to shielded RJ45 Jack
- Data-out and POE power on the shielded RJ45 output jack
- I.E.E.E. 802.3af compliant model available
- Supplies power on unused Ethernet pins (4,5(V+) and 7,8(V-))
Applications
- 12V / 24V Battery Systems
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
For detailed specifications, user guides, and dimensional drawings, refer to the provided links.
Warranty
Warranty
Manufacturer warranty 12 Months
