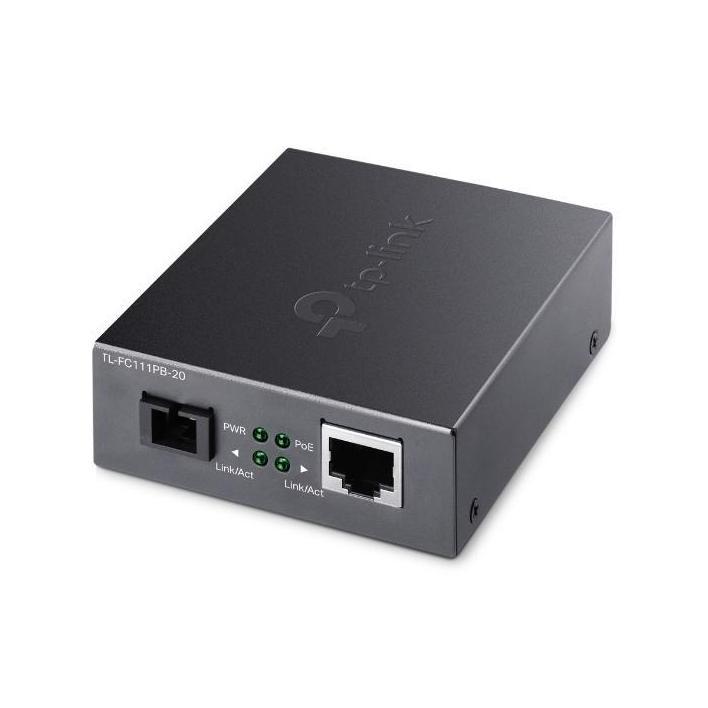

TP-Link TL-FC111PB-20 10/100Mbps 1-Port PoE WDM Media Converter 20KM

The TP-Link TL-FC111PB-20 is a 10/100Mbps WDM (Wave Division Multiplexing) media converter designed to convert data between fiber and copper networks. It supports remote camera deployment with its integrated PoE output, extending the reach of fiber up to 20 km.

Display

N/A

Performance

• WDM technology for transmitting and receiving data over a single fiber strand
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Supports IEEE802.3, IEEE802.3i, IEEE802.3u standards

Storage

N/A

Connectivity

• 1x 10/100 Mbps PoE RJ45 port
• 1x 100 Mbps SC fiber port

Environment

• Operating temperature: 0–50 °C (32–122 °F)
• Storage temperature: -40–70 °C (-40–158 °F)
• Operating humidity: 10–90% RH non-condensing
• Storage humidity: 5–90% RH non-condensing

Hardware Features

• Network media: 100BASE-Tx, 2-pair UTP/STP of Cat. 5 or above (≤100 m)
• Power supply: 48 V/0.5 A
• Fiber type: 9/125 μm single-mode fiber (≤20 km)
• Wave length: 1310 nm TX, 1550 nm RX
• Dimensions: 94.5×73.0×27.0 mm

Battery and Power Management

N/A
