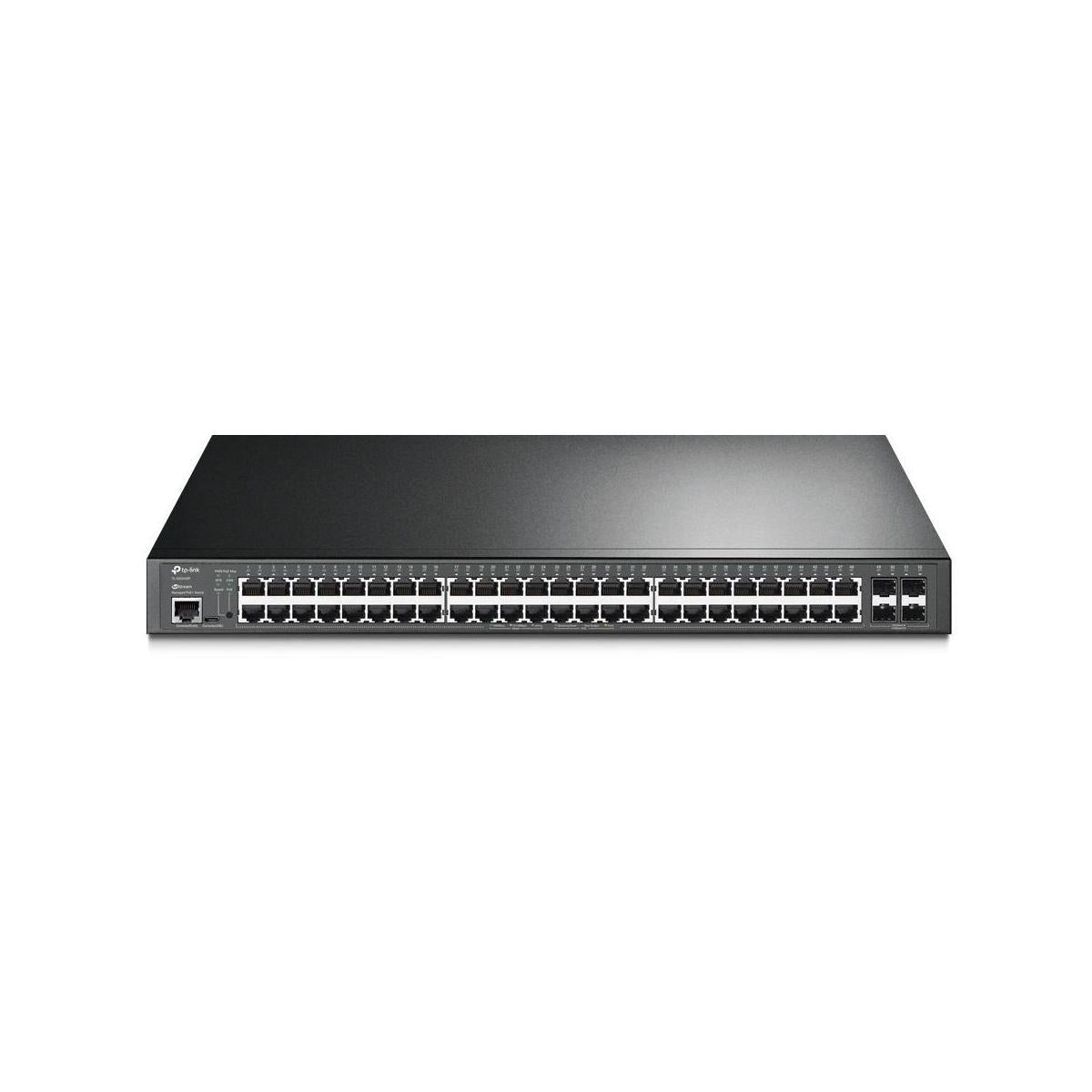

TP-Link SG3452P Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ In...

The TP-Link TL-SG3452P JetStream is a 52-port Gigabit Layer 2+ managed switch designed for high-performance networking with integrated Omada SDN capabilities. It features 48 PoE+ ports and four gigabit SFP slots, offering robust connectivity options.

Display

N/A

Performance

• Switching Capacity: 104 Gbps
• Packets Forwarding Rate: 77.4 Mpps
• Jumbo Frame Support: Up to 9 KB

Storage

N/A

Connectivity

• Ethernet Ports: 48× 10/100/1000 Mbps RJ45 ports (PoE+ compliant)
• SFP Slots: 4 Gigabit SFP slots
• PoE Power Budget: Up to 384 W total, with each port supporting up to 30 W
• Console Ports: 1 RJ45 and 1 Micro-USB console ports

Management Features

• Zero-Touch Provisioning (ZTP)
• Centralized Cloud Management via Omada app
• Static Routing for efficient internal traffic routing
• Robust security features including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, and 802.1X Radius Authentication
• L2/L3/L4 QoS and IGMP snooping for optimised voice and video applications
• Standalone management via Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image

Hardware Features

• Fan Quantity: 3 fans
• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions (W x D x H): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
• Mounting: Rack mountable
• Max Power Consumption: 52.53 W (no PD connected), 485.4 W (with 384 W PD connected)
• Max Heat Dissipation: 179.13 BTU/hr (no PD connected), 1656.19 BTU/hr (with 384 W PD connected)

Software Features

• Quality of Service: Supports 8 priority queues, CoS/DSCP priority, SP/WRR queue scheduling, and port/flow-based bandwidth control
