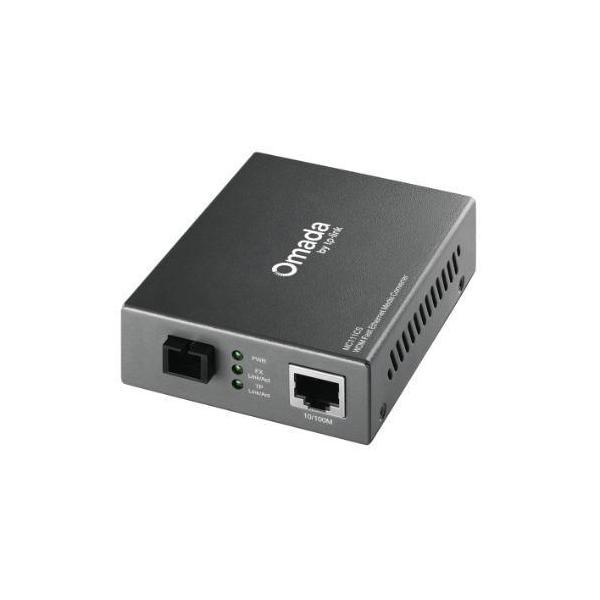

TP-Link MC111CS 10/100Mbps SC WDM Media Converter Monomode Simplex 10/100Base...

The TP-Link MC111CS is a media converter designed to convert between 100BASE-FX fiber and 100Base-TX copper media or vice versa. It adopts WDM (Wavelength Division Multiplexing) technology, allowing data transmission and reception over a single fibre cable, reducing cabling costs.

Standards and Protocols

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x

Basic Function

• WDM technology for half/full-duplex transfer mode on FX port
• Full Duplex Flow Control (IEEE 802.3x)
• Half Duplex Flow Control (Backpressure)
• Link Fault Passthrough and Far End Fault detection to minimise loss caused by link failure
• Fibre distance extension up to 20km

Ports

• 1 x 100M SC/UPC port
• 1 x 100M RJ45 port (Auto MDI/MDIX)

Wavelength

• Tx: 1550nm
• Rx: 1310nm

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (max. 100m), EIA/TIA-568 100Ω STP (max. 100m)
• 100BASE-T: UTP category 5, 5e cable (max. 100m), EIA/TIA-568 100Ω STP (max. 100m)
• 100BASE-FX: Single-mode fibre LED

LED Indicators

• PWR: Power status
• FDX/Col: Full Duplex or Collision detection
• Link/Act: Link and activity status
• SPD: Speed indication

Dimensions (W*D*H)

• 94.5mm * 73.0mm * 27.0mm (3.7in * 2.9in * 1.1in)

Power Supply and Consumption

• External Power Adapter
• Max Power Consumption: 2.49W

Safety Emission

• FCC, CE, RoHS

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
