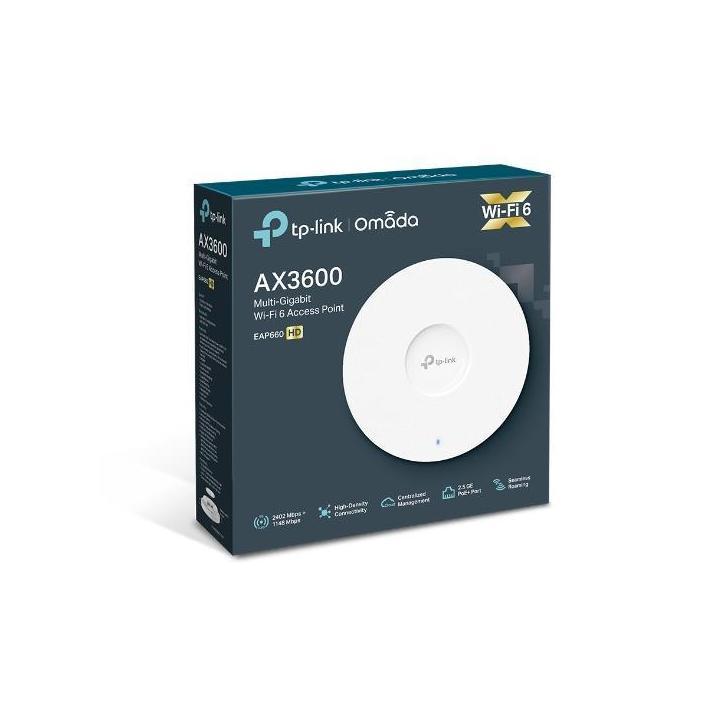

TP-Link EAP660 HD Omada AX3600 Dual Band Multi-Gig Ceiling Mount Access Point

The TP-Link EAP660 HD Omada AX3600 Dual Band Multi-Gig Ceiling Mount Access Point is designed for high-density environments requiring robust Wi-Fi performance and easy management. It supports ultra-fast Wi-Fi 6 speeds, providing simultaneous connectivity on both the 2.4 GHz (up to 1148 Mbps) and 5 GHz (up to 2402 Mbps) bands, delivering a total of 3550 Mbps.

Performance

• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz
• High-Density Connectivity: Connect up to four times more devices simultaneously compared to previous generations
• Seamless Roaming: Ensures uninterrupted video streams and voice calls as users move between locations

Connectivity

• 2.5G Port: A 2.5 Gbps Ethernet port for boosted internet throughput
• PoE+ Support: Supports Power over Ethernet (IEEE802.3at) for convenient deployment and installation

Management

• Integrated into Omada SDN: Zero-Touch Provisioning, Centralised Cloud Management, Intelligent Monitoring
• Centralised Management: Accessible via the Omada app or cloud-based controller for easy management and monitoring
• Secure Guest Network: Multiple authentication options (SMS/Facebook Wi-Fi/Voucher) and advanced wireless security technologies

HARDWARE FEATURES

• Interface: 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
• Power Supply: 802.3at PoE or 12 V DC Power Consumption
• Dimensions: 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
• Antenna Type: Internal Omni: 2.4 GHz - 4× 4 dBi, 5 GHz - 4× 5 dBi
• Mounting: Ceiling/Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz - Up to 2402 Mbps, 2.4 GHz - Up to 1148 Mbps

Packaging Contents

• EAP660 HD Access Point
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
