Supermicro

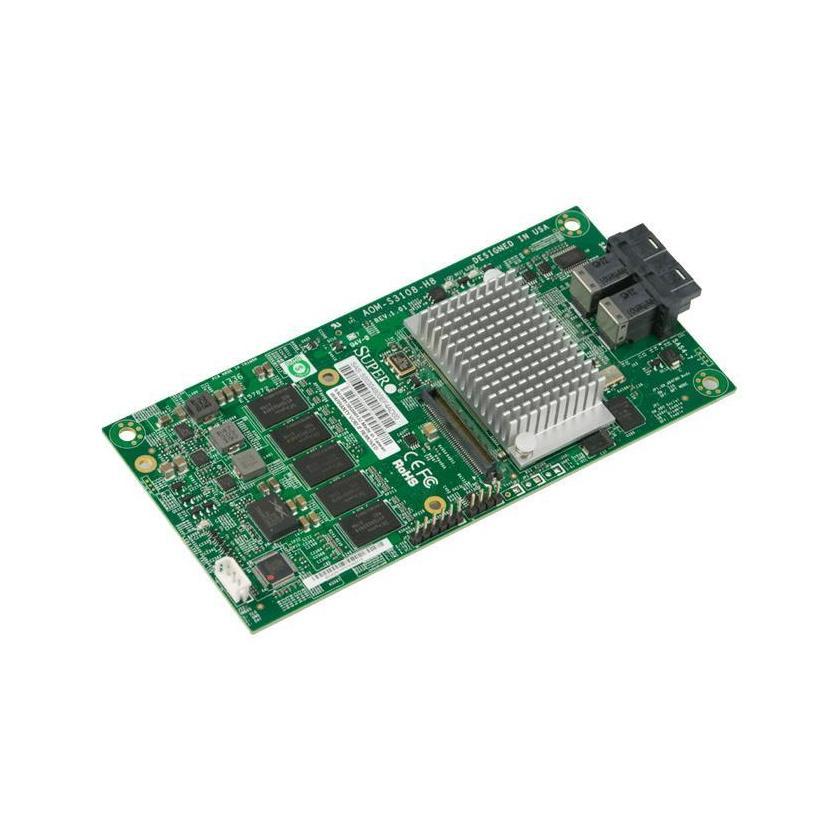

Supermicro AOM-S3108M-H8 SAS 12Gb/s RAID Controller PCIe
Hurry up, only 8 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 100 mm |
|---|---|
| Width | 100 mm |
| Height | 100 mm |
Product Details
Product Details
The Supermicro AOM-S3108M-H8 is a low-profile internal RAID adapter designed for high-performance storage connectivity in enterprise-class server platforms. Built on Broadcom SAS IC technology and proven MegaRAID architecture, this card supports 12Gb/s data transfer rates and offers advanced array configuration and management utilities.
Key Features
- Broadcom 3108 8-port PCI-E SAS-3 controller
- 8 internal SAS connectors at 12Gb/s per port
- Supports RAID 0, 1, 5, 6, 10, 50, and 60
- On-board hardware IO processor with 2GB DDR3 cache
- Advanced array configuration and management utilities
- Automatic PCI-E link width negotiation
- Supports 1.5, 3.0, 6.0, and 12Gb/s SAS and SATA data transfer rates
- Port independent auto-negotiation for SSP, SMP, STP, and SATA protocols
- Optional Supercap/TFM Unit for cached data protection (BTR-TFM8G-LSICVM02; Installation kit: MCP-240-00127-0N)
- Ambient operating temperature range from 10°C to 55°C
- OS support includes Windows XP, 2K3, 2K8, Vista, RedHat Enterprise and SUSE Linux
- Supports fastpath (Free) and cachecade (AOC-CHCD-PRO2-ESW)
Warranty
Warranty
Manufacturer warranty 12 Months
