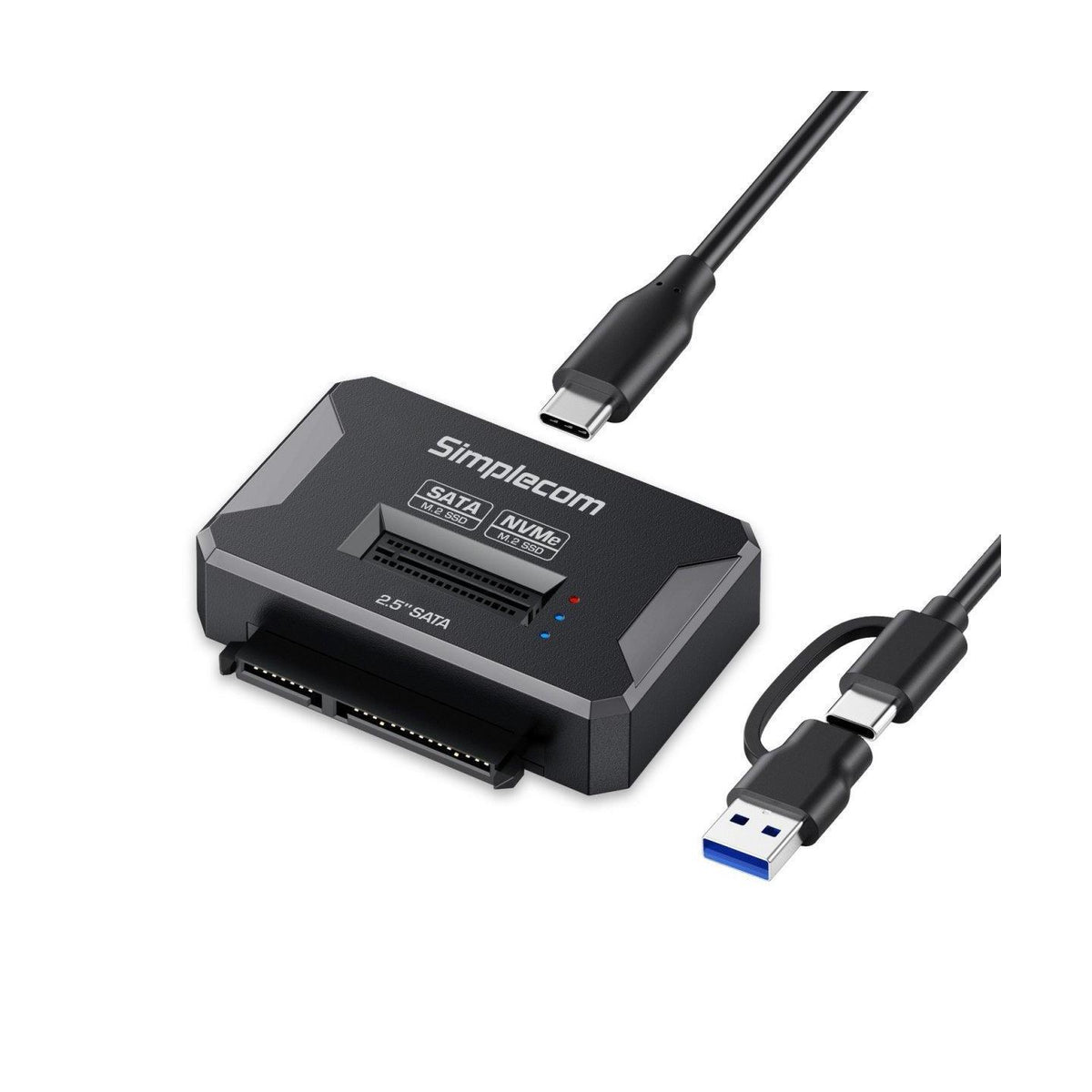

Simplecom SA516 NVMe/SATA M.2 SSD 2.5" SATA USB Adapter 10Gbps

The Simplecom SA516 is a dual-slot storage adapter designed to support both M.2 SSDs and 2.5" SATA drives in one compact solution. It offers high-speed data transfer of up to 10Gbps when used with NVMe M.2 SSDs, ensuring fast and efficient performance.

Features

• Dual slots support both M.2 SSDs and 2.5" SATA drives
• M.2 slot supports both NVMe and SATA protocols
• Compatible with M Key or B+M Key M.2 SSDs
• Compatible with 2.5" SATA HDDs and SSDs
• USB-C interface compliant with USB 3.2 Gen 2 standard
• Supports data transfer rates up to 10Gbps
• USB-C and USB-A combo cable, convenient for use on different devices
• Supports UASP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• Plug and play, no driver required
• USB powered, no external power required

Specifications

• Model: SA516
• Material: ABS plastic
• Interface: USB-C (USB 3.2 Gen 2)
• Transfer Rate: NVMe M.2 up to 10Gbps; SATA M.2 and 2.5" SATA drives up to 6Gbps
• Compatible M.2 Type: NVMe and SATA M.2
• Compatible M.2 Size: 2230 / 2242 / 2260 / 2280 / 22110
• Compatible SATA Type: 2.5" SATA HDDs/SSDs
• Dimensions: 60 × 40 × 14 mm (L × W × H)
• Weight: Approx. 37g
• Operating System Support: Windows 7 or later, macOS 10.8 or later, Linux

Package Contents

• 1x SA516 M.2 SSD and 2.5" SATA to USB Adapter
• 1x USB-C + USB-A combo cable
• 1x User Manual

Important Notes

M.2 and SATA ports cannot be used simultaneously. Please connect either an M.2 or 2.5" SATA drive at a time.

• SATA port supports 2.5" SATA drives only; 3.5" SATA hard drives are not supported.
• This adapter does not support hot-swapping. Please unplug the USB cable before plugging or unplugging the SSD.
• SA516 supports both NVMe and SATA-based M.2 SSDs (M Key or B+M Key). When using a SATA M.2 SSD, bandwidth is limited to 6Gbps, which is the maximum transfer rate of the SATA interface.
