Simplecom

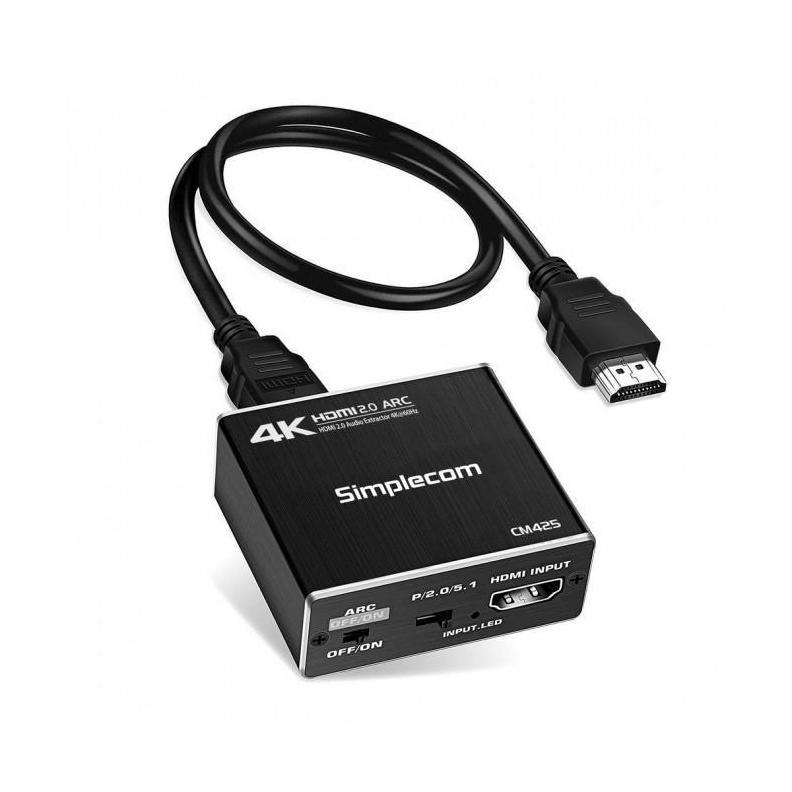

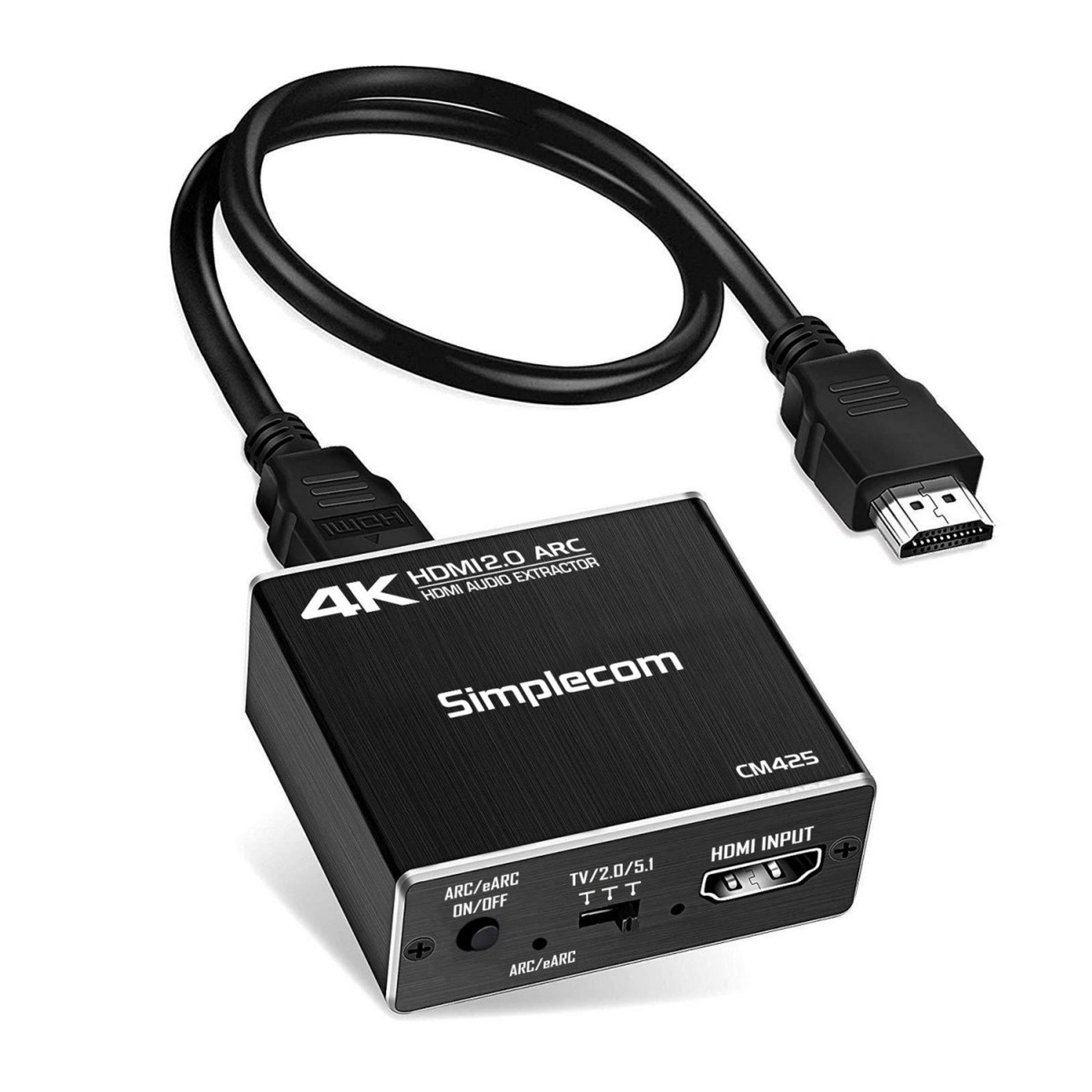

Simplecom CM425 HDMI 2.0 Audio Extractor Optical SPDIF 3.5mm ARC 4K@60Hz
Regular price
$50.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 184 mm |
|---|---|
| Width | 106 mm |
| Height | 24 mm |
Product Details
Product Details
The Simplecom CM425 HDMI 2.0 Audio Extractor is an advanced audio extraction device designed for high-resolution video and audio output. It supports up to 4K@60Hz resolution and features Optical SPDIF and 3.5mm stereo outputs, making it ideal for connecting external speakers or older audio systems without HDMI input.
Display
- HDMI Version: HDMI 2.0b (backwards compatible)
- HDCP Version: HDCP 2.2
- Resolution Support: 480i/480p, 576i/576p, 720p, 1080i, 1080p, 4K@60Hz
- HDMI 3D Support: Yes
Performance
- Max Bandwidth: 600MHz
- Max Baud Rate: 18Gbps
- Supports HDR and compressed audio formats (DTS Digital, Dolby Digital)
Connectivity
- Input: 1x HDMI Input
- Video Output: 1x HDMI output (HDMI pass-through)
- Audio Outputs: 1x SPDIF (Optical), 1 x 3.5mm Stereo Audio (Analog)
- ARC Support: Yes (with switch)
- Power Input: Micro USB port
Features
- Three Audio Modes: Pass-through, 2CH and 5.1CH
- Supports uncompressed audio PCM, LPCM
- Powered by USB (can be powered from a wall charger or TV)
Warranty
Warranty
Manufacturer warranty 12 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
