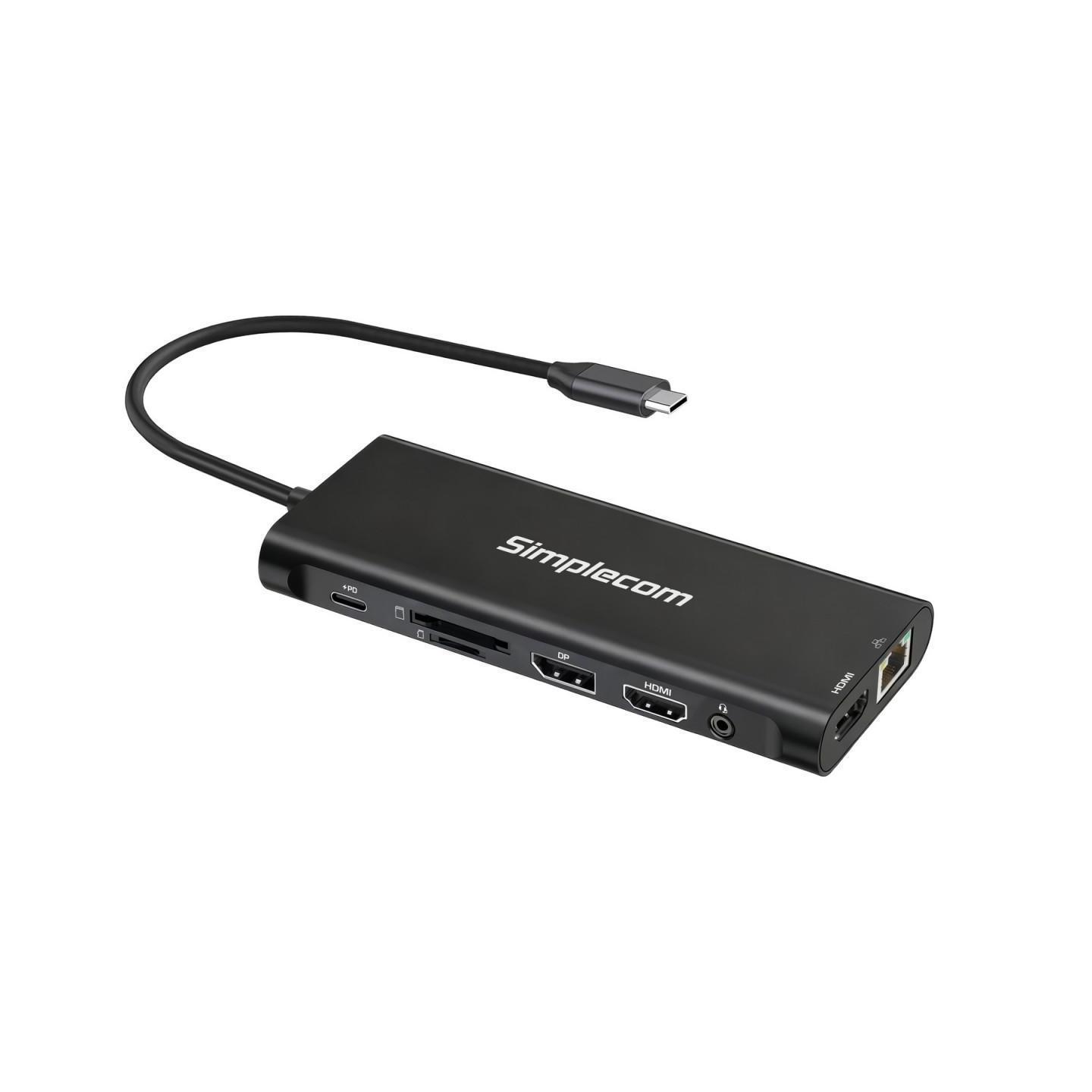

Simplecom CHT814 USB-C 4K Triple Display MST Dock Dual HDMI DP
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Ports & Connectivity
| USB Type-C | Yes |
|---|---|
| USB 3.0 | Yes |
| Device Interface | HDMI, Display port, SD card, USB, Ethernet, 3.5 mm, Micro SD card |
| USB Standard | USB 3.2 gen 1x1, USB 3.2 gen 2x1, USB 3.2 gen 2 |
| USB Connector Type | USB Type-C, USB Type-A |
| Connectivity Technology | USB, Ethernet, Wired, HDMI |
Power
| Power Source | USB |
|---|
Case & Build
| Material | Aluminum, Metal |
|---|
Other
| Operating System | macOS, Windows |
|---|
Product Details
Product Details
The Simplecom CHT814 is a powerful and compact 14-in-1 USB-C docking station designed to expand your laptop's connectivity through a single USB-C connection. It features multiple ports for versatile peripheral connections, including three display outputs (two HDMI and one DisplayPort) that support up to 4K resolution.
Display
- HDMI Outputs: 2x HDMI, up to 4K@60Hz (3840x2160)
- DisplayPort Output: 1x DP, up to 4K@60Hz (3840x2160)
Performance and Connectivity
- USB-A Data Ports: 1x USB 480Mbps, 2x USB 5Gbps, 1x USB 10Gbps
- USB-C Data Ports: 2x USB 10Gbps (data transfer only)
- Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
- Audio Port: 3.5mm headphone/microphone combo jack
- Card Reader: SD and MicroSD slots, up to 5Gbps transfer rate
- PD Input: USB-C PD (charging only), up to 100W
Housing and Compatibility
- MST Support: Yes, for mirrored or extended display modes
- HDCP Support: HDCP 2.3 compliant, backwards compatible
- Operating System: Windows 10 or later, macOS 10.12 or later (no MST support)
- Laptop GPU Requirements: DP 1.4 or higher for up to three extended displays at 4K resolution
The CHT814 is plug-and-play with no additional drivers required, making it an ideal solution for both home and office environments.
