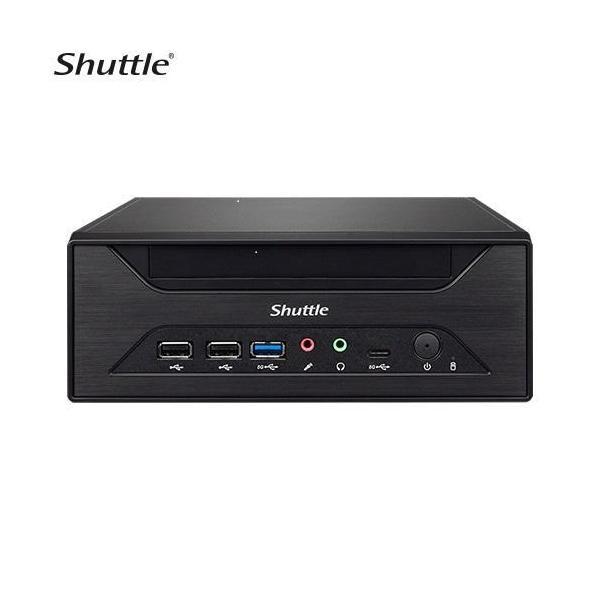

Shuttle XH610G2 5L Mini PC Intel 14th/13th/12th Gen DDR5 2x LAN 2x HDMI DP PCIe Slots M.2
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 240 mm |
|---|---|
| Width | 200 mm |
| Height | 72 mm |
Product Details
Product Details
The Shuttle XH610G2 is a compact and robust mini PC designed for interactive kiosks, vending machines, digital signage, and surveillance applications. It features an Intel® H610 chipset supporting 14th/13th/12th Gen LGA1700 processors with DDR5 memory technology.
Display
- HDMI 2.0b
- DisplayPort
- VGA (optional)
- Triple display output: HDMI + Display + D-Sub (VGA) port
Performance and Memory
- Intel® H610 chipset
- 2 x DDR4 SODIMM slots, up to 64GB total memory capacity
- Supports Intel® 14th/13th/12th Gen LGA1700 processors
Connectivity and Expansion
- 2 x LAN ports: Intel GbE Lan, Intel 2.5 GbE Lan
- M.2 slots (2x M.2 2280 Type M key socket, 1x M.2 2230 Type E Key socket)
- PCIe x16 slot and PCIe x1 slot for expansion cards
- VGA RS232 ports (optional)
Audio and Storage
- Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio
- SATA 6.0Gb/s interface for storage devices
The Shuttle XH610G2 is housed in a slim metal chassis with VESA mount compliance, allowing it to operate in environments up to 50°C and supports Wake-On-LAN functionality.
Warranty
Warranty
Manufacturer warranty 36 Months
