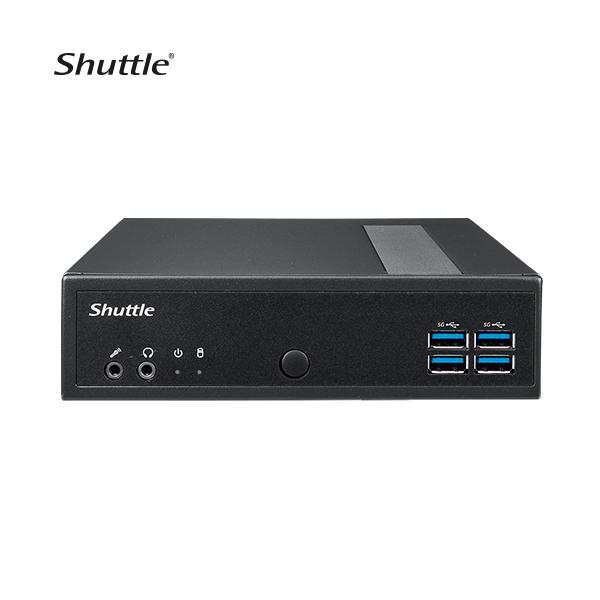

Shuttle DL40N XPC Fanless Mini PC Intel N150 4-Core DDR5 8xUSB 2x2.65W Adapter

The Shuttle DL40N XPC is a fanless mini PC designed for compact and quiet computing environments. Featuring an Intel® Twin Lake-N N150 processor with 4 cores, this barebone system supports up to 16GB of DDR5 memory.

Display

• HDMI 2.0b output
• DisplayPort output
• VGA output
• Supports triple independent display setup

Performance

• Intel® Twin Lake-N N150 processor (up to 7W)
• 4 cores
• Supports DDR5 memory up to 4800MHz, max. 16GB

Connectivity

• Intel I226-LM Dual LAN controller with support for 10/100/1000/2500 Mbps Ethernet
• Wake-on-LAN (WOL) feature
• 2.5GbE LAN ports on the back panel
• VGA port
• DisplayPort and HDMI video outputs

Audio

• 2-channel High Definition Audio

Storage

• SATA interface for HDD/SSD (max. 9.5mm)
• M.2 Type M (2280) and Type E (2230) expansion slots

I/O Ports

• Front panel: Power button, power LED, HDD LED, 4x USB 3.2 Gen1 ports, MIC-IN, audio out
• Rear panel: 2x Intel® 2.5GbE LAN w/LED, DisplayPort, HDMI port, 4x USB 3.2 Gen1 ports, DC in, RS232/RS422/RS485, RS232, VGA, External power on/Clear CMOS header, 2x Antenna holes

Dimensions & Power

• Barebone dimensions: 190(L) x 165(W) x 43(H) mm
• Power supply: 65W adapter (19V/3.42A or 12V/5.42A DC)

Compatibility & Certifications

• Supported operating systems: Windows 11, Ubuntu Linux
• Certifications: CB, BSMI, cTUVus (Safety), FCC, CE, BSMI, RCM, VCCI, UKCA (EMI)

Operating Temperature

• 0°C to 40°C
