Shuttle

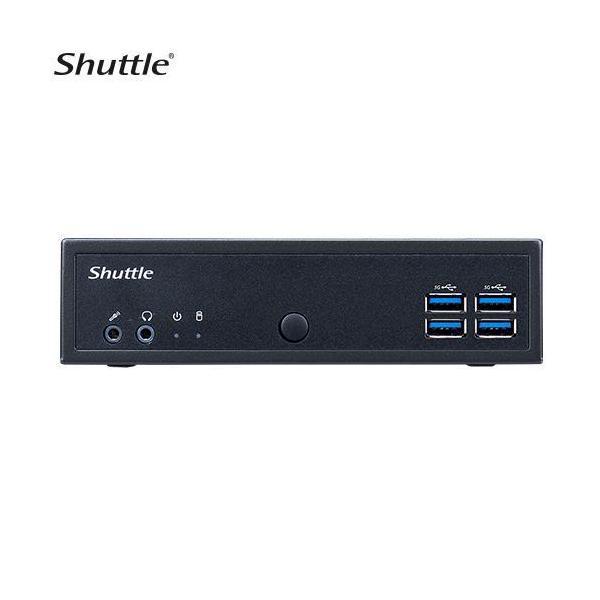

Shuttle DL30N Slim Mini PC 1L Barebone Intel N100 Fan-less LAN RS232/RS485 HDMI DP VGA Vesa
Regular price
$599.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 258 mm |
|---|---|
| Width | 138 mm |
| Height | 242 mm |
Product Details
Product Details
The Shuttle DL30N is a compact and fanless mini PC designed for versatile use with support for Windows 11 or Ubuntu Linux operating systems. It features an Intel Processor N100 and supports up to 16GB of DDR5 memory.
Display
- HDMI 2.0b + DisplayPort + VGA video output
- Supports triple independent display setup
- Intel HD Graphics engine
Performance
- Processor: Intel® Processor N100 (DL30N)
- Memory Support: DDR5 4800Mhz SODIMM, up to 16GB
Connectivity
- Ethernet: Intel I226-LM Dual LAN controller (Supports wake ON LAN)
- HDMI port
- DisplayPort
- VGA output
- M.2 Type M (2280) and M.2 Type E (2230) expansion slots
- Intel® 2.5GbE LAN with LED
- USB 3.2 Gen1 ports on both front and back panels
- VGA, RS232/RS422/RS485 connectivity
I/O Ports
- Front panel: Power button, power LED, HDD LED, USB 3.2 Gen1 ports, MIC-IN, Audio out
- Rear panel: Intel® 2.5GbE LAN with LED, DisplayPort, HDMI port, DC in
Storage
- SATA interface for HDD/SSD
- M.2 Type M (2280) and M.2 Type E (2230) expansion slots
The DL30N is equipped with a 65W adapter, making it ideal for mounting on Vesa brackets.
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
