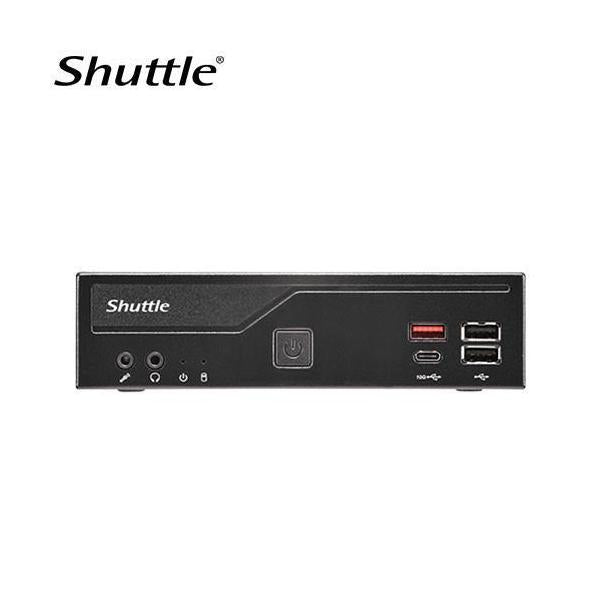

Shuttle DH810 Slim Mini PC 1.3L Intel Core Ultra 48GB DDR5 2xLAN HDMI 2xDP VESA

The Shuttle DH810 is a robust and compact mini PC designed for commercial tasks and demanding AI workloads. It features an Intel Core Ultra 200 series processor with up to 65W TDP, supporting configurations of up to 24 cores (8 Performance-cores and 16 Efficient-cores). The DH810 includes dual-channel DDR5 SODIMM slots for a maximum capacity of 96GB RAM.

Display

• HDMI 2.1 with support for up to 8K resolution
• Dual DP ports, one integrated with USB 4.0 (20G)
• Triple independent 4K display output

Performance

• Integrated Intel Graphics
• Supports up to 96GB DDR5-5600MHz RAM in dual-channel mode
• Fast data processing capabilities at 1.1V for improved power efficiency

Storage

• One M.2 2280 slot (PCIe Gen 4x4 or SATA 6Gb)
• One M.2 2230 slot (PCIe Gen 3x1, USB2.0, Intel CNVi module or Wlan-M module)

Connectivity

• Dual LAN ports: 2.5GbE and 1GbE Ethernet
• USB ports: Two front-panel USB 3.2 Gen2 (one Type-C), two rear USB 3.2 Gen1, four rear USB 3.2 Gen2 (two Type-C)
• AUDIO: Realtek ALC 888S High Definition Audio
• RS232 and RS422/RS485 ports with voltage output options

Bios & Utility Features

• Wake on LAN (WOL)
• Power-On After Power Failure, RTC Power-on, Watch Dog, Auto Power On

Miscellaneous

• VESA mounting standards: 75x75 and 100x100 for easy installation in space-constrained environments
• Operating System Support: Windows 11 (64-bit) and Linux
• Dimensions: 190(L) x 165(W) x 43(H) mm
• Net Weight: 1.32 kg
• Operating Temperature Range: 0°C to 50°C

The Shuttle DH810 is equipped with reliable heat pipe cooling technology for stable operation in commercial settings, making it ideal for digital signage and entertainment applications.
