Shuttle DH770 Slim Mini PC Intel ® 14th/13th/12th Gen LGA1700 socket 1L H770 ...

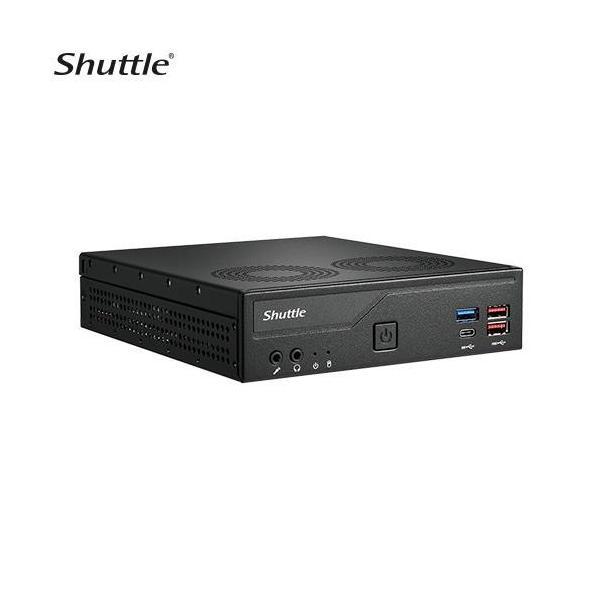

The Shuttle XPC Slim DH770 is a compact Barebone Mini-PC designed for versatility and performance. Featuring the Intel® H770 chipset, it supports 12th, 13th, and 14th generation LGA1700 processors with up to 65W TDP.

Display

• HDMI 2.0 x 2
• DisplayPort 1.4 x 2
• Supports Quad video outputs for 4K playback (Dual channel memory recommended)

Performance

• Intel® UHD graphics
• 2 x DDR5 SODIMM slots, up to 64GB total capacity (Max 32GB per DIMM)
• Supports DDR5-5600 MHz memory

Storage

• SATA 6.0Gb/s interface
• NVMe interface
• M.2 2280 Type M key socket for SSD
• M.2 2230 Type E key socket
• Supports SATA RAID 0,1

Connectivity

• Dual 2.5G LAN ports with WOL feature
• Wireless expansion support via antenna fixture
• RS232/422/485 port
• USB 3.2 Gen1 and Gen2 front and rear panel ports (including Type C)
• VGA port for PVG01 use

I/O Interfaces

• Front: USB 3.2 Gen1 x 2, USB 3.2 Gen2 x 2, Microphone-In, Line-Out, Power-On button, Power LED, HDD LED
• Rear: RJ45 LAN ports x 2, HDMI ports x 2, DisplayPort ports x 2, USB 3.2 Gen1 ports x 2, USB 3.2 Gen2 ports x 2, RS232 port, RS232/RS422/RS485 port
• Expansion slots: M.2 2280 Type M key socket and M.2 2230 Type E key socket

Other Features

• Realtek ALC 888S High Definition Audio
• VESA mount included
• Supports Windows 11 64-bit and Linux operating systems
• Operating temperature range: 0°C to 50°C

The Shuttle XPC Slim DH770 is ideal for applications such as AIoT Edge tasks, video streaming, digital signage, NVR stations, and automation control.
