Shuttle

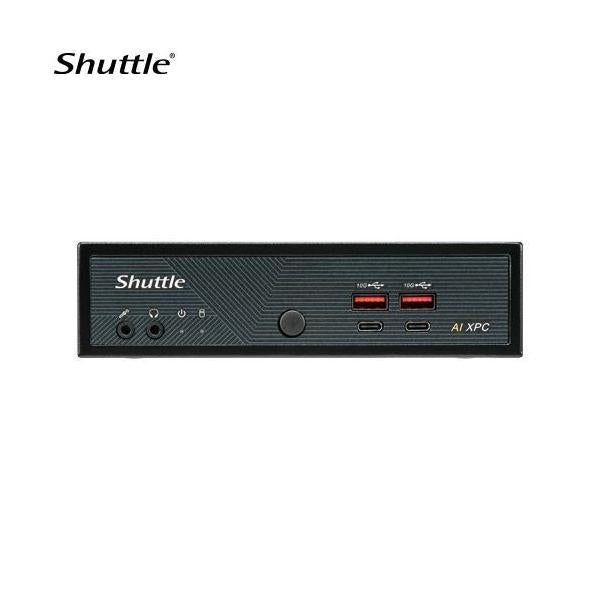

Shuttle AI XPC Intel Core Ultra 5 125H 2x DDR5 Mini PC
Regular price
$1,499.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 100 mm |
|---|---|
| Width | 100 mm |
| Height | 100 mm |
Product Details
Product Details
The Shuttle AI XPC, powered by the Intel® Meteor Lake Core Ultra 5 125H processor, is a compact mini PC designed for efficient performance in a small form factor.
Display
- HDMI 2.0 x 2
- DisplayPort x 2
- Supports up to four video outputs and 4K playback (dual channel memory recommended)
Performance
- Intel® Core Ultra 5 125H processor, 28W CPU
- Up to 96GB DDR5 RAM (two DDR5 SODIMM slots, max 48GB per DIMM)
- Supports up to 5600 MHz DDR5 memory
- Realtek ALC 888S High Definition Audio
Connectivity
- Four Intel 2.5GbE LAN ports with Wake On LAN (WOL) feature
- Two USB Type-C ports, two USB 3.2 Gen2 ports on the front panel
- Four USB 3.2 Gen2 ports and four RJ45 LAN ports on the back panel
- Wireless antenna fixture for Wi-Fi connectivity (M.2 2230 socket)
Storage
- SATA 6.0Gb/s interface
- NVMe interface via M.2 2280 slots (two NVMe/SATA SSD, one NVMe/WWN04)
Expansion Slots
- Two M.2 2280 M key sockets for NVMe/SATA SSD
- One M.2 2280 M key socket for NVMe SSD or WWN04
- One M.2 2230 Type E key socket for Wi-Fi
Dimensions and Power Supply
- 190(L) x 165(W) x 43(H) mm chassis
- 120W power adapter (input: 100-240V AC, 19V 6.32A)
Operating System Support and Temperature Range
- Windows 11 64-bit OS, Linux support available
- Operating temperature range: 0°C to 50°C
Warranty
Warranty
Manufacturer warranty 36 Months
