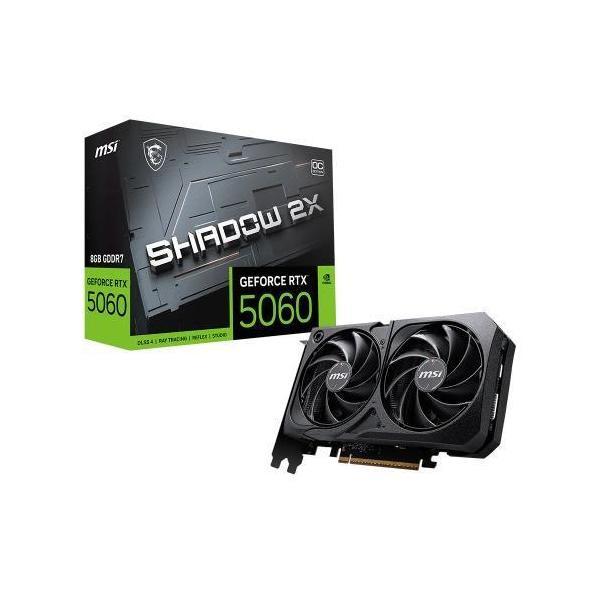

MSI nVidia GeForce RTX 5060 8G SHADOW 2X OC PCI Express® Gen 5 x16 Boost: 252...

The MSI nVidia GeForce RTX 5060 8G SHADOW 2X OC is a high-performance graphics card designed for gaming and multimedia enthusiasts. It features an NVIDIA® GeForce RTX™ 5060 GPU with 3840 CUDA cores, running at a boost clock of up to 2527 MHz.

Display

• DisplayPort x 3 (v2.1b)
• HDMI™ x 1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

Performance

• Core Clocks: Extreme Performance - 2535 MHz (MSI Center), Boost - 2527 MHz
• CUDA® CORES: 3840 Units
• Memory Speed: 28 Gbps
• Memory: 8GB GDDR7
• Memory Bus: 128-bit

Connectivity and Compatibility

• Interface: PCI Express® Gen 5 x16 (uses x8)
• HDCP Support: Y
• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• G-SYNC® technology: Y
• Digital Maximum Resolution: 7680 x 4320
• Maximum Displays: 4

Features

• Dual Fan with TORX FAN 5.0 for high-pressure airflow and cooling efficiency.
• Reinforcing Backplate with flow-through design for additional ventilation.
• Zero Frozr technology to eliminate noise at low temperatures.
• Fuse protection against electrical damage.
• DrMOS power stage solutions for efficient voltage control.
• Included software: MSI Center and Afterburner for real-time monitoring and overclocking.

Power Requirements

• Power consumption: 145 W
• Power connectors: 8-pin x 1
• Recommended PSU: 550 W

Dimensions and Weight

• Card Dimension (mm): 197 x 120 x 40 mm
• Weight (Card / Package): 493 g / 814 g
