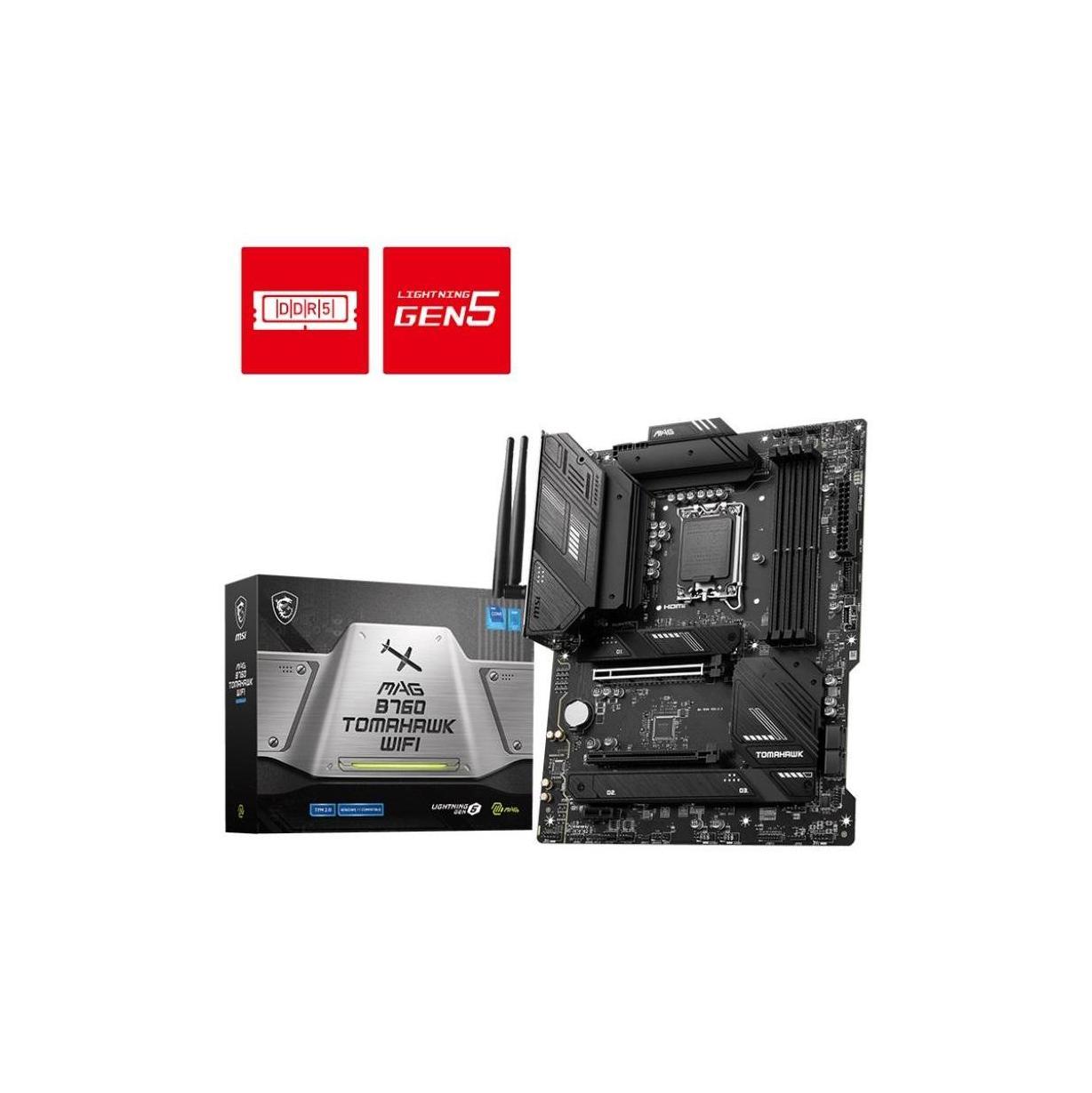

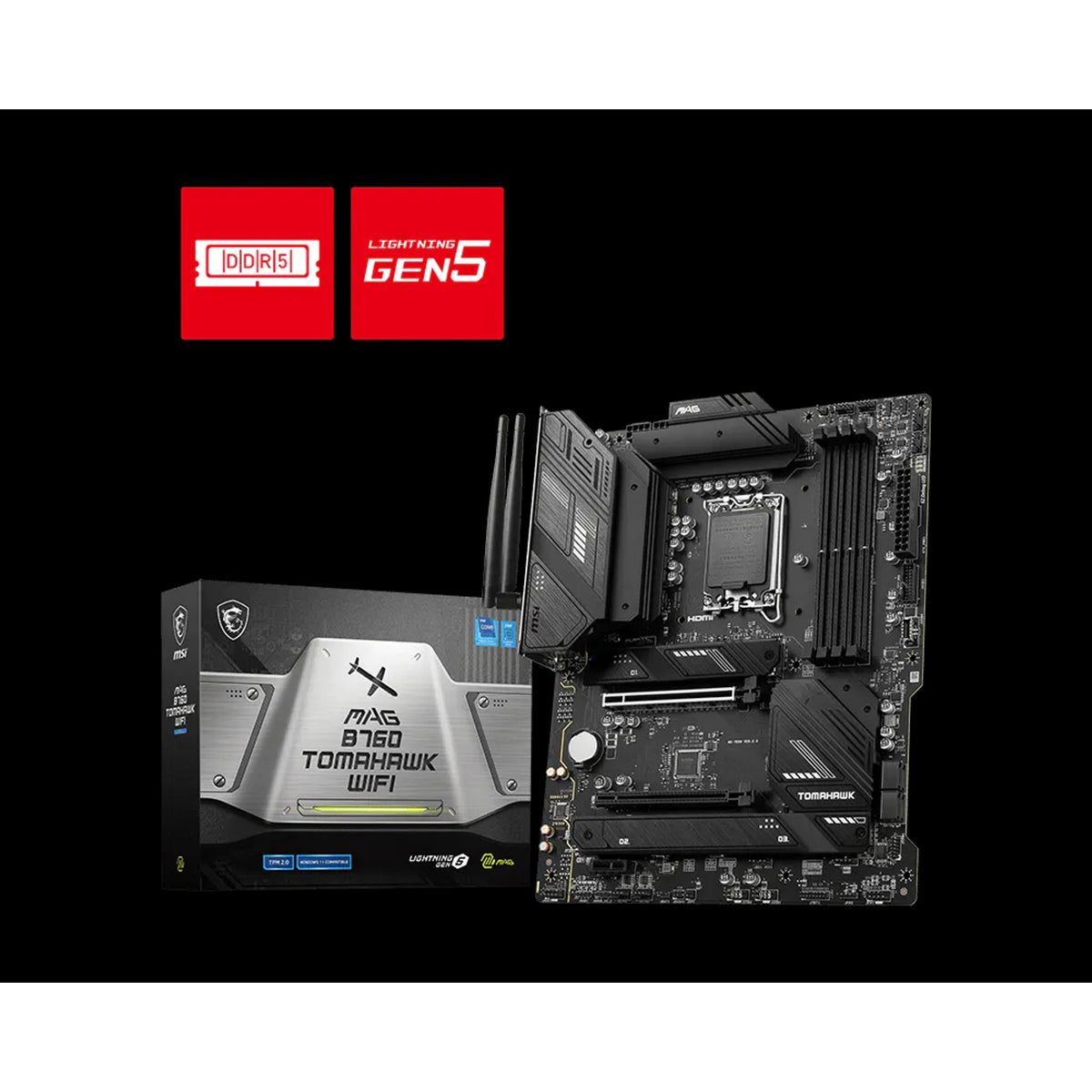

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
Hurry up, only 9 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | LGA 1700 (socket H6) |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Form Factor | ATX |
| Motherboard Chipset Family | Intel |
Expansion & Slots
| M.2 Slots | 3 |
|---|---|
| Expansion Slot Types | PCIe, DIMM, M.2 |
Ports & Connectivity
| Wi-Fi Standard | 802.11ac, 802.11a, 802.11ax, Other |
|---|---|
| USB Standard | USB 1.0, USB 3.2 gen 2x2, USB 2.0 |
| USB Connector Type | USB Type-A, USB Type-C |
Other
| Form Factor | ATX |
|---|---|
| Colour | Black |
Product Details
Product Details
The MSI MAG B760 TOMAHAWK WIFI is an ATX motherboard designed for 12th and 13th Generation Intel Core processors, Pentium Gold, and Celeron processors with LGA1700 sockets. It supports up to 192GB of DDR5 memory at speeds ranging from JEDEC standard 4800MHz to overclocked 7000+ MHz.
Performance
- CPU Support: Intel Core, Pentium Gold, Celeron (LGA1700)
- Memory Type: DDR5
- Maximum Memory Capacity: 192GB
- Overclocking Frequency: Up to 7000+ MHz (OC) with 1DPC 1R configuration
Display
- HDMI Support: HDMITM 2.1, maximum resolution of 4K 60Hz
- DisplayPort Support: DP 1.4, maximum resolution of 8K 60Hz
Connectivity
- USB Ports:
- 2x USB 2.0 (Rear)
- 2x USB 2.0 (Front)
- 4x USB 3.2 Gen1 Type A (Front)
- 4x USB 3.2 Gen2 Type A (Rear)
- 1x USB 3.2 Gen2 Type C (Front)
- 1x USB 3.2 Gen2x2 Type C (Rear)
Expansion Slots
- PCI-E x16: 2 slots supporting x16/x4 configurations
- PCI-E x1: 1 slot
Storage
- M.2 Ports:
- 3x M.2, supporting PCIe 4.0 and SATA modes
- SATA Ports: 4 ports at 6Gbps
Operating System Support
Windows® 11 64-bit, Windows® 10 64-bit
The motherboard measures ATX form factor dimensions of 243.84mm x 304.8mm.
