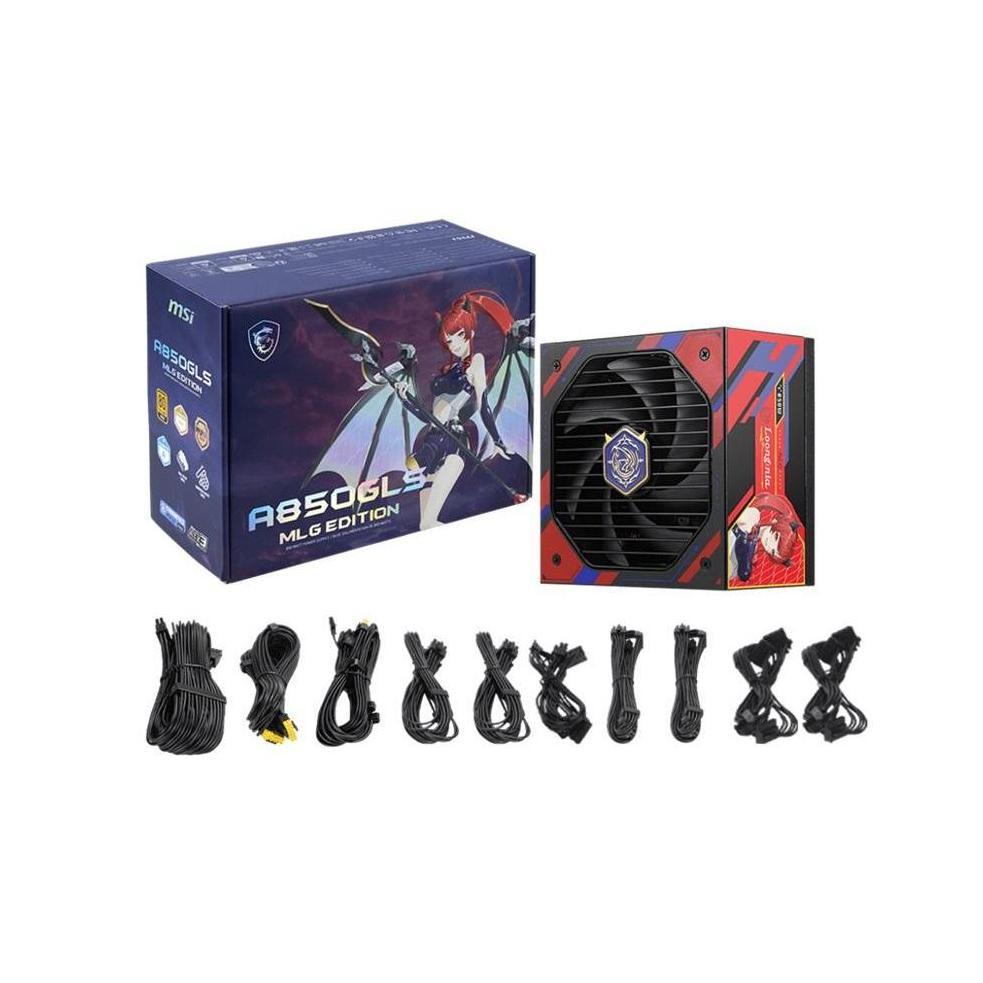

MSI MAG A850GLS MLG EDITION Gold Fully Modular Silent Power Supply MLG Edition

The MSI MAG A850GLS MLG EDITION is a gold fully modular silent power supply designed for high-performance systems, featuring support for Nvidia® GeForce RTX™ 50 series graphics cards and an optimized sound level to ensure minimal noise during operation. This PSU boasts an 80 PLUS Gold certification with up to 90% efficiency.

Display

• No display features applicable

Performance

• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Fan Size: 135 mm
• Fan Bearing: Fluid Dynamic Bearing
• Main Capacitor Temperature: 105°C
• Power Excursion: 1870W (*up to 220% of the PSU's rated power for 100μs)

Connectivity and Ports

• ATX (24 pin): 1
• EPS (8 pin): 1
• PCI-E 5.1 (16 pin): 1 (600W)
• PCI-E (6+2 pin): 4
• SATA (15 pin): 8
• Peripheral (4 pin): 3
• FDD (4 pin): 1

Protection and Safety Features

• OCP: Over Current Protection
• OTP: Over Temperature Protection
• OPP: Over Power Protection
• SCP: Short Circuit Protection
• OVP: Over Voltage Protection
• UVP: Under Voltage Protection
• SIP: Surge Immunity Protection
• NLO: No Load Operation

Dimensions and Weight

• Dimensions (DxWxH): 150 x 150 x 86 mm

Electrical Specifications

• PFC Type: Active PFC
• Input Voltage Range: 100-240V~
• Power Wattage: 850W
• Input Frequency Range: 47-63 Hz

Cable Management and Design

• Dual-color 12V-2x6 cable
• Main 105oC capacitor
• Embossed Jacket Cables: cables are more bending and routing-friendly
• Fully Modular Design: allows for easy cable management and reduced clutter
