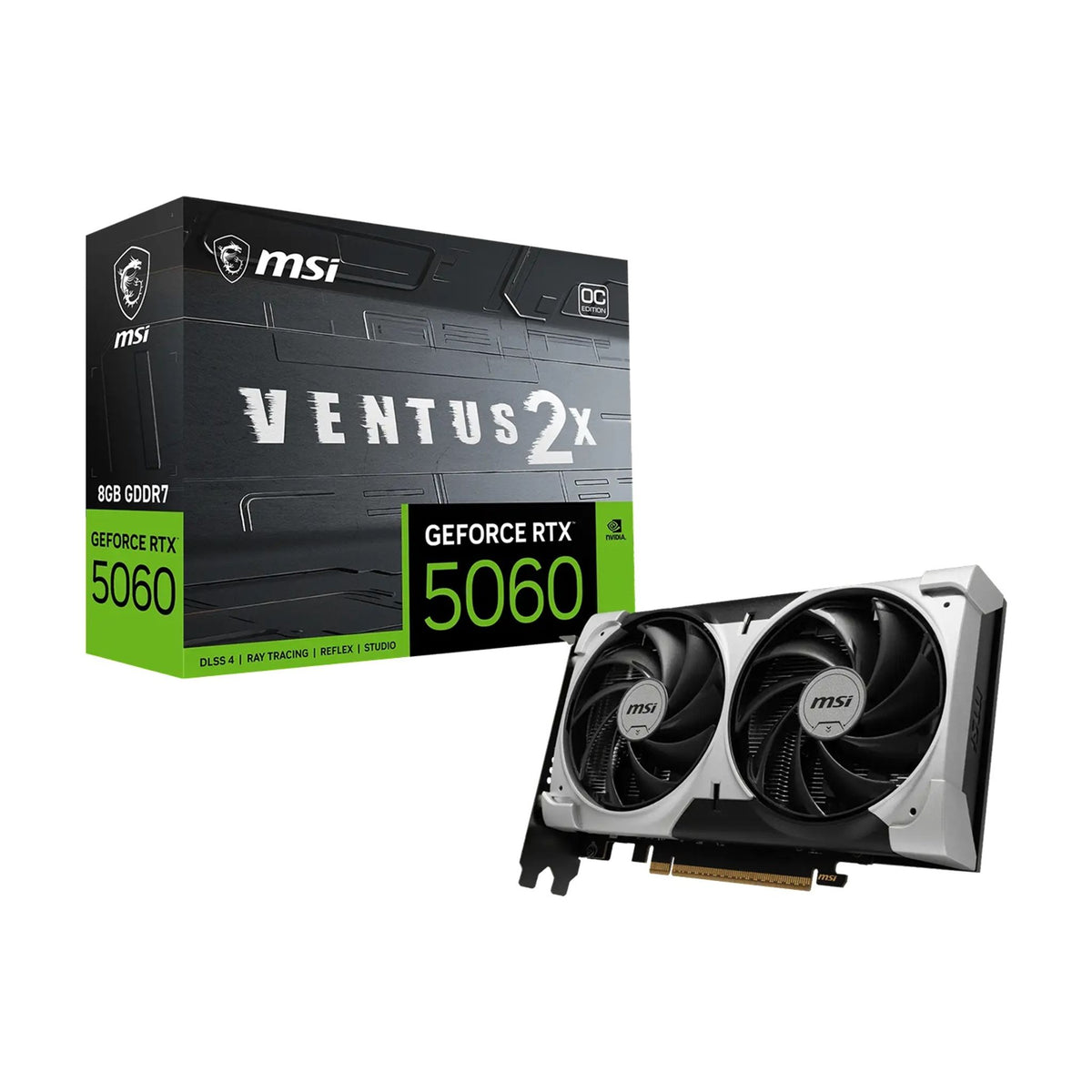

MSI GeForce RTX 5060 Ti VENTUS 2X OC 8GB GDDR7 PCIe 5.0 Graphics Card

The MSI nVidia GeForce RTX™ 5060 8G VENTUS 2X OC V1 is a high-performance graphics card designed for gaming and multimedia applications. It features the NVIDIA Blackwell architecture with DLSS 4.5 technology, providing enhanced performance and efficiency.

Display

• Output: DisplayPort x 3 (v2.1b), HDMI™ x 1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
• Digital Maximum Resolution: 7680 x 4320
• G-SYNC® technology: Y

Performance

• Graphics Processing Unit (GPU): NVIDIA® GeForce RTX™ 5060
• Core Clocks: Extreme Performance: 2535 MHz (MSI Center), Boost: 2527 MHz
• CUDA® CORES: 3840 Units
• Memory Speed: 28 Gbps
• Memory: 8GB GDDR7
• Memory Bus: 128-bit

Connectivity and Interface

• Interface: PCI Express® Gen 5 x16 (uses x8)
• HDCP Support: Y

Cooling and Design

• TORX Fan 5.0: Fan blades linked by ring arcs for high-pressure airflow.
• Heat Pipes: Efficient heat transfer design.
• Reinforcing Backplate: Features an airflow vent allowing exhaust air to pass through directly.

Software Support

• MSI Center: Exclusive MSI software for real-time monitoring and optimization.
• Afterburner: Widely used graphics card overclocking software.

Power Specifications

• Power Consumption: 145 W
• Power Connectors: 8-pin x1
• Recommended PSU: 550 W

Physical Specifications

• Card Dimension (mm): 197 x 120 x 41 mm
• Weight (Card / Package): 548 g / 840 g

Software Support

• DirectX Version: 12 Ultimate
• OpenGL Version: 4.6
• Maximum Displays: 4
