MSI

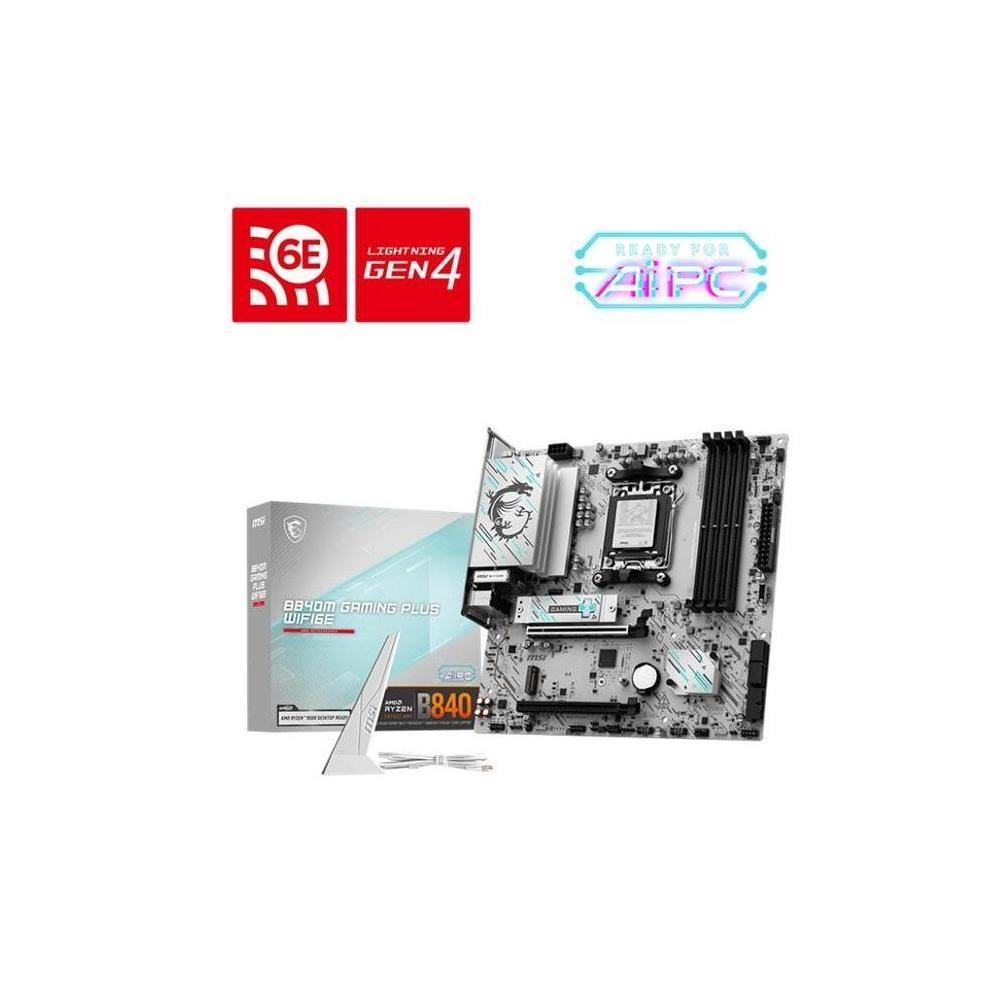

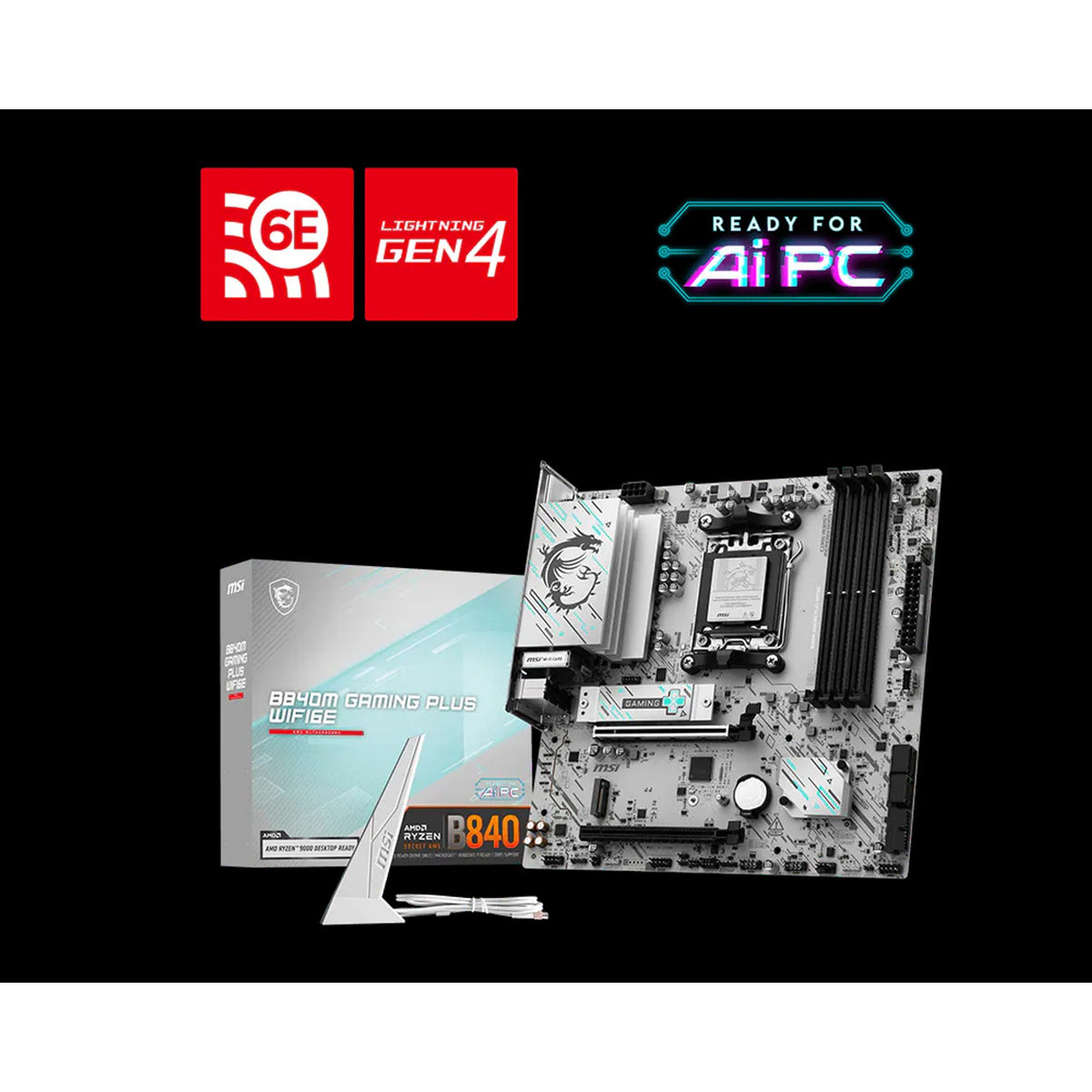

MSI B840M GAMING PLUS WIFI6E AM5 ATX Motherboard 4x DDR5 2x M.2 WiFi 6E
Regular price
Sale price
$260.48
Regular price
$272.05
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | Socket AM5 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX, microATX |
|---|---|
| Motherboard Form Factor | ATX |
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | M.2, PCIe |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11b, 802.11n, 802.11a, 802.11g, 802.11ax, 802.11ac |
|---|---|
| USB Standard | USB 2.0 |
| USB Connector Type | USB Type-A, USB Type-C |
Other
| Series | Gaming Plus |
|---|---|
| Colour | Silver |
Product Details
Product Details
The MSI B840M GAMING PLUS WIFI6E is an AM5 ATX motherboard designed for AMD Ryzen™ processors. It supports DDR5 memory and features advanced connectivity options.
Display
- HDMI Support: HDMI 2.1, maximum resolution of 4K 60Hz*
Performance
- CPU Support: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
- Memory Slots: 4x DDR5 UDIMM, Maximum Memory Capacity: 256GB
- MEMORY Support: DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Pci-E Slots: 2x PCI-E x16 slot, PCIe 4.0 supports up to x16/x8/x4 (From CPU)
Storage
- M.2 Ports: 2x M.2 supporting PCIe 4.0 x4 for NVMe SSDs
- SATA Ports: 4x SATA 6G, RAID Supports: RAID 0, RAID 1 and RAID 10
Connectivity
- Lan: Realtek® 8125D 2.5G LAN
- Wireless: Wi-Fi 6E Solution, MU-MIMO TX/RX, up to 2.4Gbps (2.4GHz / 5GHz / 6GHz*)
- Bluetooth: Bluetooth® 5.3
Operating System Support
- OS Support: Windows® 11 64-bit
