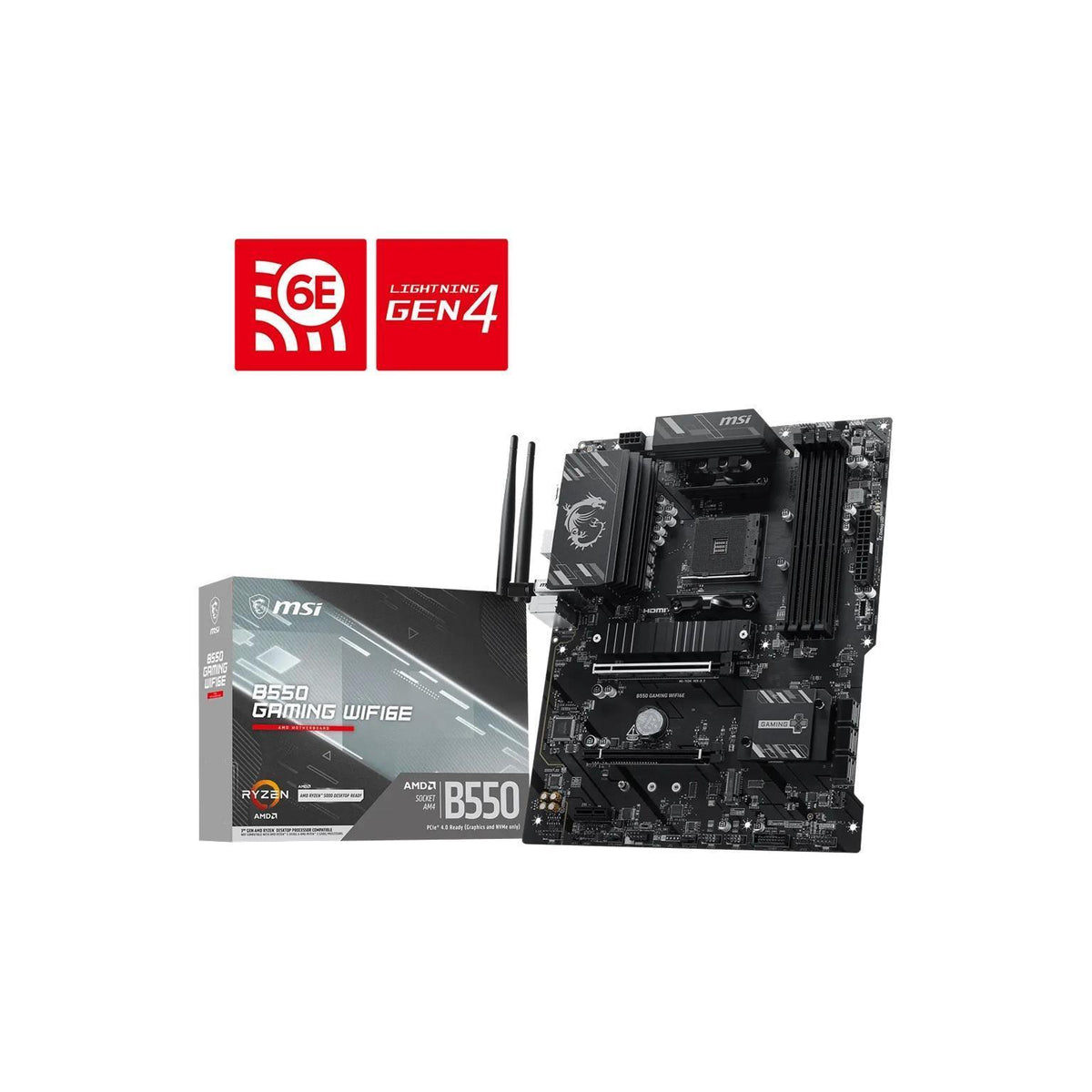

MSI B550 GAMING WIFI 6E AMD AM4 DDR4 128GB PCIe 4.0 2x M.2 Wi-Fi 6E ATX

The MSI B550 GAMING WIFI 6E is a high-performance motherboard designed for AMD Ryzen processors, offering extensive connectivity and advanced features tailored for gaming enthusiasts.

Chipset & CPU Support

• Chipset: AMD B550
• CPU Compatibility: Supports AMD Ryzen™ 5000 Series, 4000 G-Series, and 3000 Series processors (excluding certain models)
• Socke: AM4

Memory

• Type: DDR4
• Capacity: Up to 128GB
• Frequencies: Supports up to 4800+ MHz (A-XMP OC MODE)
• ECC Support: Non-ECC and ECC UDIMM memory (non-ECC mode)

Display Outputs

• HDMI™: 1x HDMI™ port, maximum resolution of 4K 30Hz
• DisplayPort: 1x DisplayPort, maximum resolution of 4K 60Hz

SLOTs

• PCI-E x16: 2 slots (Gen 4.0 and Gen 3.0)
• PCI-E x1: 1 slot (Gen 3.0)

Audio

• Codec: Realtek® ALC897, 7.1-Channel High Definition Audio

Storage

• M.2: 2x M.2 slots (PCIe 4.0 and PCIe 3.0)
• SATA: 6 ports, SATA 6G

USB Ports

• Rear USB 2.0: 4x ports
• Front USB 2.0: 4x ports
• Rear USB 5Gbps Type A: 2x ports
• Front USB 5Gbps Type A: 2x ports
• Front USB 5Gbps Type C: 1x port
• Rear USB 10Gbps Type A: 1x port
• Rear USB 10Gbps Type C: 1x port

Lan & Wireless

• Ethernet: Realtek® 8111H, 1G LAN
• Wi-Fi: Wi-Fi 6E Solution (Dual-band 1T1R mode, MU-MIMO RX, supports 2.4GHz/5GHz/6GHz bands)
• Bluetooth®: Version 5.3

Other Features

• Addressable V2 RGB LED connector: 2x ports
• RGB LED connector: 1x port
• TPM pin header: Supports TPM 2.0
• Operating System Support: Windows® 11 64-bit

Physical Specifications

• Form Factor: ATX
• Dimensions: 243.84mm x 304.8mm
