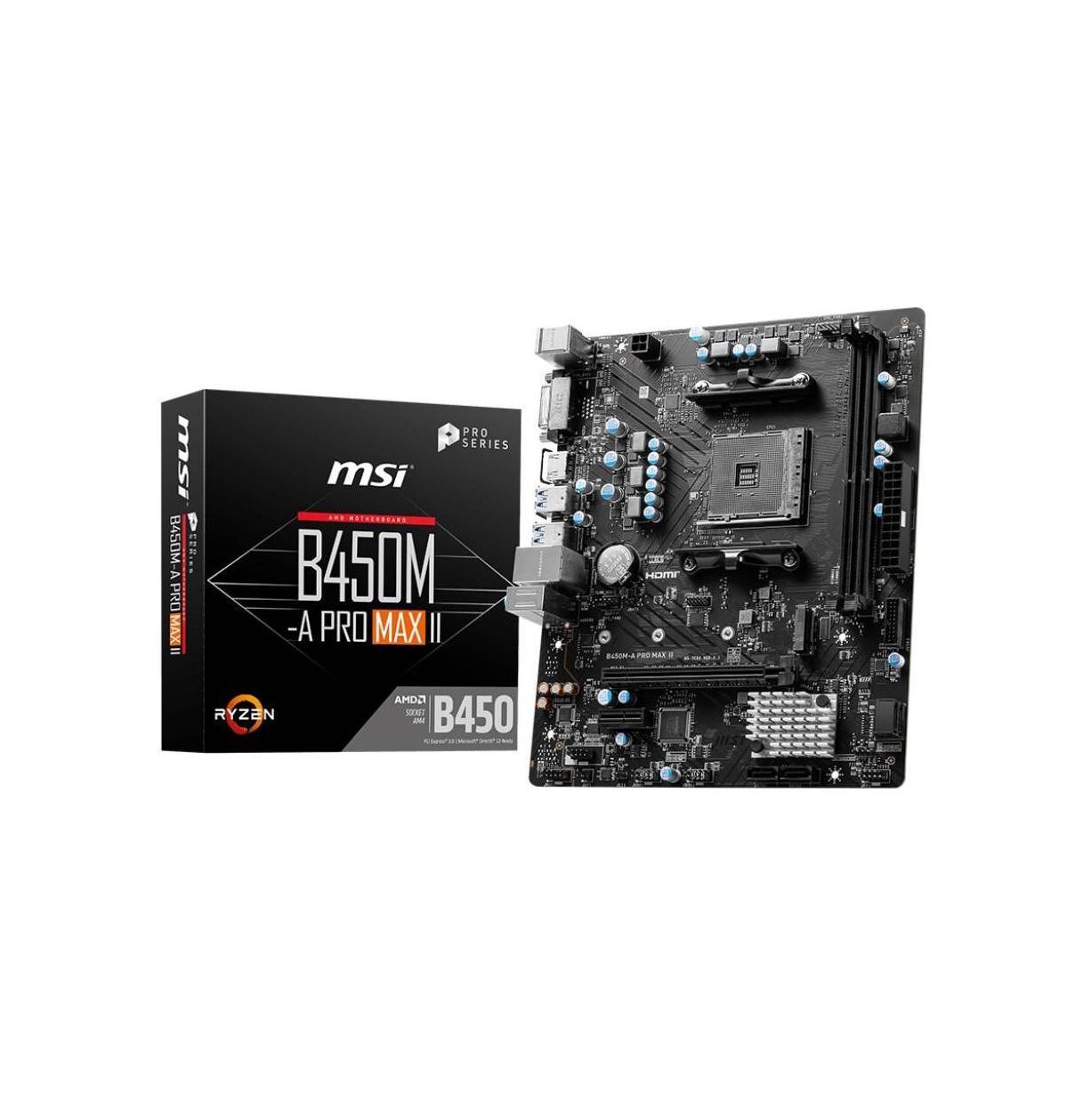

MSI B450M-A PRO MAX II AMD M-ATX Motherboard AM4 2x DDR4 64GB 4x SATA 2.5G LAN
Available in stock (271)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | Socket AM4 |
|---|
Memory
| Memory Technology | DDR4 |
|---|
Motherboard
| Motherboard Form Factor | Micro-ATX |
|---|---|
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | PCIe, SATA, M.2 |
|---|
Ports & Connectivity
| USB Standard | USB 3.1 gen 1, USB 2.0 |
|---|---|
| USB Connector Type | USB Type-A |
Dimensions
| Length | 266 mm |
|---|---|
| Width | 262 mm |
| Height | 56 mm |
Other
| Series | B450M-A PRO MAX II |
|---|---|
| Colour | Black |
Product Details
Product Details
The MSI B450M-A PRO MAX II is an M-ATX motherboard designed for AMD processors and supports a wide range of Ryzen series CPUs. It features robust connectivity options and advanced performance enhancements.
Display Interface Support
- DVI-D
- HDMI™ 2.0b (4K@60Hz)
Memory
- 2 DIMMs, Dual Channel DDR4-4133+MHz (OC)
- Supports up to 64GB capacity
Storage
- 1x M.2 Gen3 x4 32Gbps slot
- 4x SATA 6Gb/s ports
Connectivity
- 6x USB 3.2 Gen 1 (5Gbps) Type-A ports
- 6x USB 2.0 ports
- Realtek® 8125BG 2.5G LAN
Expansion Slots
- 1x PCIe 3.0 x16 slot
- 1x PCIe 2.0 x1 slot
AUDIO
- 8-Channel (7.1) HD Audio with Audio Boost
The motherboard includes advanced features such as Core Boost, DDR4 Boost, Turbo M.2, and X-Boost software for performance optimization.
Warranty
Warranty
Manufacturer warranty 36 Months
