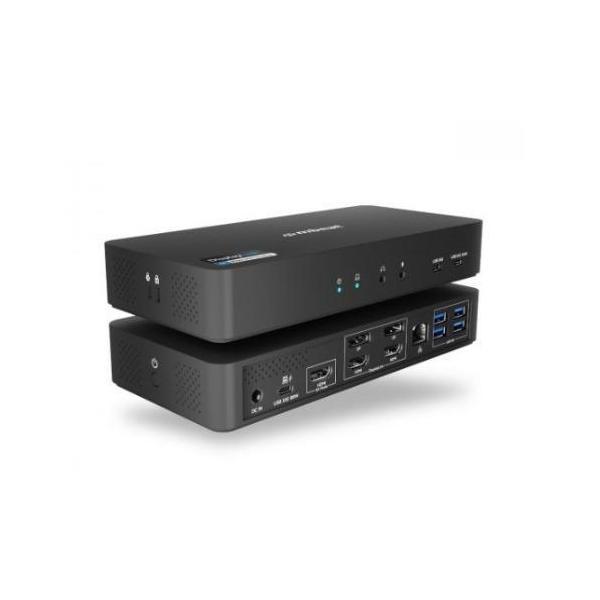

mbeat® mbeat USB-C Triple 4K Display Docking Station Triple 4K@60Hz 1 × HDMI ...

The mbeat® mbeat USB-C Triple 4K Display Docking Station is designed to enhance your workspace with triple 4K@60Hz display capabilities and versatile connectivity options.

Display

• HDMI Output: 1 × HDMI 2.0 (USB-C DP-Alt)
• Digital Video Outputs: 2 × DP 1.2 / HDMI 2.0 (DisplayLink®)
• Maximum Resolution: Triple 4K@60Hz

Performance and Connectivity

• Host Port: 1 × USB-C 10Gbps upstream with PD passthrough (up to 96W)
• USB Ports:
  • 2 × USB-C 10Gbps (1 with 20W PD charging)
  • 4 × USB-A 5Gbps
• Networking: 1 × RJ45 Gigabit Ethernet
• AUDIO: 3.5 mm headphone jack and microphone jack
• Security Control: K-Lock slot, power on/off button
• Power Supply: 135W power adapter included

Product Details

• Dimensions: 202.85mm × 95mm × 32.6 mm
• Weight: 0.37kg
• Cable Included: 1m USB-C to C Cable
• Package Dimensions: 255mm × 130mm × 89.5 mm
• Package Weight: 1.13kg
• Package Contents: USB-C Triple 4K Docking Station, USB-C to C Cable, 135W Power Adapter, Instruction Manual, Product Registration Card

Compatibility and Limitations

• Operating Systems: Windows 7 / 8.1 / 10 / 11; Mac macOS 10.14 Mojave / 10.15 Catalina / 11 Big Sur / 12 Monterey / 13 Ventura / 14 Sonoma (M1/M2/M3 supported); Linux Ubuntu 20.04+ / Fedora 34+ / Debian 11+; Chrome OS R55+ / Chromebooks since Jan 2015 (Exynos Tegra models excluded)
• Works with: USB-C laptops that support DP-Alt mode, including MacBook Pro / Air (M1, M2, M3 series); Dell® XPS series; ThinkPad X / T series; HP® EliteBook Spectre series; Microsoft® Surface devices with USB-C
• Note: A DisplayLink® driver must be installed on your laptop or PC before the dock can function. Drivers are available at Synaptics website.

The mbeat USB-C Triple 4K Display Docking Station reduces desk clutter, simplifies setup, and boosts productivity for nearly any workspace.
