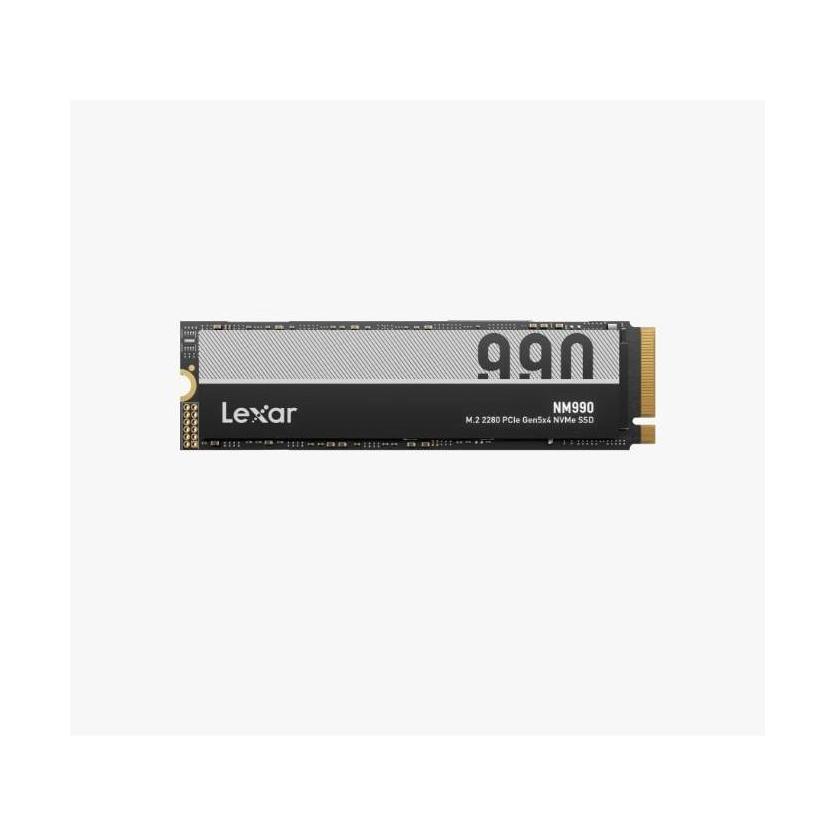

Lexar LNM990X 2TB NVMe M.2 2280 PCIe Gen4x4 SSD up to 14000MB/s read

The Lexar LNM990X 2TB NVMe M.2 2280 PCIe Gen5x4 SSD offers high-speed performance with sequential read speeds up to 14,000MB/s and write speeds up to 10,000MB/s. It features a robust design with shock resistance of 1500G for half sine wave and vibration resistance at 20G over a range of 10~2000Hz.

Performance

• Sequential read speed: up to 14,000MB/s
• Sequential write speed: up to 10,000MB/s
• Random read IOPS: up to 2000K
• Random write IOPS: up to 1400K

Storage

• Total Capacity: 2TB
• TBW (Total Bytes Written): 1500TBW
• MTBF (Mean Time Between Failures): 1,500,000 Hours

Connectivity and Form Factor

• Interface: PCIe Gen5x4
• Form Factor: M.2 2280

Environmental Specifications

• Operating Temperature: 0° to 70°C (32°F to 158°F)
• Storage Temperature: -40° to 85°C (-40°F to 185°F)
• Shock Resistance: 1500G, duration 0.5ms, Half Sine Wave
• Vibration Resistance: 10~2000Hz, 1.5mm, 20G, 1Oct/min, 30min/axis (X,Y,Z)

Dimensions

• Width x Length x Height: 80 x 22 x 2.45 mm / 3.15”x0.87”x0.10”

The Lexar LNM990X SSD comes with a 5 year limited warranty.
