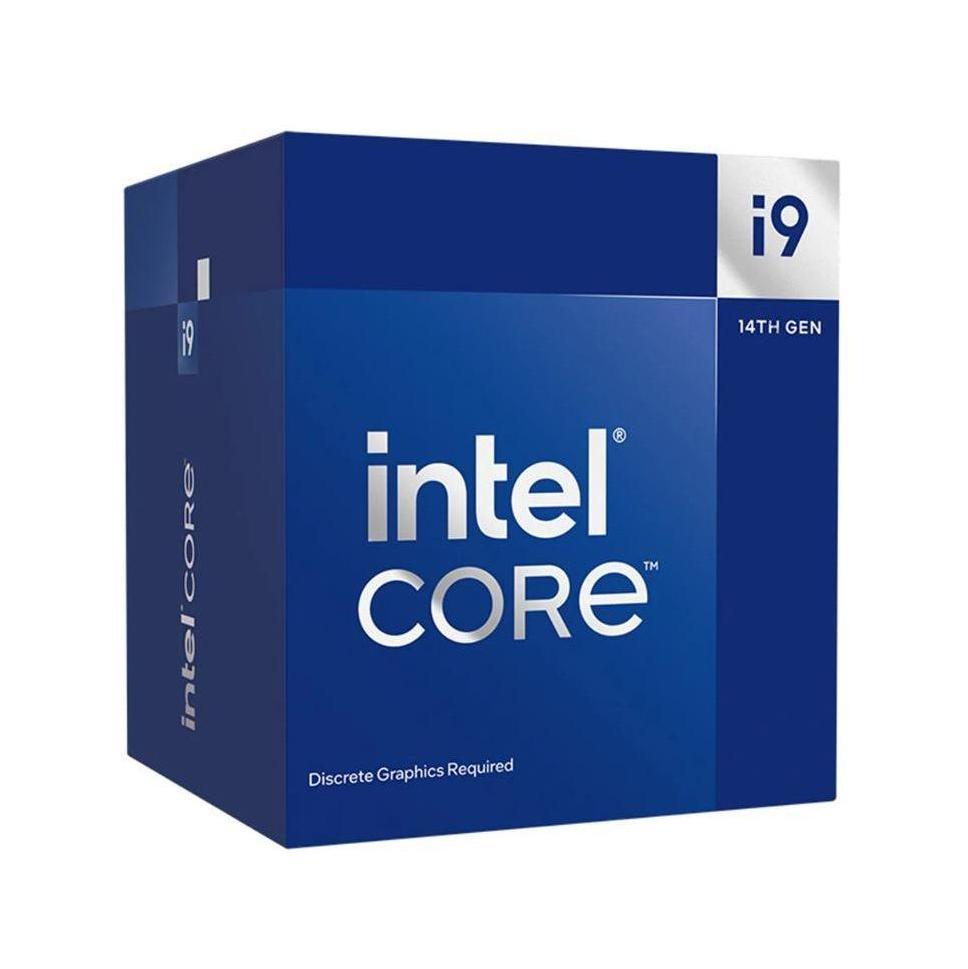

Intel i9 14900F CPU 4.3GHz (5.8GHz Turbo) 14th Gen LGA1700 24-Cores 32-Thread...

The Intel i9 14900F is a high-performance desktop processor from the 14th generation Raptor Lake series, featuring an LGA1700 socket and supporting up to 24 cores with 32 threads. It offers a base frequency of 4.3 GHz, with a maximum turbo boost frequency of 5.8 GHz.

Performance

• Total Cores: 24 (8 Performance-cores + 16 Efficient-cores)
• Total Threads: 32
• Max Turbo Frequency: 5.8 GHz
• Intel Thermal Velocity Boost Frequency: 5.8 GHz
• Turbo Boost Max Technology 3.0 Frequency: 5.6 GHz
• Performance-core Base Frequency: 2 GHz
• Efficient-core Base Frequency: 1.5 GHz
• Performance-core Max Turbo Frequency: 5.4 GHz
• Efficient-core Max Turbo Frequency: 4.3 GHz

Memory Specifications

• Max Memory Size (dependent on memory type): 192 GB
• Memory Types Supported: Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 89.6 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision: 4
• Max # of DMI Lanes: 8
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1x16+4 | 2x8+4
• Max # of PCI Express Lanes: 20

Package Specifications

• Sockets Supported: FCLGA1700
• Processor Base Power: 65 W
• Maximum Turbo Power: 219 W
• Total L2 Cache: 32 MB
• Total Intel® Smart Cache: 36 MB
• TJUNCTION: 100°C
• Package Size: 45.0 mm x 37.5 mm
