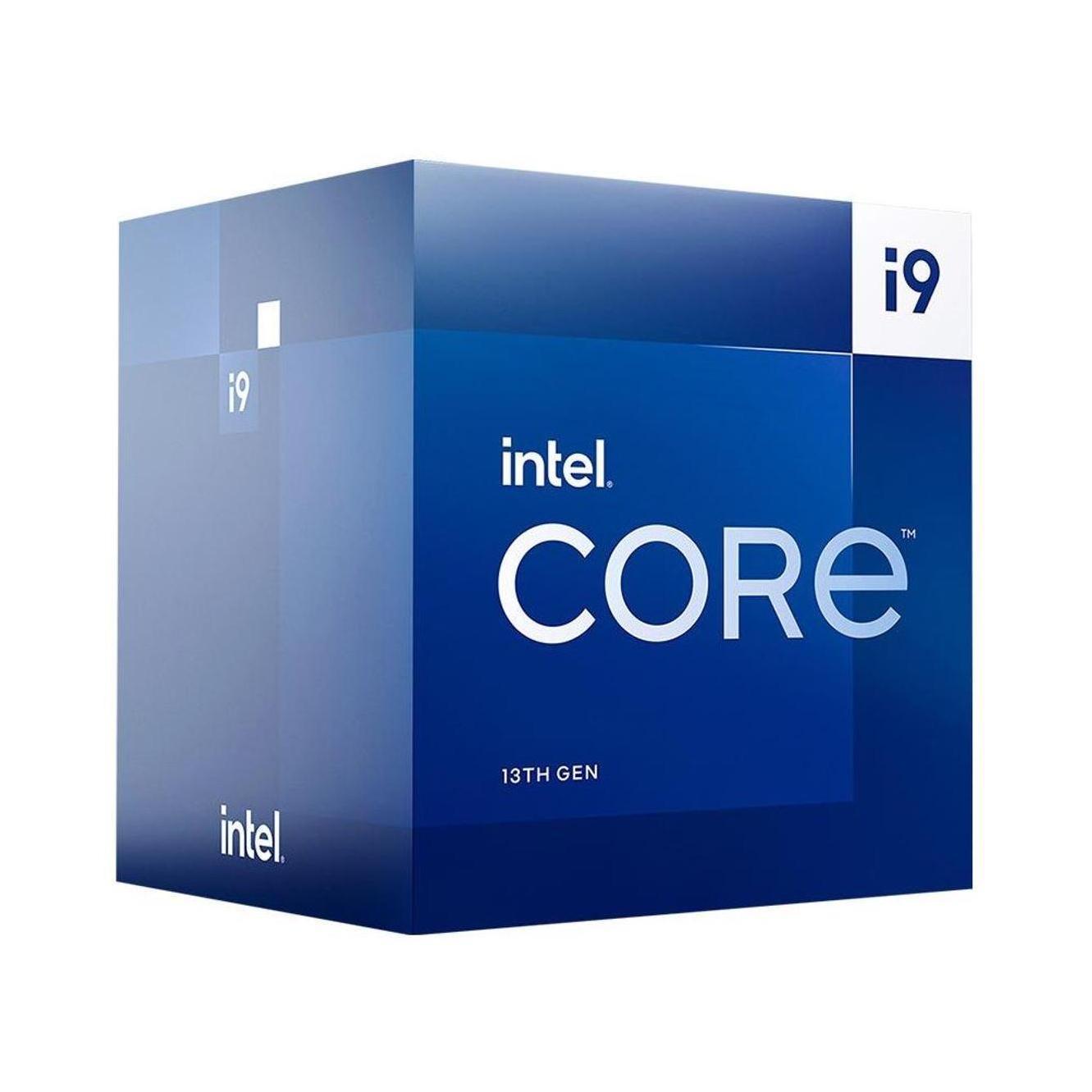

Intel Core i9 13900 24C 32T 4.2GHz LGA1700 65W CPU (5.6GHz Turbo) Raptor Lake

The Intel Core i9-13900 is a high-performance processor designed for demanding tasks and multitasking environments. It features 24 cores (8 performance cores and 16 efficient cores) with 32 threads, providing exceptional processing power.

Performance

• Total Cores: 24
• Performance-cores: 8
• Efficient-cores: 16
• Total Threads: 32
• Max Turbo Frequency: 5.60 GHz (Intel Thermal Velocity Boost)
• Turbo Boost Max Technology 3.0 Frequency: 5.50 GHz
• Performance-core Base Frequency: 2.00 GHz
• Efficient-core Base Frequency: 1.50 GHz
• Total Cache: 36 MB (including 32 MB Intel Smart Cache)

Memory and Bandwidth

• Max Memory Size: 128 GB
• Supported Memory Types: Up to DDR5 5600 MT/s, up to DDR4 3200 MT/s
• Maximum Turbo Power: 219 W
• Memory Bandwidth: 89.6 GB/s (up to two channels)
• ECC Memory Supported: Yes

Graphics and Display

• Processor Graphics: Intel UHD Graphics 770
• Graphics Base Frequency: 300 MHz
• Graphics Max Dynamic Frequency: 1.65 GHz
• Max Resolution (HDMI): 4096 x 2160 @ 60Hz
• Max Resolution (DP): 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
• Graphics Output: eDP 1.4b | DP 1.4a | HDMI 2.1
• Execution Units: 32

Connectivity and Scalability

• DMI Revision: 4
• Max # of DMI Lanes: 8
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1x16+4 | 2x8+4
• Max # of PCI Express Lanes: 20
• Scalability: 1S Only
