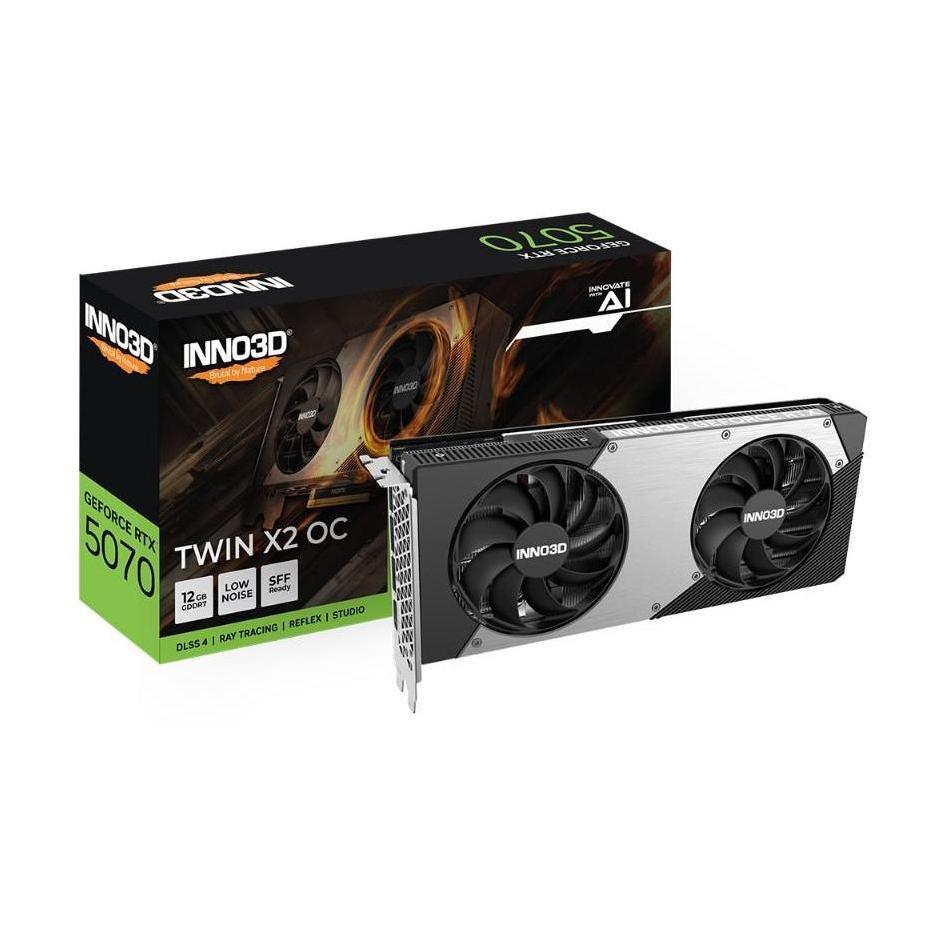

INNO3D GeForce RTX 5070 TWIN X2 OC 12GB GDDR7 2542MHz Graphics Card

The INNO3D nVidia GeForce RTX 5070 TWIN X2 OC is a high-performance graphics card designed for demanding tasks and gaming experiences. It features:

Display

• Maximum Digital Resolution: 4K at 480Hz or 8K at 165Hz with DSC (Display Stream Compression)
• HDCP 2.3 Support
• Standard Display Connectors: 3x DisplayPort 2.1b, 1x HDMI 2.1b

Performance

• CUDA Cores: 6144
• Boost Clock (MHz): 2542
• Base Clock (MHz): 2325

Memory

• Standard Memory Config: 12GB GDDR7
• Memory Interface Width: 192-bit
• Memory Bandwidth (GB/sec): 672 GB/sec
• Memory Clock Speed: 28Gbps

Connectivity and Support

• Thermal and Power Spec: Minimum System Power Requirement - 650W, Supplementary Power Connectors - 2x PCIe 8-pin cables (adapter in box) OR 300 W or greater PCIe Gen 5 cable
• NVIDIA Architecture: Blackwell
• Microsoft DirectX Support: 12 Ultimate
• Vulkan API: 1.4, OpenGL: 4.6
• NVIDIA Encoder: 1x Ninth Generation, NVIDIA Decoder: 1x Sixth Generation
• OS Certification: Windows 11 / 10, Linux, FreeBSD x86

Features and Support

• Real-Time Ray Tracing: Yes (4th Generation RT Cores - 94 TFLOPS)
• Tensor Cores: 5th Generation - 988 AI TOPS
• NVIDIA DLSS 4, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA G-SYNC™-Ready, Game Ready Drivers, NVIDIA Studio Drivers, NVIDIA GPU Boost™
• Bus Support: PCI Express Gen 5
• Multi Monitor Support up to 4 monitors
• NVIDIA ShadowPlay, Vulkan API 1.4, OpenGL 4.6

The card dimensions are Length - 250mm, Height - 116mm, Width - 41mm.
