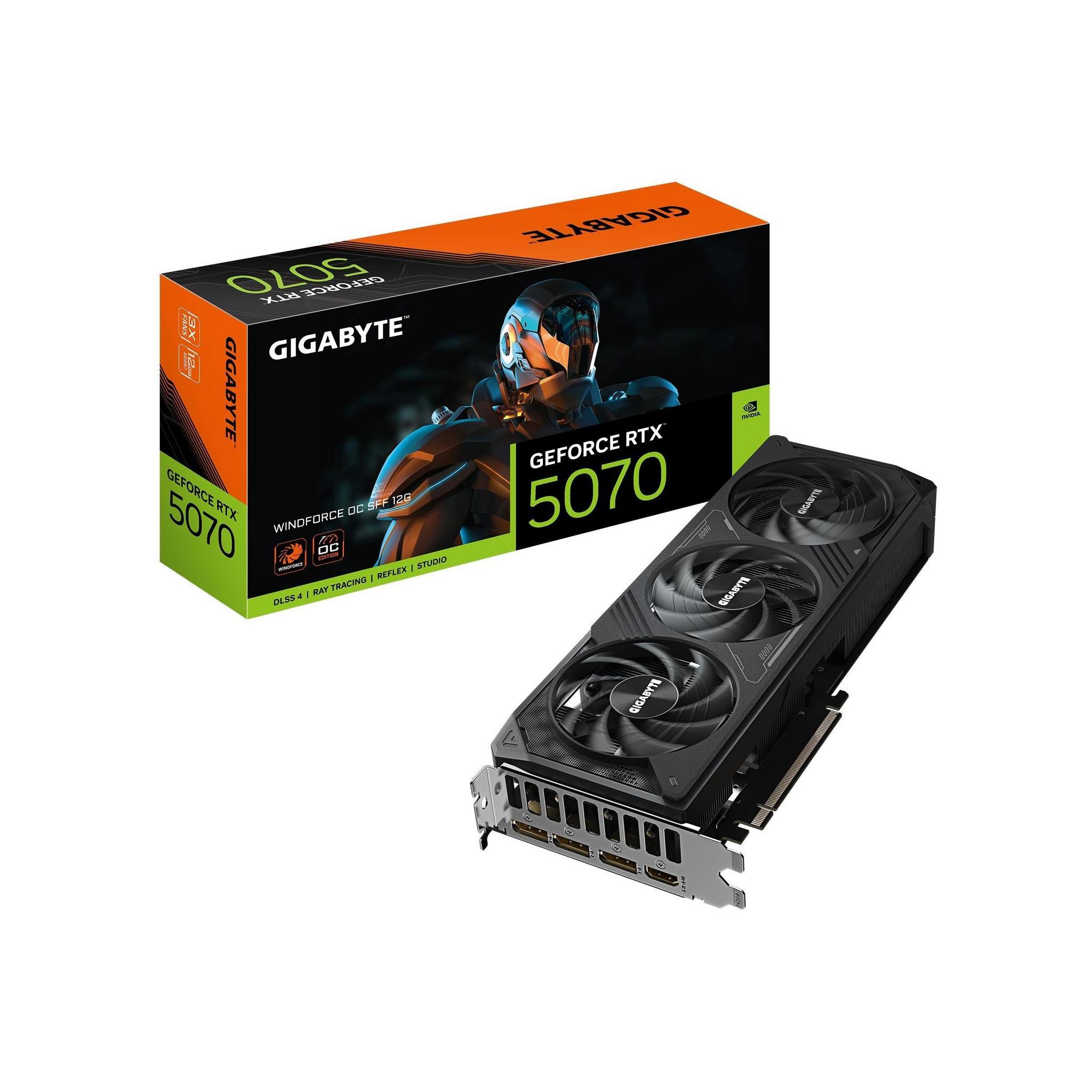

Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12GB GDDR7 2542MHz Graphics Card

The Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12GB GDDR7 2542MHz graphics card is designed for gamers and creators seeking powerful performance in a compact form factor. It features the NVIDIA Blackwell architecture, supporting DLSS 4 and offering superior AI performance with FP4.

Display

• Output: DisplayPort 2.1b *3, HDMI 2.1b *1
• Digital max resolution: 7680x4320

Performance

• Graphics Processing: GeForce RTX™ 5070
• Core Clock: 2542 MHz (Reference card: 2512 MHz)
• CUDA® Cores: 6144
• Memory Clock: 28 Gbps
• Memory Size: 12 GB
• Memory Type: GDDR7
• Memory Bus: 192 bit
• Card Bus: PCI-E 5.0

Connectivity and Power

• Recommended PSU: 750W
• Power Connectors: 16 Pin*1
• Accessories: Quick guide, 1x 12V-2x6 to 2x PCIe 8pin adapter

Cooling System

• WINDFORCE cooling system: Combines server-grade thermal conductive gel, Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, and 3D active fans.
• Hawk Fan: Unique blade design inspired by an eagle's wing for reduced air resistance and noise levels.
• Graphene Nano Lubricant: Extends sleeve bearing fan life by up to 2.1 times, approaching the durability of double ball bearings while remaining quieter.
• Alternate Spinning: Reduces turbulence between adjacent fans and increases airflow pressure.
• 3D Active Fan: Provides semi-passive cooling with fans turning off during low load or power games.
• LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE: Direct contact with the GPU for efficient heat transfer to the heatsink.
• SERVO-GRADE THERMAL CONDUCTIVE GEL: Ensures optimal cooling of critical components like VRAM and MOSFETs.

Additional Features

• NVIDIA SFF-Ready: Compact form factor with powerful performance.
• Reinforced Structure: Metal backplate for enhanced structural integrity.
