GIGABYTE

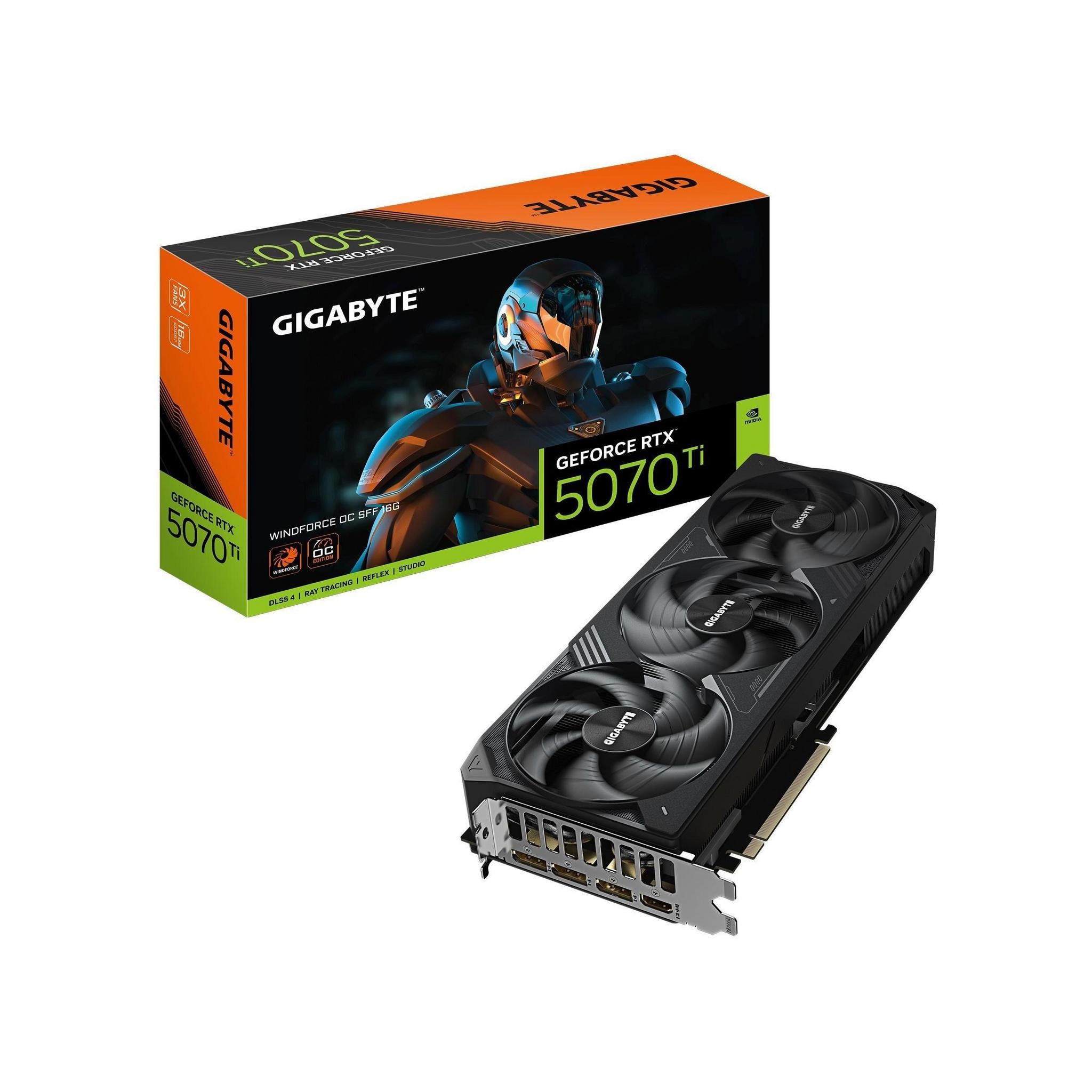

Gigabyte GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G 2497 MHz CUDA 8960 28 Gbps...
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 408 mm |
|---|---|
| Width | 236 mm |
| Height | 92 mm |
Product Details
Product Details
The Gigabyte GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G is a high-performance graphics card designed for gamers and creators. It features an advanced NVIDIA Blackwell architecture with DLSS 4 support, delivering exceptional performance and efficiency.
Display
- DisplayPort 2.1b x3
- HDMI 2.1b x1
Performance
- Graphics Processing: GeForce RTX™ 5070 Ti
- Core Clock: 2497 MHz (Reference: 2452 MHz)
- CUDA® Cores: 8960
- Memory Clock: 28 Gbps
- Memory Size: 16GB
- Memory Type: GDDR7
- Memory Bus: 256 bit
- Card Bus: PCI-E 5.0
- DirectX: DirectX 12
- OpenGL: OpenGL 4.6
Cooling System
- WINDFORCE cooling system: Combines server-grade thermal conductive gel, Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, and screen cooling.
- Hawk Fan: Unique blade design for reduced air resistance and noise levels.
- Graphene Nano Lubricant: Extends sleeve bearing fan life by 2.1 times.
- Alternate Spinning: Reduces turbulence between adjacent fans, increasing airflow pressure.
- 3D Active Fan: Provides semi-passive cooling and remains off during low load conditions.
Connectivity & Power Supply
- Recommended PSU: 750W
- Power Connectors: 16 pin*1
- Dual BIOS (Performance / Silent): Switch between performance and silent modes.
- NVIDIA SFF-Ready: Complies with NVIDIA's small form factor specification.
- Reinforced Structure: Metal backplate for structural integrity.
- Versatile VGA Holder: Customizable mounting options to prevent sagging and enhance aesthetics.
The Gigabyte GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G is a powerful graphics card that combines cutting-edge technology with robust cooling solutions, making it an excellent choice for demanding applications in gaming and content creation.
