GIGABYTE

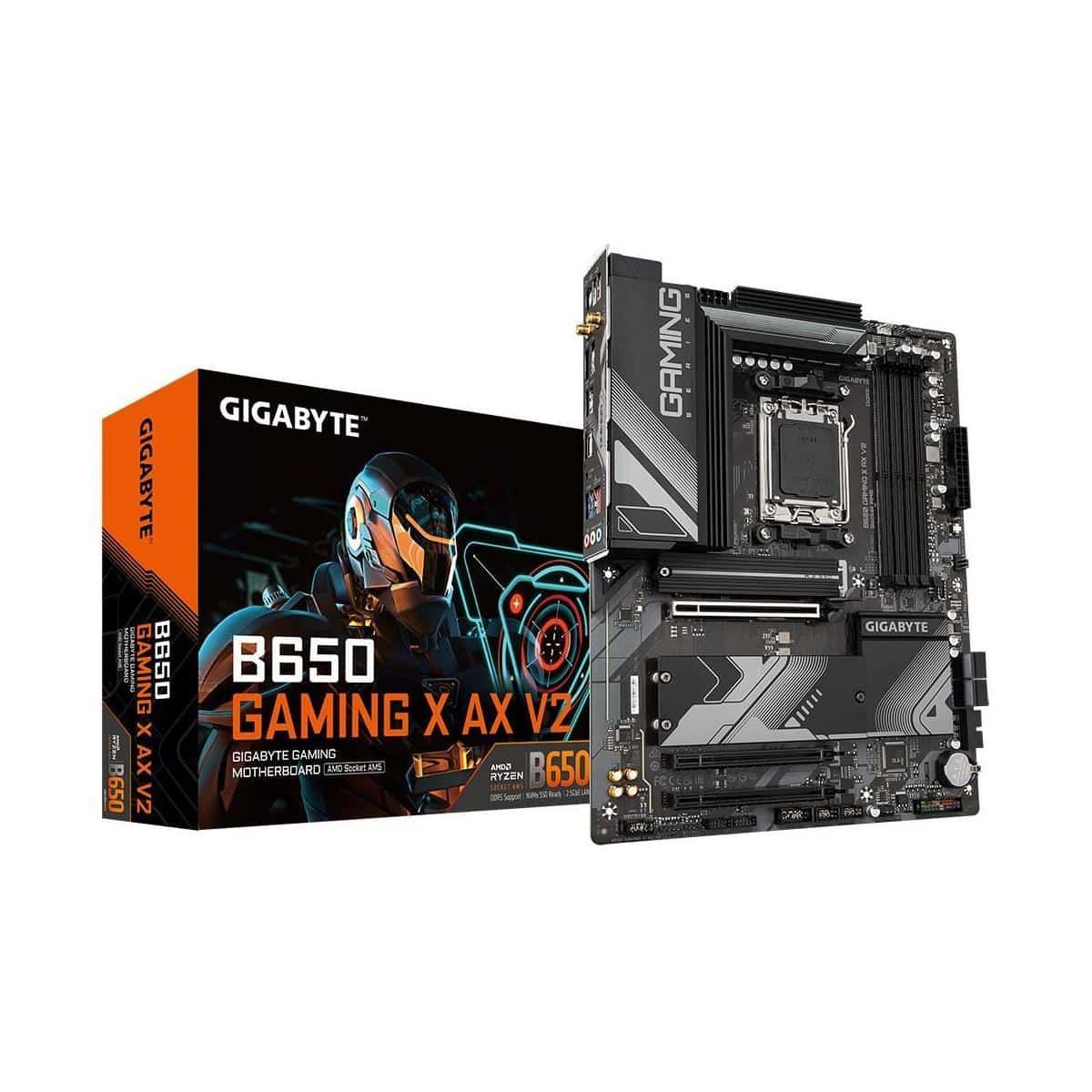

Gigabyte B650 GAMING X AX V2 AMD AM5 ATX Motherboard 4x DDR5 3x M.2
Regular price
$404.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Form Factor | ATX |
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | PCIe, SATA, M.2 |
|---|
Ports & Connectivity
| USB Type-C | Yes |
|---|---|
| Wi-Fi Standard | 802.11ax |
| USB Standard | USB 3.1 gen 1, USB 3.2 gen 2x1, USB 3.2 gen 2x2, USB 3.2 gen 2, USB 3.2 gen 1x1 |
| USB Connector Type | USB Type-C, USB Type-A |
Other
| Colour | Gray, Black |
|---|
Product Details
Product Details
The Gigabyte B650 GAMING X AX V2 is an ATX motherboard designed for AMD AM5 sockets, supporting the latest Ryzen™ 7000 and Ryzen™ 8000 series processors. It features a robust DDR5 memory support system with up to 192GB capacity (48GB single DIMM) and dual channel architecture.
Display
- 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz, compatible with DisplayPort 1.4 and HDR
- 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz, compatible with HDMI 2.1 and HDCP 2.3
Performance
- Supports AMD Ryzen™ 7000 series processors with PCIe 4.0 x16 mode
- Supports AMD Ryzen™ 8000 series Phoenix 1 and Phoenix 2 processors with PCIe 4.0 x8/x4 modes respectively
Connectivity
- Expansion slots: 1 x PCI Express x16 slot for graphics cards or NVMe SSDs, 2 x PCI Express x16 slots supporting PCIe 3.0 and running at x1 mode
- M.2 connectors: 3 x M.2 sockets (integrated in the CPU) supporting PCIe 5.0/x4/x2 modes for high-speed SSD connectivity
- Storage interfaces: 4 x SATA 6Gb/s ports, providing versatile storage options
- USB ports: 4 x USB 3.2 Gen1 Type-A ports, 1 x USB-C port (Gen 1), and 3 x USB 2.0 ports
