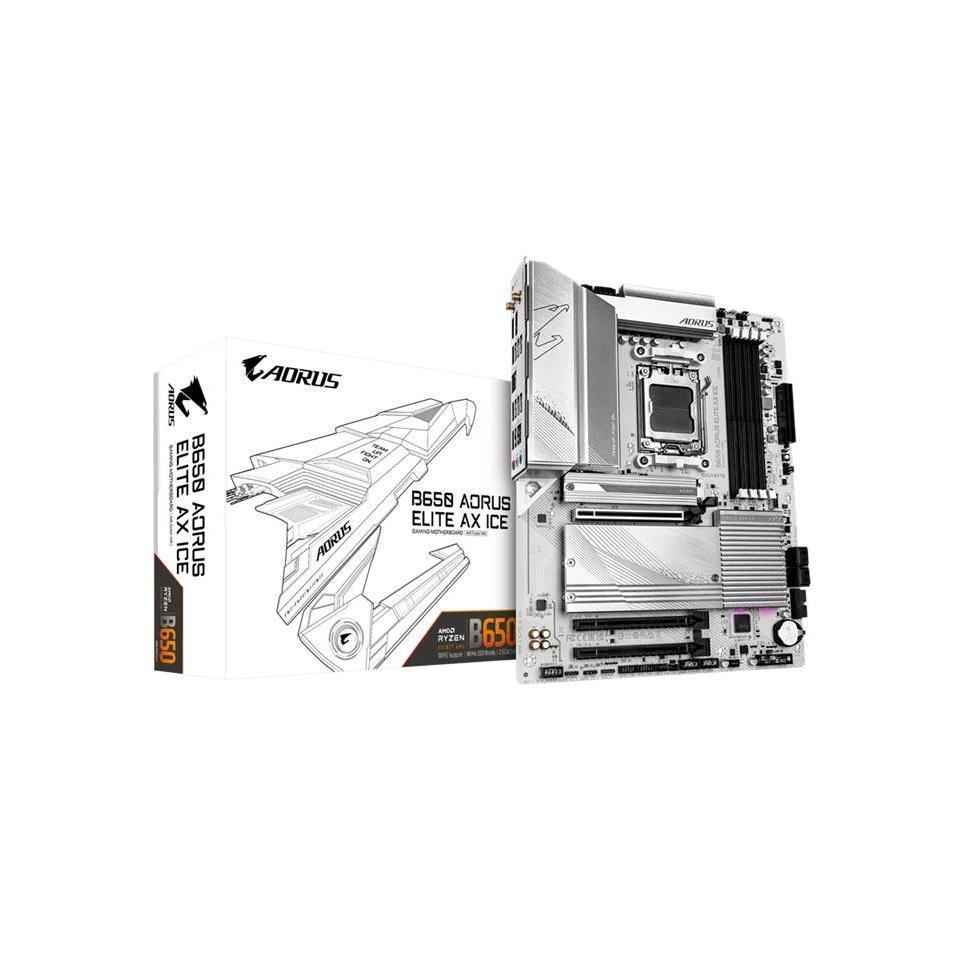

Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard DDR5 PCIe x16 M.2 SATA 6 USB 3.2 USB-C

The Gigabyte B650 AORUS ELITE AX ICE is an AM5 ATX motherboard designed for AMD Ryzen™ 7000 Series processors. It supports up to 192GB of DDR5 memory across four DIMM slots and features robust connectivity options.

Display

• 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz (DisplayPort 1.4, HDR)
• 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3)

Performance

• Dual channel memory architecture with support for non-ECC Un-buffered DIMM modules and AMD EXPO™/XMP profiles

Storage

• 1 x M.2 PCIe 5.0 connector (x4/x2)
• 2 x M.2 PCIe 4.0 connectors (x4/x2)
• 4 x SATA 6Gb/s connectors supporting RAID 0, 1, and 10 for both NVMe SSDs and SATA storage devices

Connectivity

• 1 x USB Type-C® port on the back panel with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 4 x USB 2.0/1.1 ports on the back panel
