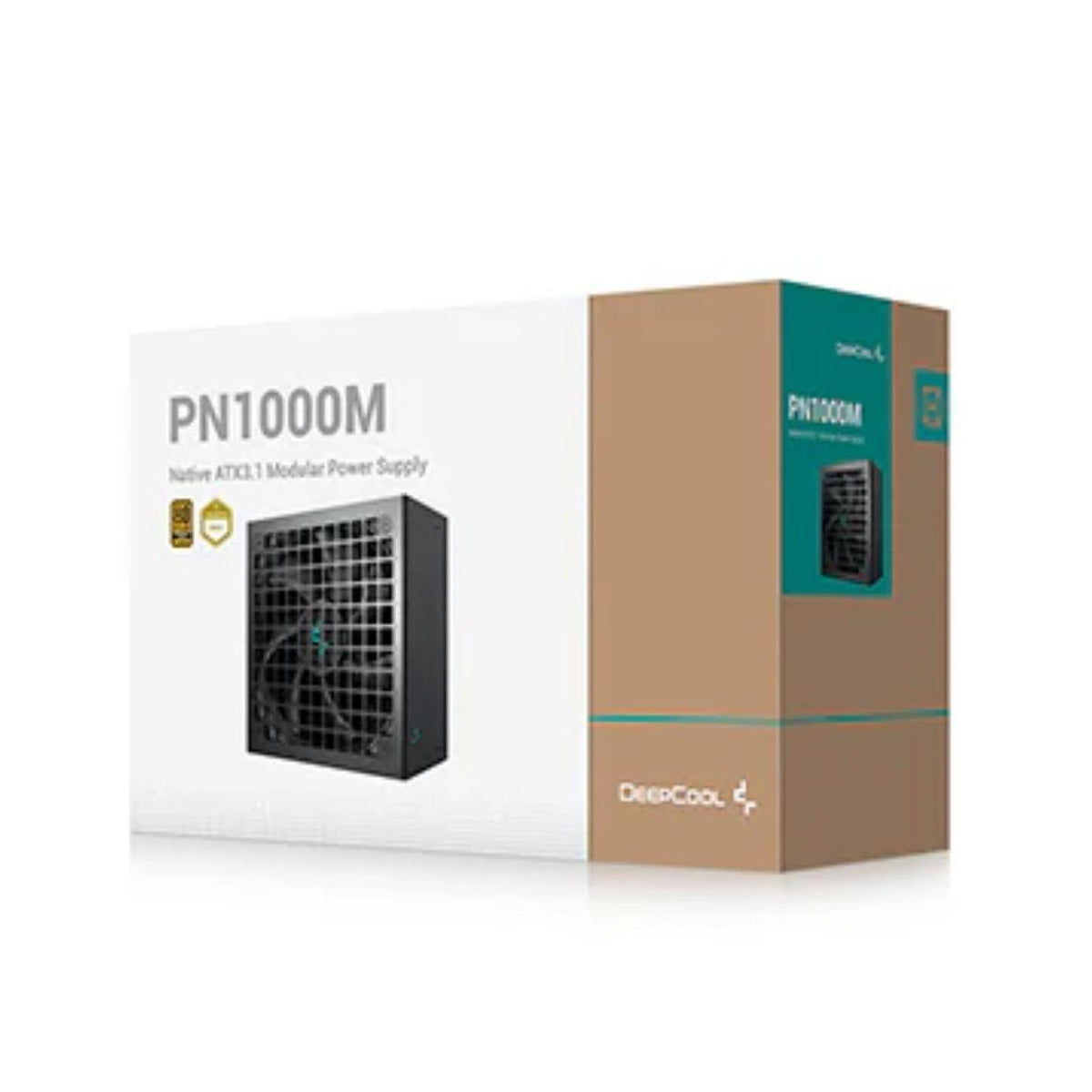

DeepCool PN1000M Gamer Storm 80+ Gold Black Fully Modular Power Supply 135mm
Regular price
$249.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (21)
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | AC-powered |
|---|---|
| Power Supply Form Factor | ATX12V, Other |
| Power Supply Modularity | Fully modular |
| 80 Plus Efficiency Rating | 80 Plus Gold |
Case & Build
| Material | Metal |
|---|
Dimensions
| Length | 302 mm |
|---|---|
| Width | 196 mm |
| Height | 114 mm |
Other
| Colour | Gold, Black |
|---|
Product Details
Product Details
The DeepCool PN1000M is a high-performance power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. It features dedicated 12V-2x6 and EPS/PCIe ports, ensuring stable power delivery for modern high-power components.
Key Features
- FUTURE PROOF: Provides twice the total system power for 0.1 ms to handle random power spikes effectively.
- POWER YOU CAN TRUST: Utilises a main Japanese electrolytic capacitor, active PFC, half-bridge SRC LLC topology, and DC-to-DC conversion for reliable performance.
Power Delivery
- 12V-2x6 Cable: High-grade 105C-resistant 16AWG copper-core cable providing up to 600W for modern GPUs.
- Total Power Output: 1000W
Technical Specifications
- Type: ATX12V V3.1
- Fan Size: 135mm
- Fan Bearing: FDB (Fluid Dynamic Bearing)
- Hold Up Time: ≥16ms under an 80% load
- Efficiency: ≥90% under typical load (50% loading)
- Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
- Operation Temperature: 0 - 40℃
- Regulatory Compliance: CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS
- ErP Regulation: ErP 2014
- Mtbf: 100,000 Hours
Dimensions
- Product Dimensions: 150×150×86mm (W x L x H)
Environmental Protection
- Environment Protection: WEEE/中国 RoHS/Triman/P65
Warranty
Warranty
Manufacturer warranty 120 Months
