Deepcool

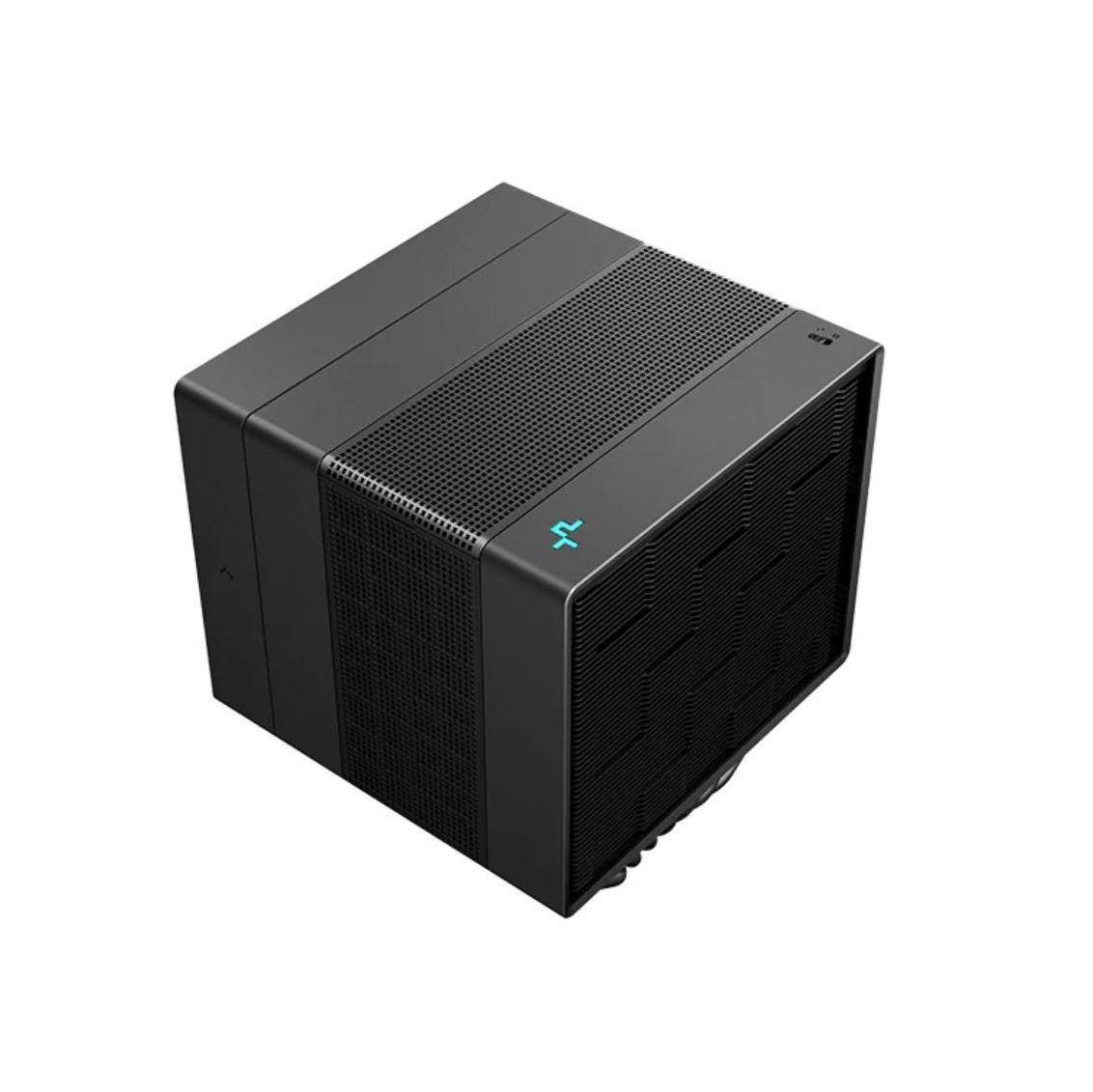

DeepCool ASSASSIN IV Premium CPU Air Cooler Fluid Dynamic Bearing Intel LGA20...
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 246 mm |
|---|---|
| Width | 190 mm |
| Height | 218 mm |
Product Details
Product Details
The DeepCool Assassin IV is a powerful and efficient air-cooled ceiling cooler designed for high-performance cooling in various CPU socket types. It offers improved performance compared to previous generations and features quick installation with a magnetic top cover and unique fan snap-on structure.
Performance
- Fan Speed (Performance Mode): 500~1700 RPM±10%
- Fan Airflow (Performance Mode): 79.1 CFM / 58.06 CFM
- Fan Air Pressure (Performance Mode): 2.44 mmAq / 2.1 mmAq
- Overall Noise (Performance Mode): ≤29.3 dB(A)
- Fan Speed (Quiet Mode): 500~1350 RPM±10%
- Fan Airflow (Quiet Mode): 63.76 CFM / 46.75 CFM
- Fan Air Pressure (Quiet Mode): 1.58 mmAq / 1.35 mmAq
- Overall Noise (Quiet Mode): ≤22.6 dB(A)
Specifications
- Product Dimensions: 144×147×164 mm (L×W×H)
- Heatsink Dimensions: 140×110×160 mm (L×W×H)
- Net Weight: 1575 g
- Heatpipe: Ø6 mm × 7 pcs
- Fan Dimensions: 140×140×25 mm / 120×120×25 mm (L×W×H)
- Fan Connector: 4-pin PWM
- Bearing Type: Fluid Dynamic Bearing
- Motor Type: 6-Pole Fan Motor
- Fan Rated Voltage: 12 VDC
- Fan Rated Current: 0.1 A / 0.07 A
- Fan Power Consumption: 1.2 W / 0.84 W
- Rated Voltage: 12 VDC
- Power Consumption (Performance Mode): 2.88 W
- Power Consumption (Quiet Mode): 1.56 W
The DeepCool Assassin IV is compatible with Intel LGA2066, 2011-v3, 2011, 1700, 1200, 1151, 1150, and 1155 sockets as well as AMD AM5 and AM4 sockets.
Warranty
Warranty
Manufacturer warranty 72 Months
