Deepcool
DeepCool AN600 Top Flow Low Profile Air Cooler 180W Cooling Power 6 Heat Pipe...
Available in stock (112)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 152 mm |
|---|---|
| Width | 152 mm |
| Height | 122 mm |
Product Details
Product Details

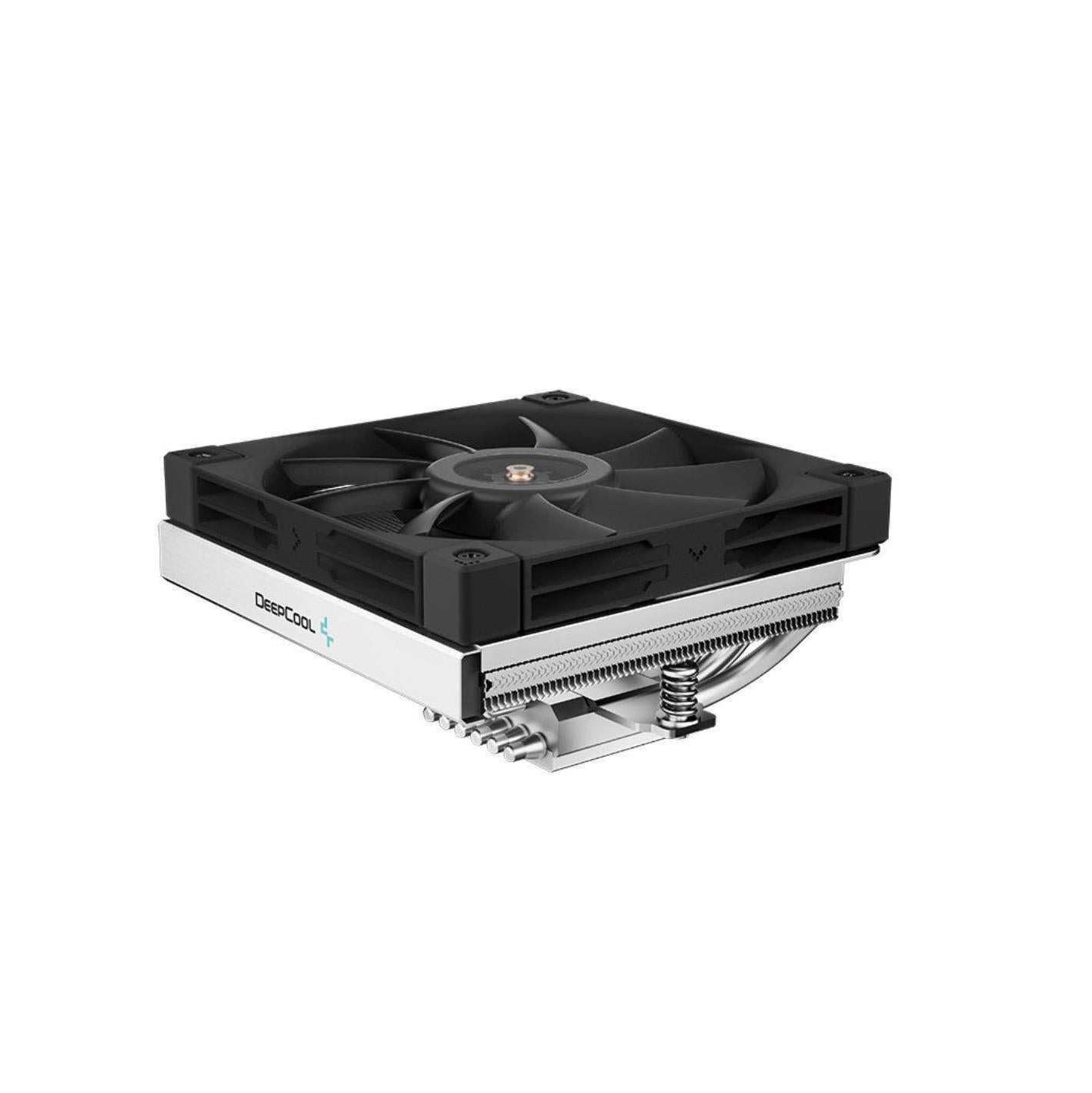

The DeepCool AN600 is a low-profile CPU cooler designed for efficient cooling in compact builds. It provides up to 180W of cooling power and features an overhanging design that actively cools RAM modules up to 40mm tall, making it ideal for ITX motherboards.
Cooling
- 180W cooling capacity
- 6 heat pipes with balanced two-way heat pipe technology
- Full metal mounting bracket
Fan Specifications
- Type: FT1215 High Performance FDB PWM Fan
- Dimensions: 120×120×15 mm (L×W×H)
- Speed Range: 500~1850 RPM±10%
- Airflow: 61.56 CFM
- Air Pressure: 1.97 mmAq
- Noise Level: ≤24.4 dB(A)
- Speed Range (with LSP): 500~1250 RPM±10%
- Airflow (with LSP): 41.51 CFM
- Air Pressure (with LSP): 1.19 mmAq
- Noise Level (with LSP): ≤20 dB(A)
Compatibility and Dimensions
- Motherboard Compatibility: Full ITX compatibility for Intel LGA1700/1200/1151/1150/1155 and AMD AM5/AM4 sockets
- Cooler Dimensions: 122×120×67 mm (L×W×H)
- Heatsink Dimensions: 121×120×52 mm (L×W×H)
- Net Weight: 628 g
Fan Details
- Bearing Type: Fluid Dynamic Bearing
- Rated Voltage: 12 VDC
- Rated Current: 0.27 A
- Power Consumption: 3.24 W
- Fan Connector: 4-pin PWM
- LED Type: White LED
The AN600 includes a low noise adapter cable and offers a quick installation process for easy setup.
Warranty
Warranty
Manufacturer warranty 36 Months
