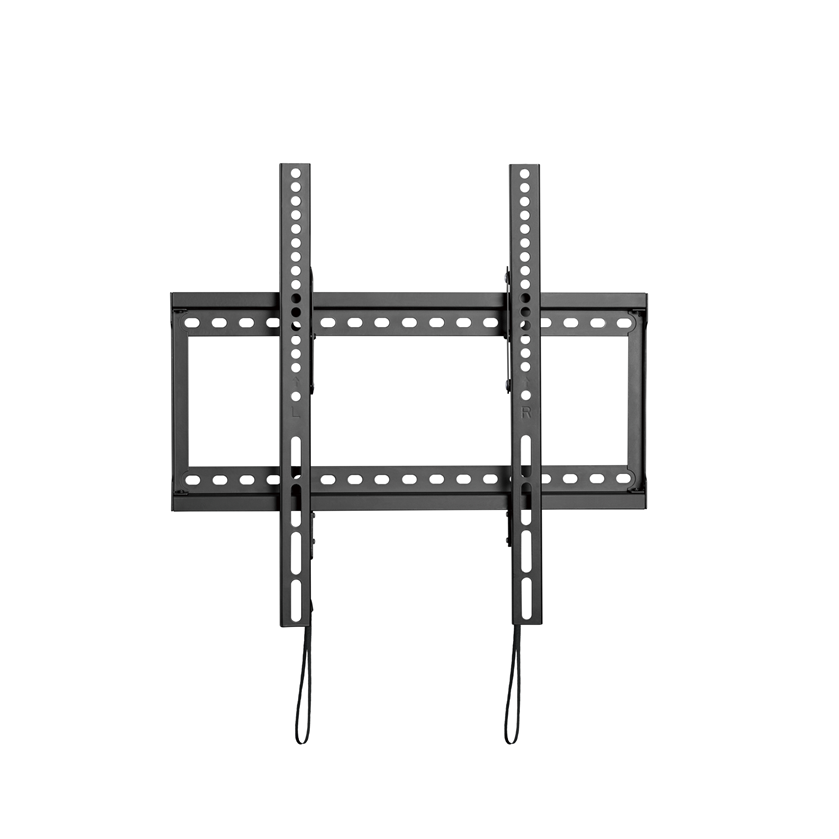

Brateck Tilt TV Wall Mount 32-70" 75KG VESA 50x50-200x400 Black

The Brateck Tilt TV Wall Mount is designed for TVs ranging from 32" to 70", with a weight capacity of up to 75kg (165lbs). This mount features an automatic spring lock system and quick release cords, making it easy to install and remove your television. The open architecture design provides better ventilation and easier access to wires.

Display

• Fits screen size: 32"-70"
• Fits curved TVs: Yes

Performance

• Tilt range: 0°~-8°
• Mounting hole pattern: VESA Universal
• VESA compatible patterns: 50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,300x200,200x400,400x200,300x300,400x300,350x350,400x400
• Max. mounting hole: 400x400
• Strength tested: 3 times approved profile of 37mm (1.5")

Material and Finish

• Material: Steel metal sheet
• Metal thickness: Bracket arm THK=1.5mm cold-rolled sheet, Wall plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet, Wall Plate THK=0.059" cold-rolled sheet)
• Surface finish: Powder coating
• Colour: Fine texture black

Dimensions and Installation

• Dimensions: 37x438x420mm (1.5"x17.2"x16.5")
• Installation: Solid wall, double stud (406mm) panel type: detachable panel wall plate type: fixed wall plate direction indicator: yes

Packaging and Accessories

• Accessory kit package: Compartment polybag
