Brateck

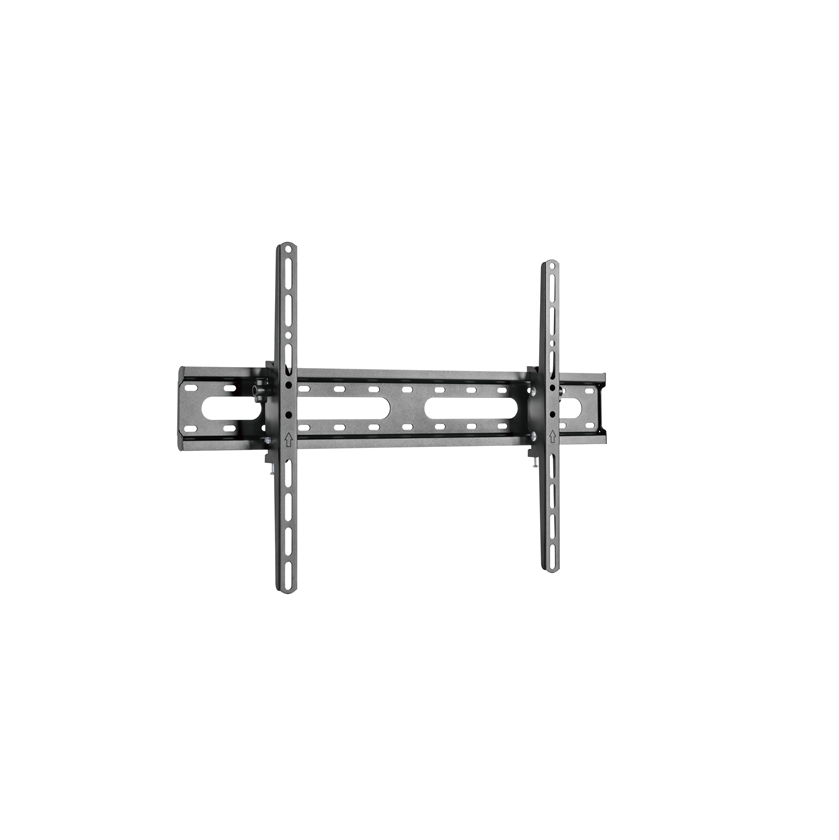

Brateck KL31-46T Super Economy Tilt TV Wall Mount 37-80" 45kg Black
Available in stock (134)
Couldn't load pickup availability
Specifications
Specifications
Display
| VESA Mounting Pattern | 200 x 100 mm, 400 x 200 mm, 300 x 300 mm, 400 x 400 mm |
|---|
Case & Build
| Material | Steel, Plastic |
|---|
Dimensions
| Length | 652 mm |
|---|---|
| Width | 105 mm |
| Height | 53 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details
The Brateck KL31-46T Super Economy Tilt TV Wall Mount is designed for screens ranging from 37” to 80”, with a weight capacity of up to 45 kg (99 lbs). It features easy-grip knobs for quick tilting adjustments and security screws to hold the TV securely. The mount is made of steel and plastic, with both bracket arm and wall plate thicknesses at 1.4 mm cold-rolled sheet.
Display
- Fits screen sizes: 37” - 80”
- VESA compatible patterns: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
- Max. mounting hole: 600x400
- Fits curved TVs: Yes
Performance
- Tilt range: +12° to -12°
- Panel type: Detachable panel
- Wall plate type: Fixed wall plate
- Approved profile: 53 mm (2.1”)
- Installation: Solid wall, double stud (406mm/450mm/600mm)
Connectivity and Management
- Cable management: No
- Bubble level: Hook-on bubble level included in components package
- Direction indicator: Yes
Security Features
- Anti-theft: No
- Security screws: Included to hold TV securely to the wall plate
Mechanical Details
- Material: Steel, plastic
- Metal sheet thickness: Bracket arm THK=1.4 mm cold-rolled sheet, Wall Plate THK=1.4 mm cold-rolled sheet (0.055” each)
- Surface finish: Powder coating
- Colour: Fine texture black
- Dimensions: 53x635x420mm (2.1"x25"x16.5")
Warranty
Warranty
Manufacturer warranty 36 Months
