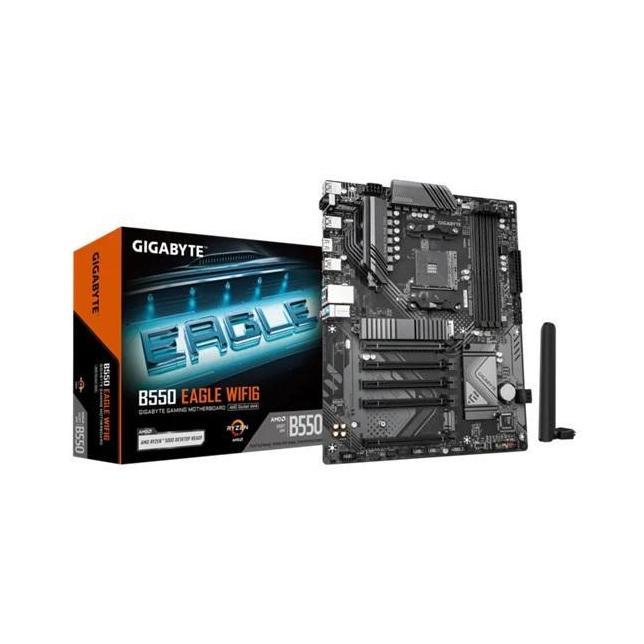

B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support Ryzen 3000–5000 CPUs DD...

The Gigabyte B550 EAGLE WIFI6 is a high-performance ATX motherboard powered by the AMD B550 chipset, designed for compatibility with AMD Ryzen™ processors ranging from Ryzen 3000 to Ryzen 5000 series. It supports up to 128GB of DDR4 memory and features PCIe 4.0 capabilities.

Display

• HDMI 2.1 port supporting up to 4K@60Hz resolution

Performance

• Socket AM4 for Ryzen 3000, 3000G, 4000G, 5000, and 5000G CPUs
• XMP support for memory overclocking
• PCIe 4.0 x16 slot (Ryzen 3000/5000) or PCIe 3.0 x16 slot (G-Series)
• Four additional PCIe 3.0 x1 slots

Storage

• Dual M.2 slots supporting PCIe 4.0/3.0 and SATA interfaces, depending on CPU support
• Four SATA 6Gb/s ports
• RAID modes: RAID 0 / 1 / 10 (NVMe/SATA)

Connectivity

• Realtek Gigabit LAN
• Wi-Fi 6 and Bluetooth 5.3

Audio

• Realtek HD Audio with up to 7.1-channel output

USB

• USB-C (rear header)
• Multiple USB 3.2 Gen 2 and Gen 1 ports
• Several USB 2.0 ports

Internal Headers

• 24-pin ATX power connector, 8-pin CPU power connector
• CPU fan and pump headers, three system fan headers
• RGB/ARGB headers
• TPM header, Clear CMOS jumper

I/O Panel

• HDMI port
• USB-C, USB 3.2, and USB 2.0 ports
• RJ-45 LAN connector
• Audio jacks
• Q-Flash Plus button for BIOS updates without CPU installation

Bios & OS Support

• AMI UEFI, 128 Mbit flash memory
• Supports Windows 10 and 11 (64-bit)

The Gigabyte B550 EAGLE WIFI6 motherboard measures 30.5 × 24.4 cm in size.
