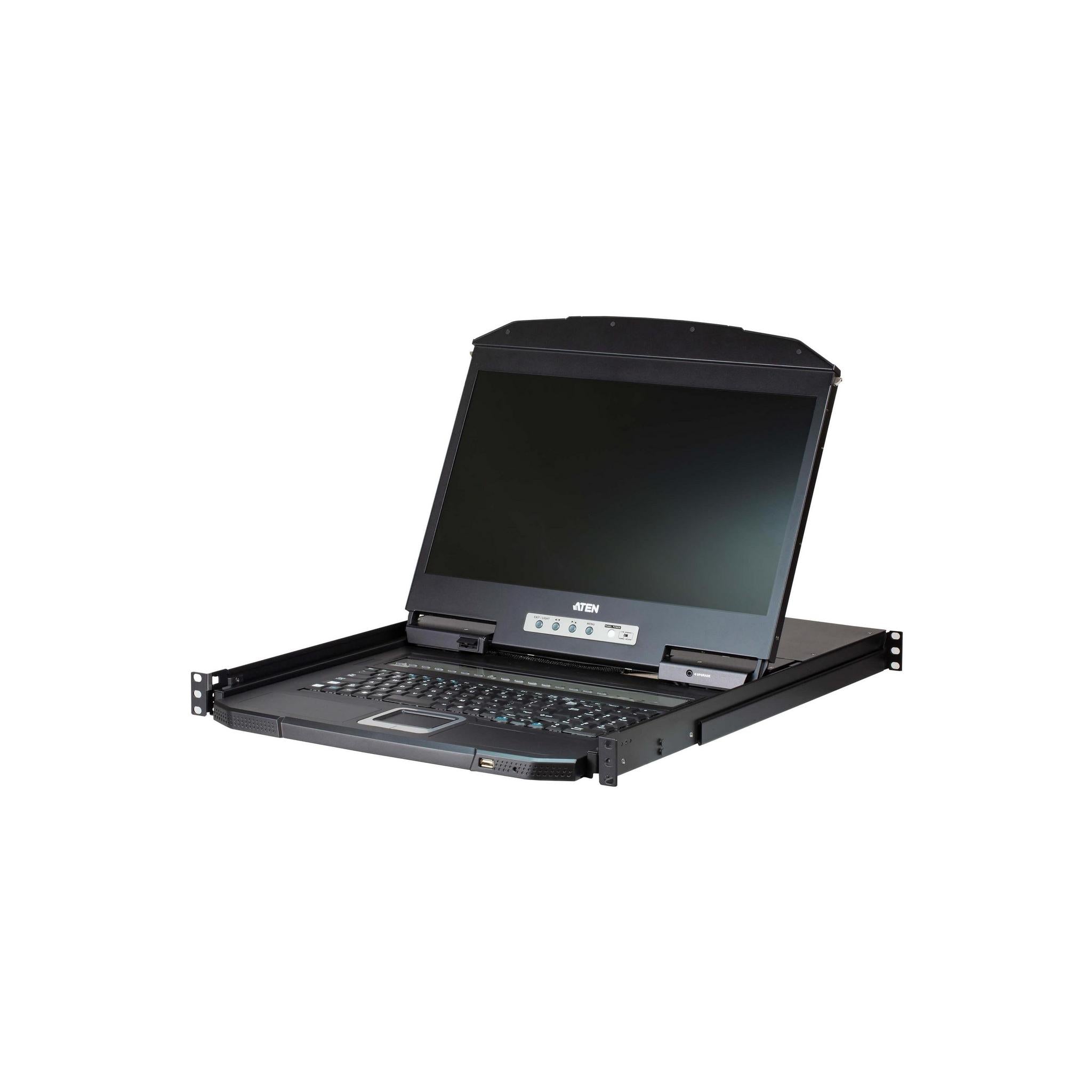

Aten Rackmount KVM Switch 8 Port VGA 18.5" LCD Display

The Aten CL3108NX is a versatile and space-saving 8-port KVM switch designed for rackmount installations. It features an integrated 18.5" LCD display with LED backlighting and supports resolutions up to 1920 × 1200 @ 60 Hz, making it ideal for managing multiple computers from a single console.

Display

• Size: 18.5"
• Type: LCD with LED backlighting
• Resolution: 1366 x 768 @ 60 Hz, DDC2B
• Scan Interval: 1-255 seconds

Performance

• Maximum Computers Supported (Direct): 8
• Maximum Computers Supported (Cascade): Up to 128 computers via CL3108NX or up to 256 computers via CL3116
• Port Selection: OSD, Hotkey, Pushbutton
• Keyboard and Mouse Emulation: PS/2 and USB

Connectivity

• KVM Ports: 8 x SPHD Female (Yellow)
• Firmware Upgrade: 1 x 3.5mm Audio Jack Female (Black)
• External Mouse Port: 1 x USB Type A Female (Front)
• Cable Included: 2 x 1.8m VGA USB KVM Cable

Power and Physical Properties

• Input Power Rating: 100–240 V AC, 50-60 Hz, 1 A
• Power Consumption:
  • AC110V: 14.1W (70BTU)
  • AC220V: 14.9W (74BTU)
• Housing: Metal + Plastic
• Rail Type: Single Rail
• Weight: 10.50 kg (23.13 lb)
• Dimensions:
  • L x W x H: 48.06 x 63.17 x 4.28 cm
  • Body Dimensions: 44.92 x 58.4 x 4.28 cm
