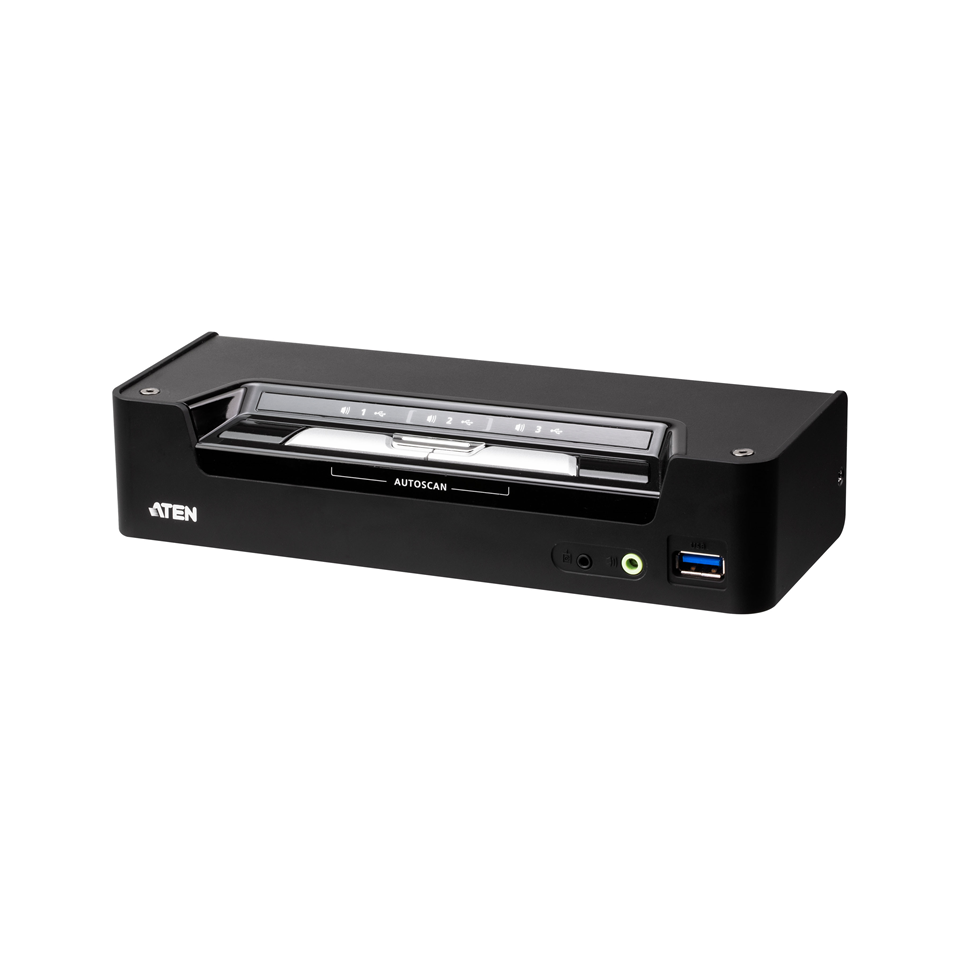

Aten 3-Port USB-C DisplayPort KVMP Switch 45W PD 3.0
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 206.3 mm |
|---|---|
| Width | 75.4 mm |
| Height | 44 mm |
Product Details
Product Details
The ATEN CS1953 is a hybrid KVMP™ Switch that integrates USB-C device and DisplayPort PC into a desktop workstation. It supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz) and provides USB Power Delivery 3.0 for USB-C device charging up to 45W.
Display
- Supports DisplayPort Alternate Mode (DP Alt Mode)
- Complies with DisplayPort 1.2 standard
- HDCP 1.4 compliant
- Supports HD Audio
- Supports DisplayPort Dual-Mode technology (DP++) for conversion to HDMI or DVI
Performance
- USB 3.1 Gen 1 data transfer speed up to SuperSpeed 5 Gbps
- Firmware upgradeable
- Built-in 2-port USB hub with SuperSpeed 5 Gbps data transfer rates
Connectivity and Control
- Computer selection via pushbuttons, hotkeys, mouse, and remote port selector
- Independent switching of KVM, USB peripheral, and audio focus
- Bus-powered design
The CS1953 allows users to control two DisplayPort computers, one USB-C device, and share two USB peripherals with a single keyboard and mouse.
Warranty
Warranty
Manufacturer warranty 12 Months
