Aten
Aten 16-Port USB HDMI Single Rail LCD KVM over IP Switch 1U 18.5" 1920x1080
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 720 mm |
|---|---|
| Width | 670 mm |
| Height | 140 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details

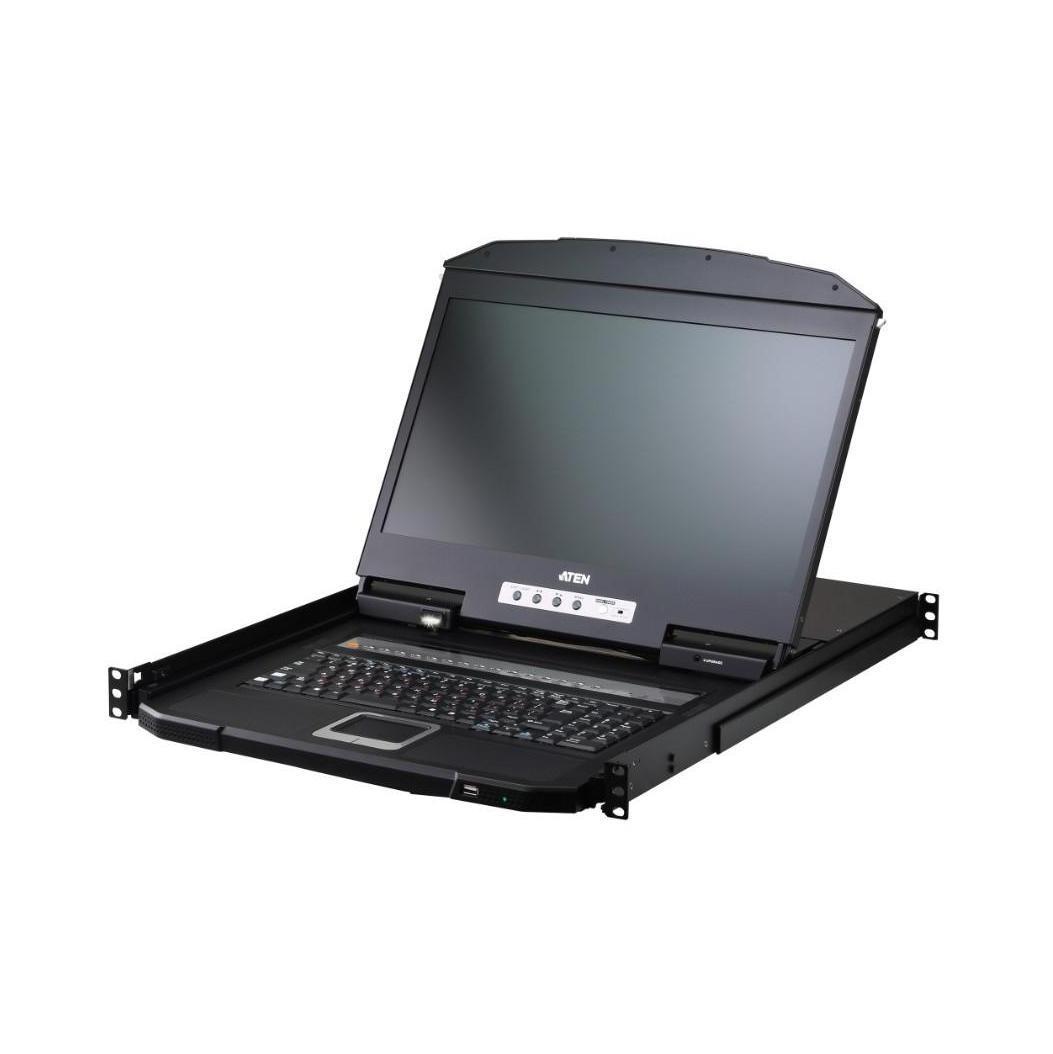

The ATEN CL3716 is a space-efficient 1U single-rail LCD KVM switch designed for environments where rack space is limited, such as control rooms across various industries. It integrates an 18.5" LED-backlit widescreen monitor, full keyboard, and touchpad into a short-depth sliding housing to provide reliable local access while maximising valuable rack space.
Display
- CL3716NW: 18.5" LCD screen with Full HD resolution of 1920 x 1080
- CL3716NX: 18.5" LCD screen with resolution of 1366 x 768
Performance
- Crisp video resolutions up to 1920 x 1080 @ 60 Hz (CL3716NW) or 1366 x 768 @ 60 Hz (CL3716NX)
- Broadcast Mode for simultaneous commands to multiple computers
- Auto Scan Mode for continuous monitoring of selected systems
Connectivity
- Direct USB and HDMI connections to up to 16 computers
- Cascading support up to two levels, enabling control of up to 256 computers
- External console output via USB and HDMI for connection to a larger monitor or KVM extender
Management
- Front-panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) for device management
- Password protection with two-level security
- Dedicated, hot-pluggable USB mouse port (HID-only) on the front panel for quick peripheral swaps
Warranty
Warranty
Manufacturer warranty 24 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
Read our warranty policyYour payment information is processed securely. We do not store credit card details nor have access to your credit card information.
