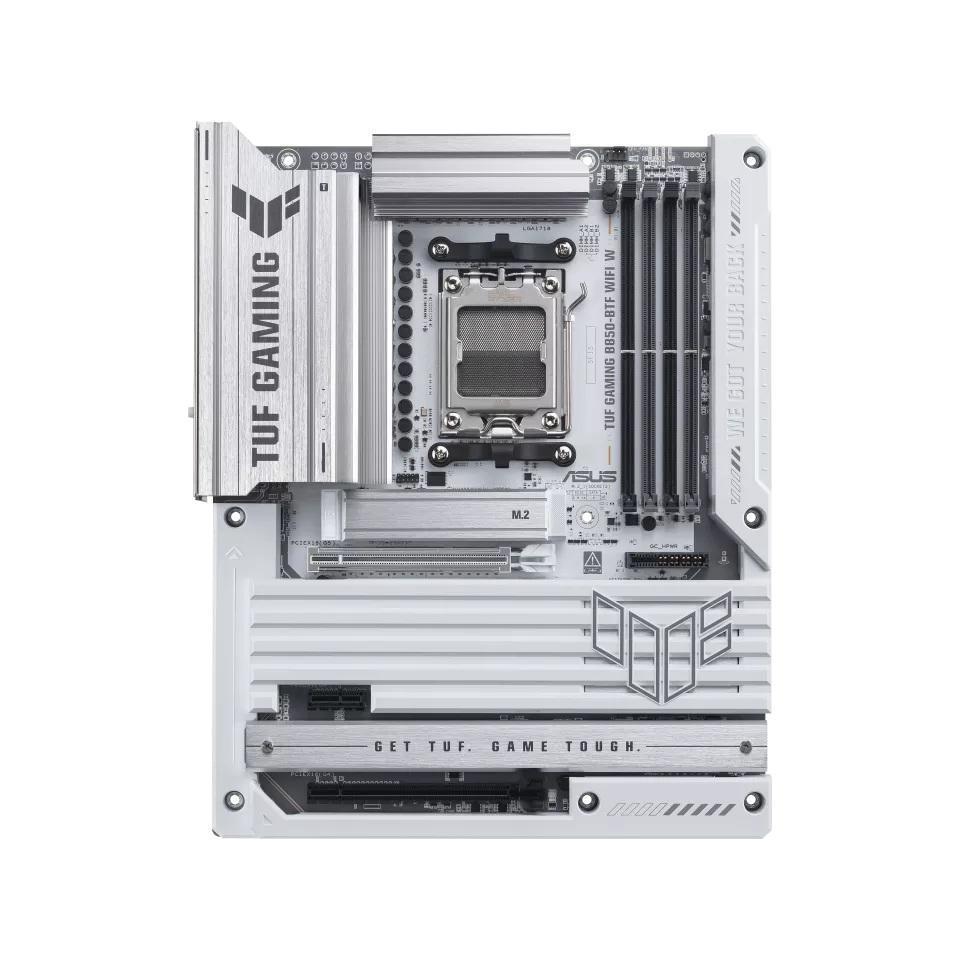

ASUS TUF GAMING B850-BTF WIFI DDR5 256GB PCIe 5.0 3x M.2 Wi-Fi 7 ATX Motherboard

The ASUS TUF GAMING B850-BTF WIFI is a high-performance motherboard designed for advanced DIY PC gamers and enthusiasts. It features cutting-edge technology to support the latest AMD Ryzen™ processors and offers robust connectivity options.

Socket

• AM5

CPU Support

• AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Chipset

• AMD B850 Chipset

Memory

• 4 x DIMM slots (up to 256GB)
• Supports DDR5 up to 8000+MT/s with Ryzen™ 9000, 8000, and 7000 Series Processors
• ECC and Non-ECC Un-buffered DIMM support
• Dual channel memory architecture
• Supports AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP)

Graphics

• 1 x DisplayPort (supports up to 8K@30Hz)
• 1 x HDMI™ port (supports 4K@60Hz)

Expansion Slots

• 1 x PCIe 5.0 x16 slot for Ryzen™ 9000 and 7000 Series Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) for Ryzen™ 8000 Series Processors
• 1 x PCIe 4.0 x1 slot

Storage

• Total of 3 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M, type 2280) supports PCIe 5.0 or 4.0 x4 mode depending on the CPU series
• M.2_2 slot (Key M, type 2242/2260/2280/22110) supports PCIe 4.0 x4/x2 mode
• M.2_3 slot (Key M, type 2280) supports PCIe 4.0 x4 mode and shares bandwidth with the PCIEX16(G4) slot

Connectivity

• Realtek 2.5Gb Ethernet TUF LANGuard
• Wi-Fi 7 (802.11be), 2x2 configuration, supports 2.4/5/6GHz frequency band with up to 2.9Gbps transfer rate
• Bluetooth® v5.4

BIOs and OS Support

• 256 Mb Flash ROM, UEFI AMI BIOS
• PXE, WOL by PME manageability
• Windows 11 operating system support

Form Factor

• ATX Form Factor (12 inch x 9.6 inch or 30.5 cm x 24.4 cm)
