ASUS
ASUS ROG STRIX Z890-E GAMING WIFI ATX DDR5 256GB 7x M.2 PCIe 5.0 WiFi 7
Available in stock (70)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | LGA 1851 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Chipset Family | Intel |
Expansion & Slots
| Expansion Slot Types | PCIe, M.2 |
|---|
Ports & Connectivity
| USB Connector Type | USB Type-A, USB Type-C |
|---|
Dimensions
| Length | 10 mm |
|---|---|
| Width | 10 mm |
| Height | 10 mm |
Product Details
Product Details

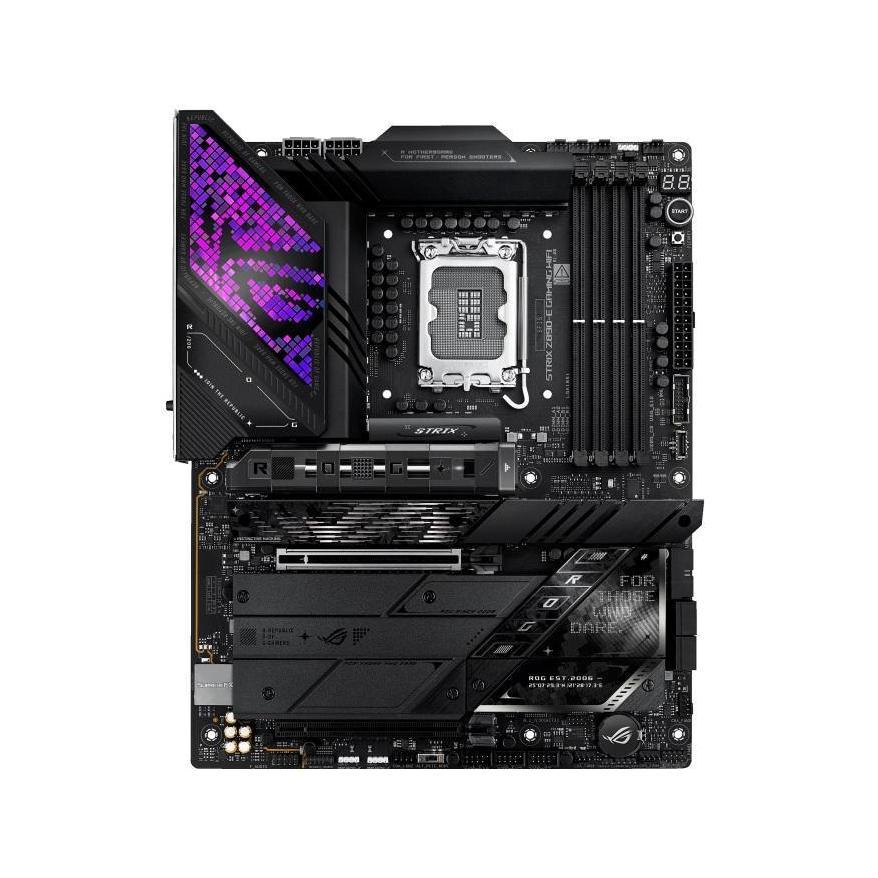

The ASUS ROG STRIX Z890-E GAMING WIFI is a high-performance motherboard designed for Intel Core Ultra processors (Series 2). It supports up to 256GB of DDR5 memory with speeds up to 9200+MT/s and features advanced memory technologies such as AEMP III, DIMM Flex NitroPath, and XMP support.
Display
- 1 x DisplayPort (supports max. 8K@60Hz)
- 1 x HDMI® port (supports max. 8K@60Hz)
- 2 x Intel Thunderbolt™ 4 ports (supports up to 8K@60Hz or 4K@60Hz dual display)
Performance
- Intel Z890 chipset
- 1 x PCIe 5.0 x16 slot (supports x16, x8/x4/x4 modes)
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- Dual Channel Memory Architecture
Storage
- Total of 7 x M.2 slots and 4 x SATA 6Gb/s ports
- M.2_1, M.2_3, M.2_4 slots support PCIe 5.0 x4 mode
- M.2_2, M.2_5, M.2_6 slots support PCIe 4.0 x4 mode
- M.2_7 slot supports PCIe 4.0 x4 SATA modes
Connectivity
- 1 x Realtek 5Gb Ethernet
- Wi-Fi 7 (802.11be) with 2x2 configuration, supporting 2.4/5/6GHz frequency band and up to 5.8Gbps transfer rate
- Bluetooth® v5.4
Bios & OS Support
- UEFI AMI BIOS with 256 Mb Flash ROM
- Supports Windows 11 (22H2 and later)
The motherboard measures 12 inches x 9.6 inches (30.5 cm x 24.4 cm) in ATX form factor.
