ASUS

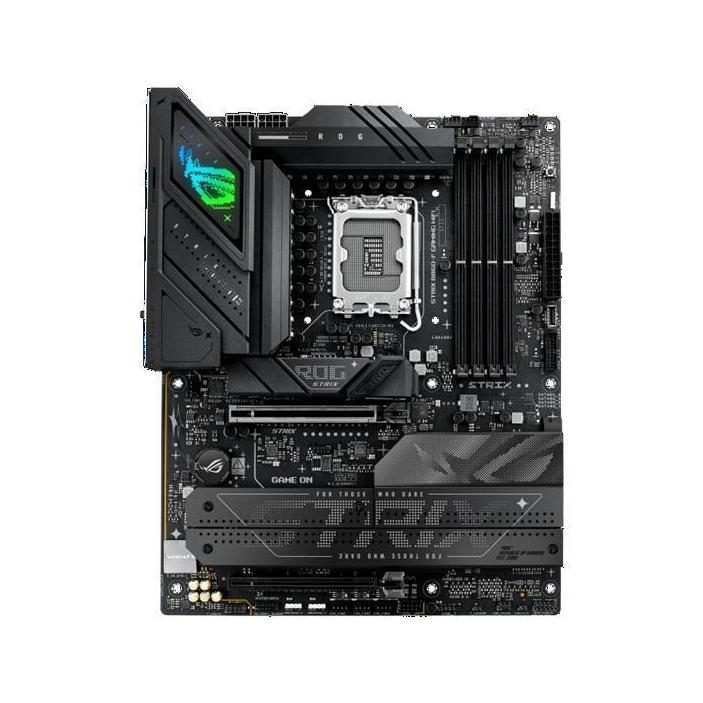

ASUS ROG STRIX B860-F GAMING WIFI DDR5 256GB 1x PCIe 5.0 4x M.2 WiFi 7 ATX Motherboard
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 358 mm |
|---|---|
| Width | 278 mm |
| Height | 72 mm |
Product Details
Product Details
The ASUS ROG STRIX B860-F GAMING WIFI is a high-performance motherboard designed for advanced gaming and AI applications. It features an Intel® Socket LGA1851 compatible with the latest Core™ Ultra processors, supporting advanced technologies such as Turbo Boost Technology 2.0 and XMP memory profiles.
Display
- 1 x DisplayPort (supports up to 8K@60Hz with DSC)
- 1 x HDMI port (supports up to 8K@60Hz with DSC)
Performance
- Intel® B860 chipset
- 4 x DIMM slots, max. 256GB DDR5 memory support
- Up to 9066MT/s (OC) data rate
- Dual channel memory architecture with AEMP III
Expansion Slots
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage
- 4 x M.2 slots supporting various modes of PCIe and SATA connections
- 4 x SATA 6Gb/s ports
Connectivity
- Thunderbolt™ 4 port (USB Type-C®) with DisplayPort and Thunderbolt video outputs
- 1 x Intel® 2.5Gb Ethernet
- WiFi 7 support
The motherboard also includes advanced features like Aura Sync RGB lighting, ASUS Enhanced Memory Profile III for optimal memory performance, and a robust BIOS with UEFI AMI.
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
